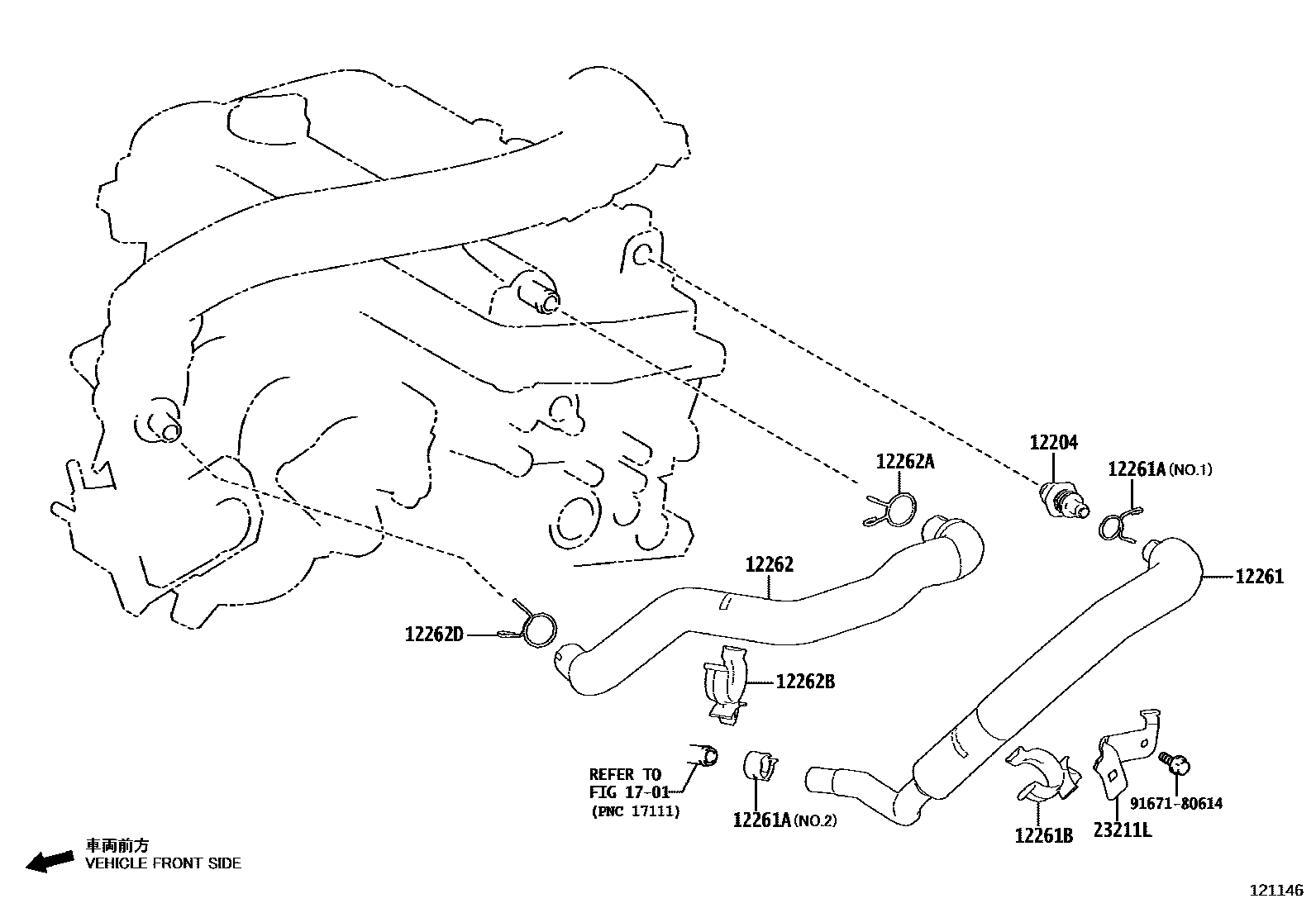

VENTILATION HOSE
12204VALVE SUB-ASSY, VENTILATION
12261HOSE, VENTILATION
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
12261BCLIP OR CLAMP(FOR VENTILATION HOSE)
12262HOSE, VENTILATION, NO.2
12262ACLIP(FOR VENTILATION HOSE NO.2)
12262BCLAMP(FOR VENTILATION HOSE)
12262DCLIP(FOR VENTILATION HOSE NO.2)
1701
23211LBRACKET(FOR VENTILATION HOSE CLAMP)
9167180614
main91671-80614
11 parts on this diagram · 1 diagram in section
