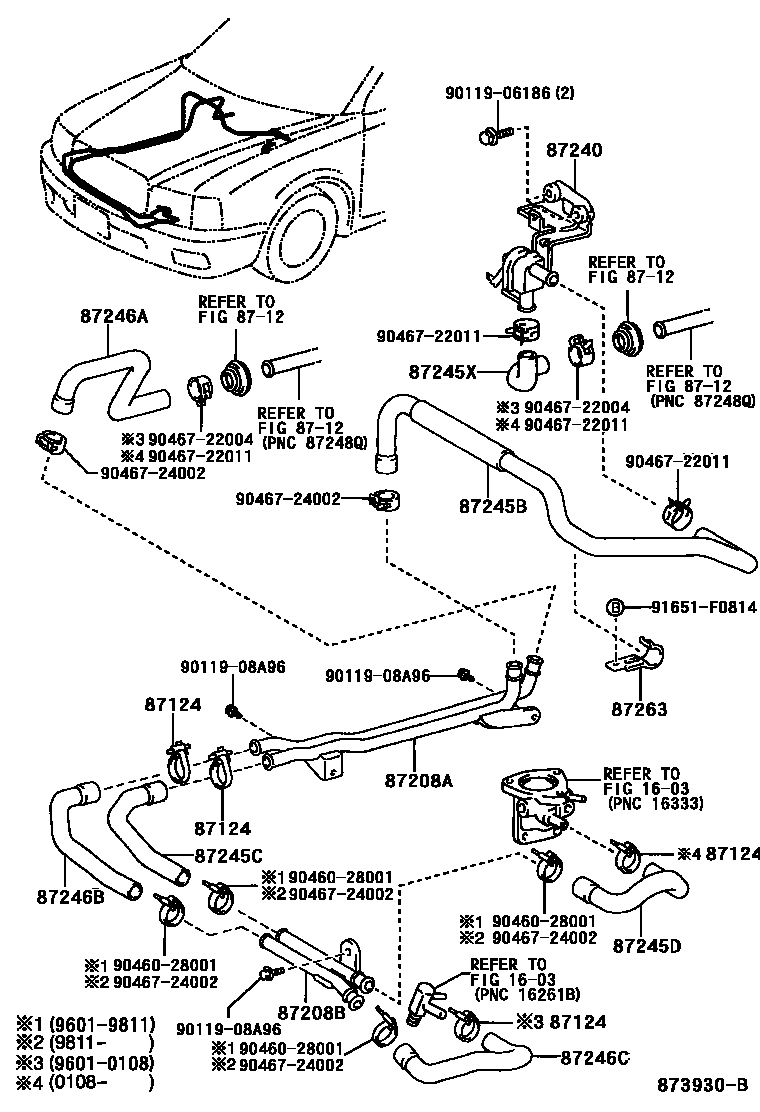

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

1603

8712

87124CLAMP, HEATER

main87124-28030iLXS1#199601-199811

main90467-22011iLXS1#199811-200607

87208APIPE SUB-ASSY, HEATER WATER, A

main87208-22211iLXS1#199601-200607

87208BPIPE SUB-ASSY, HEATER WATER, B

main87208-89144iLXS1#199601-200607

87240VALVE ASSY, HEATER WATER

main87240-43010iYXS10..4H199908-200504

sub87240-43011

main87240-43011iYXS10200505-200808

main87240-43020iLXS12199601-200607

87245BHOSE, HEATER WATER, INLET B

main87245-43020iYXS10..4H199908-200808

main87245-43050iLXS1#199601-200607

main87245-43160iTSS10200808

87245CHOSE, HEATER WATER ,INLET C

main87245-2A320iLXS1#199601-200607

87245DHOSE, HEATER WATER, INLET D

main87245-2A260iLXS12199601-200607

87245XHOSE, HEATER WATER

main87245-43070iYXS10199908-200808

main87245-43080iLXS12199601-200607

87246AHOSE, HEATER WATER, OUTLET A

main87207-43010iTSS10200808

main87245-2A400iLXS12199601-200607

main87245-43010iYXS10199908-200808

87246BHOSE, HEATER WATER, OUTLET B

main87245-2A330iLXS12199601-200607

87246CHOSE, HEATER WATER, OUTLET C

main87245-2A270iLXS1#199601-200607

87263BRACKET, HEATER WATER PIPE, NO.1

main87263-22110iLXS1#199601-200607

main87263-43010iTSS10200808

9011906186

main90119-06186

9011908A96

main90119-08A96

9046028001

main90460-28001

9046722004

main90467-22004

9046722011

main90467-22011

9046724002

main90467-24002

91651F0814

main91651-F0814

21 parts on this diagram · 3 diagrams in section
