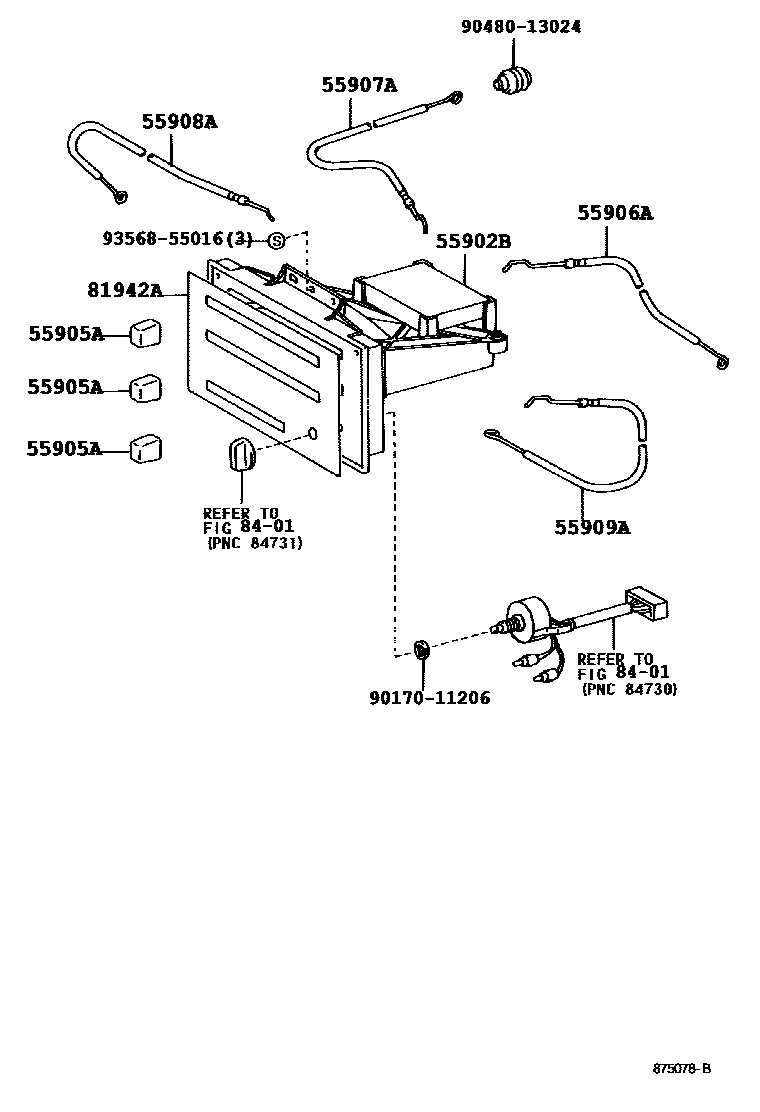

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL 0002 1AIR DUCT 0003 1SENSOR

55902BCONTROL SUB-ASSY, HEATER

main55902-43010iLXS1#,YXS10199601-200808

55905AKNOB, HEATER CONTROL

main55905-30170iLXS1#,YXS10199601-200808

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-43010iLXS1#,YXS10199601-200808

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-43010iLXS1#,YXS10199601-200808

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-43010iLXS1#,YXS10199601-200808

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-43010iYXS10..4HC199601-200808

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-43010iLXS1#,YXS10199601-200709

W(FRONT MANUAL A/C)

main81942-43010iTSS10200709-200808

main81942-43020iYXS10..4HC199601-200709

DEALER OPTION

8401

9017011206

main90170-11206

9048013024

main90480-13024

9356855016

main93568-55016

11 parts on this diagram · 3 diagrams in section
