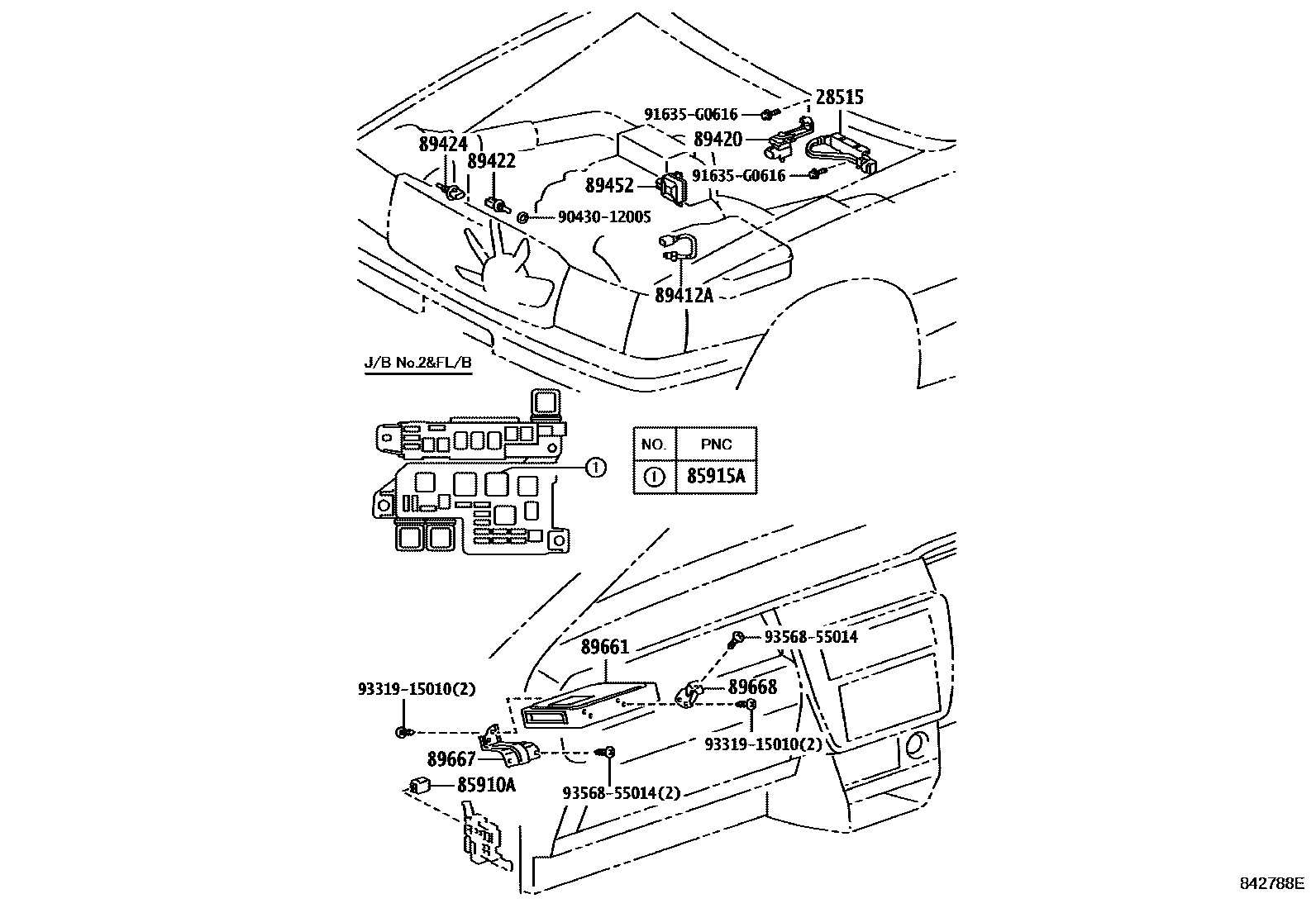

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

28515RESISTOR, SOLENOID

main28515-73040i3YPE..YXS10199908-200808

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02004iYXS10199908-200108

main90987-02027iYXS10..4H200108-200808

85915ARELAY, MAIN

main90987-02009iYXS10199908-200808

89412ASENSOR, E.G.R GAS TEMPERATURE

main89412-43010iYXS10..4H200108-200808

89420SENSOR ASSY, VACUUM

main89420-43020iYXS10199908-200808

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iYXS10199908-200808

main89422-33030iTSS10200808

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iYXS10199908-200808

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-30120iYXS10199908-200104

main89452-43010iYXS10200105-200808

89661COMPUTER, ENGINE CONTROL

main89661-43010iYXS10199908-200108

main89661-43060iYXS10200108-200202

sub89661-43061

main89661-43061iYXS10200202-200210

sub89661-43180

main89661-43062iYXS10200210-200305

sub89661-43063

main89661-43063iYXS10..4H200305-200406

main89661-43130iYXS10200406-200808

main89661-43150iTSS10200811-200909

P/N LABEL=8966143150

sub89661-43151

main89661-43151iTSS10200909-201008

P/N LABEL=8966143151

main89661-43240iTSS10200808-200810

sub89661-43241

main89661-43250iTSS10201008-201207

P/N LABEL=8966143250

main89661-43251iTSS10201207-201310

P/N LABEL=8966143251

main89661-43340iTSS10201310-201801

P/N LABEL=8966143340

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-43010iYXS10199908-200808

main89667-43050iTSS10200808

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-43010iYXS10199908-200808

main89668-43040iTSS10200808

9043012005

main90430-12005

91635G0616

main91635-G0616

9331915010

main93319-15010

9356855014

main93568-55014

15 parts on this diagram · 2 diagrams in section
