SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 0005 1ENGINE ROOM 0006 1COWL 0007 1INSTRUMENT PANEL 0008 1COMBINATION SWITCH & CONSOLE 0009 1FLOOR,ROOF,DOOR

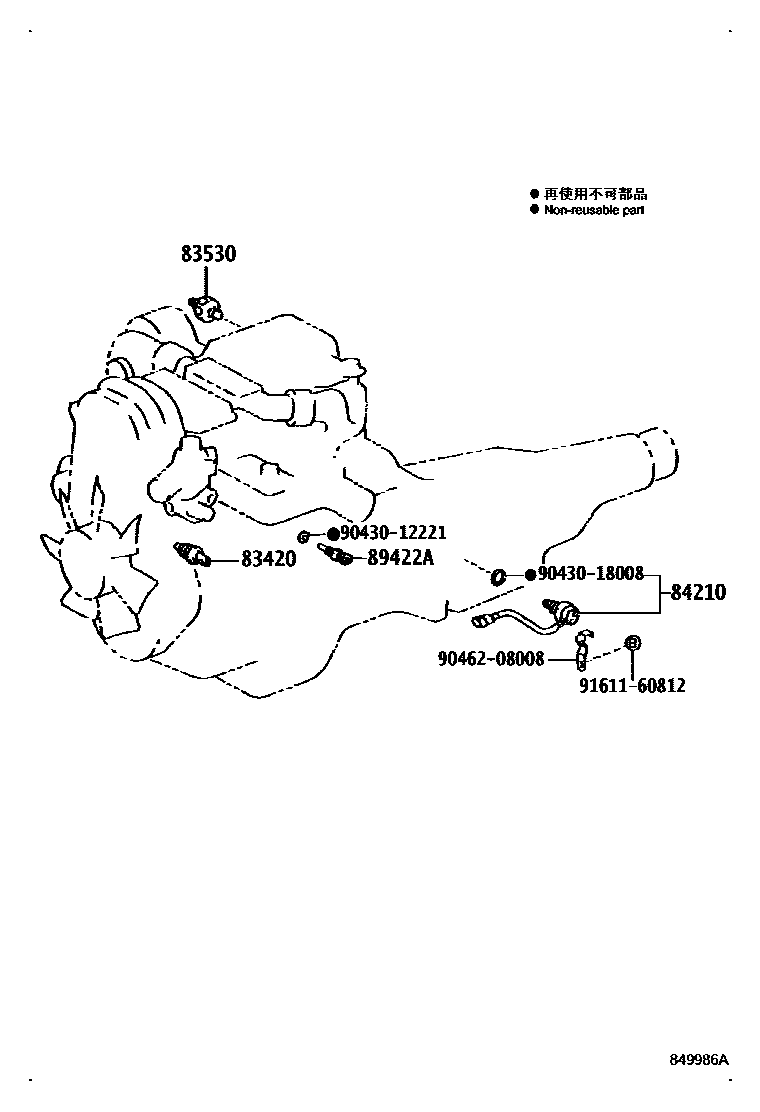

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iLXS1#,YXS10199601-200808

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iYXS10199908-201104

main83530-28020iTSS10201104

DENSO

main83530-30060iLXS1#199601-199803

sub83530-60030

main83530-60020iTSS10201104

YAZAKI

main83530-60030iLXS12199803-200607

84210SWITCH ASSY, BACK-UP LAMP

main84210-30060iLXS1#,YXS10..MTM199601-200607

89422ASENSOR, WATER TEMPERATURE

main89422-20010iLXS1#199601-200607

9043012221

main90430-12221

9043018008

main90430-18008

9046208008

main90462-08008

9161160812

main91611-60812

8 parts on this diagram · 9 diagrams in section
