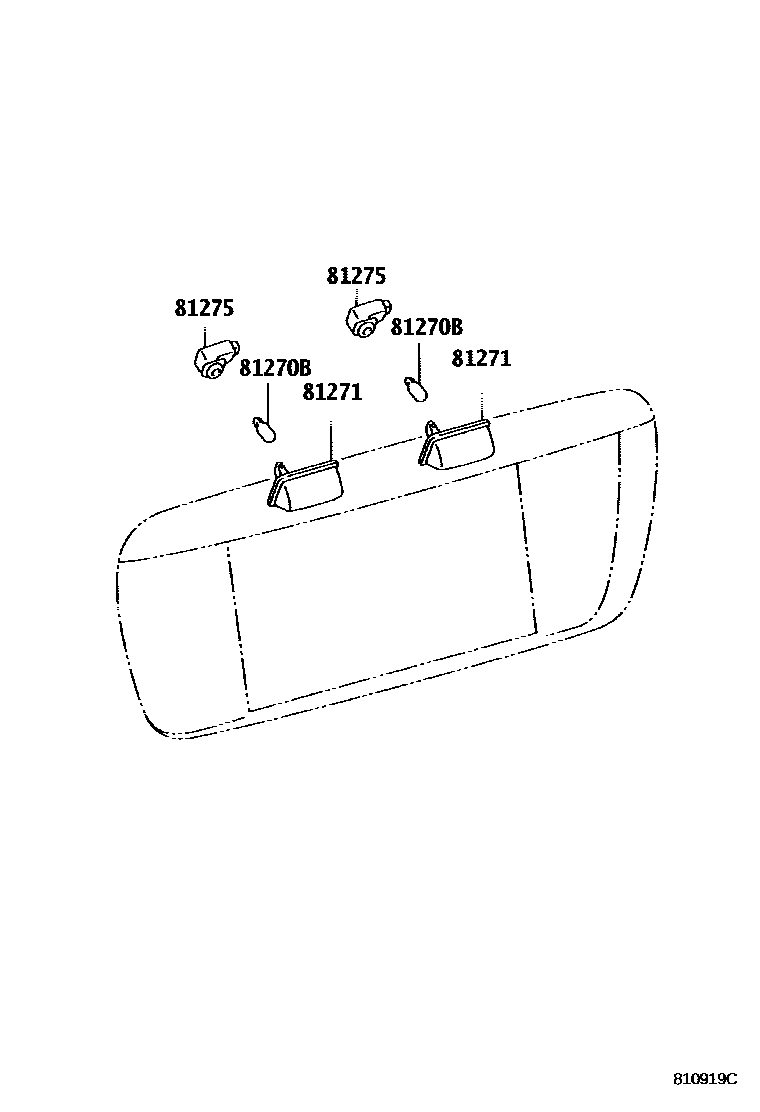

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050iLXS12,YXS10199601-200709

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-12501iLXS1#,YXS10199601-200705

RH

sub81271-12502

main81271-12502iYXS10200705-200709

RH

sub81271-12503

main81271-30270iTSS10,YXS10200709

main81691-12131iLXS12,YXS10199601-200709

LH

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-12500iLXS1#199601-199812

sub81275-12501

main81275-12501iLXS1#,YXS10199812-200709

main90075-99011iTSS10,YXS10200709

3 parts on this diagram · 2 diagrams in section
