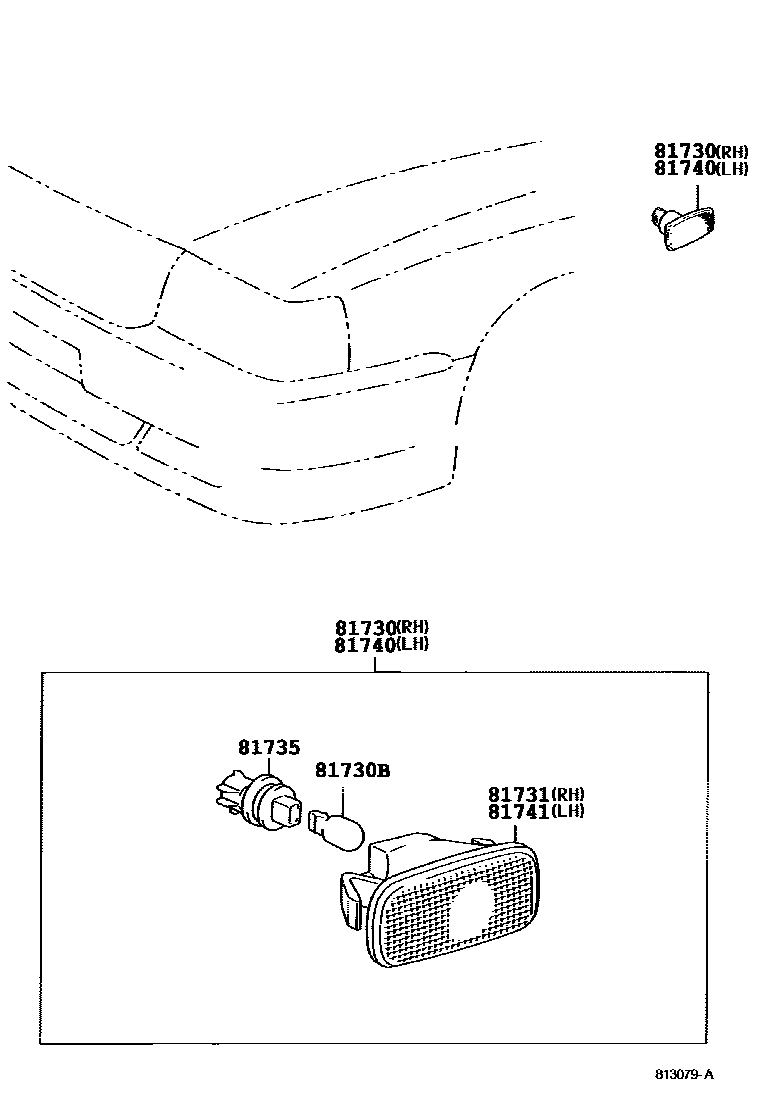

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-43010iLXS12,YXS10200406-200607

sub81730-53010

main81730-53011iYXS10200607-201211

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main99132-12050iLXS12200406-200709

12V 5W

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-43010iLXS12,YXS10200406-200607

main81731-53011iYXS10200607-200709

81735SOCKET AND WIRE, SIDE TURN SIGNAL LAMP

main90075-60001iLXS12200406-200709

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81730-43010iLXS12,YXS10200406-200607

sub81730-53010

main81730-53011iYXS10200607-201211

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81731-43010iLXS12,YXS10200406-200607

main81731-53011iYXS10200607-200709

6 parts on this diagram · 1 diagram in section
