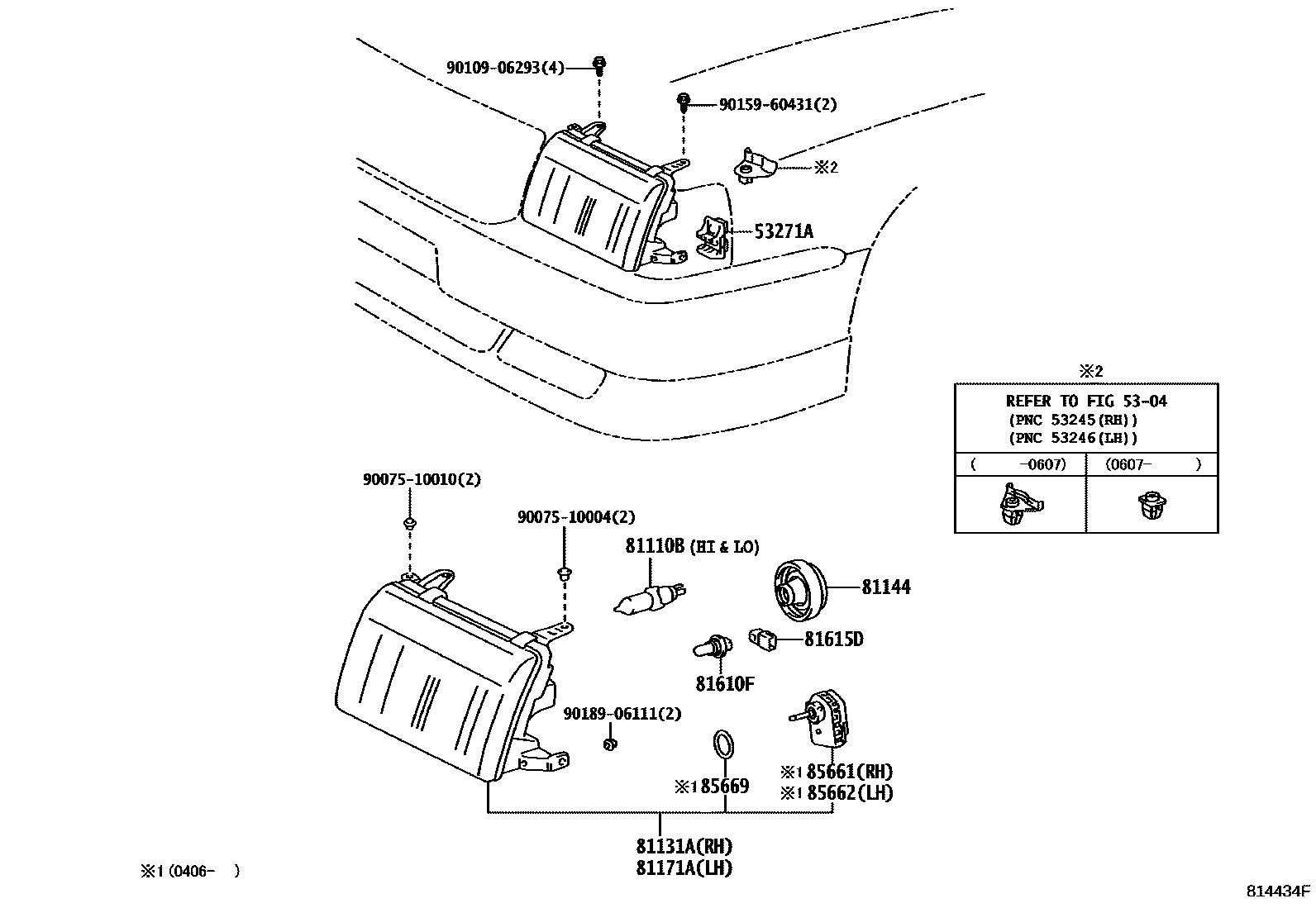

HEADLAMP

5304

53271ABRACKET, HEADLAMP MOUNTING

main53271-43010iLXS1#,YXS10199601-200709

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058iLXS12,YXS10200108-200709

12V 60/55W,HALOGEN

main90981-22004iLXS1#,YXS10199601-200108

12V 60/55W,*HAL *WH

sub90981-13055

81131AUNIT, HEADLAMP, RH

main81130-43010iLXS10199601-199801

sub81130-43011

main81130-43011iLXS12,YXS10..4HC,5F199801-200406

main81130-43030iLXS12200406-201310

main81130-43060iTSS10201310

81144COVER, HEADLAMP, NO.1

main90075-65002iLXS1#,YXS10199601-200709

81171AUNIT, HEADLAMP, LH

main81170-43010iLXS10199601-199801

sub81170-43011

main81170-43011iYXS10..4H199801-200406

main81170-43030iLXS12200406-201310

main81170-43060iTSS10201310

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iLXS1#,YXS10199601-200709

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60005iLXS1#,YXS10199601-200406

main90075-60072iLXS12200406-200709

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12010iTSS10200910

main85661-22020iLXS12,YXS10200406-200910

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12010iTSS10200910

main85661-22020iTSS10,YXS10200406-200910

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120iLXS12,YXS10200406-200709

9007510004

main90075-10004

9007510010

main90075-10010

9010906293

main90109-06293

9015960431

main90159-60431

9018906111

main90189-06111

16 parts on this diagram · 1 diagram in section
