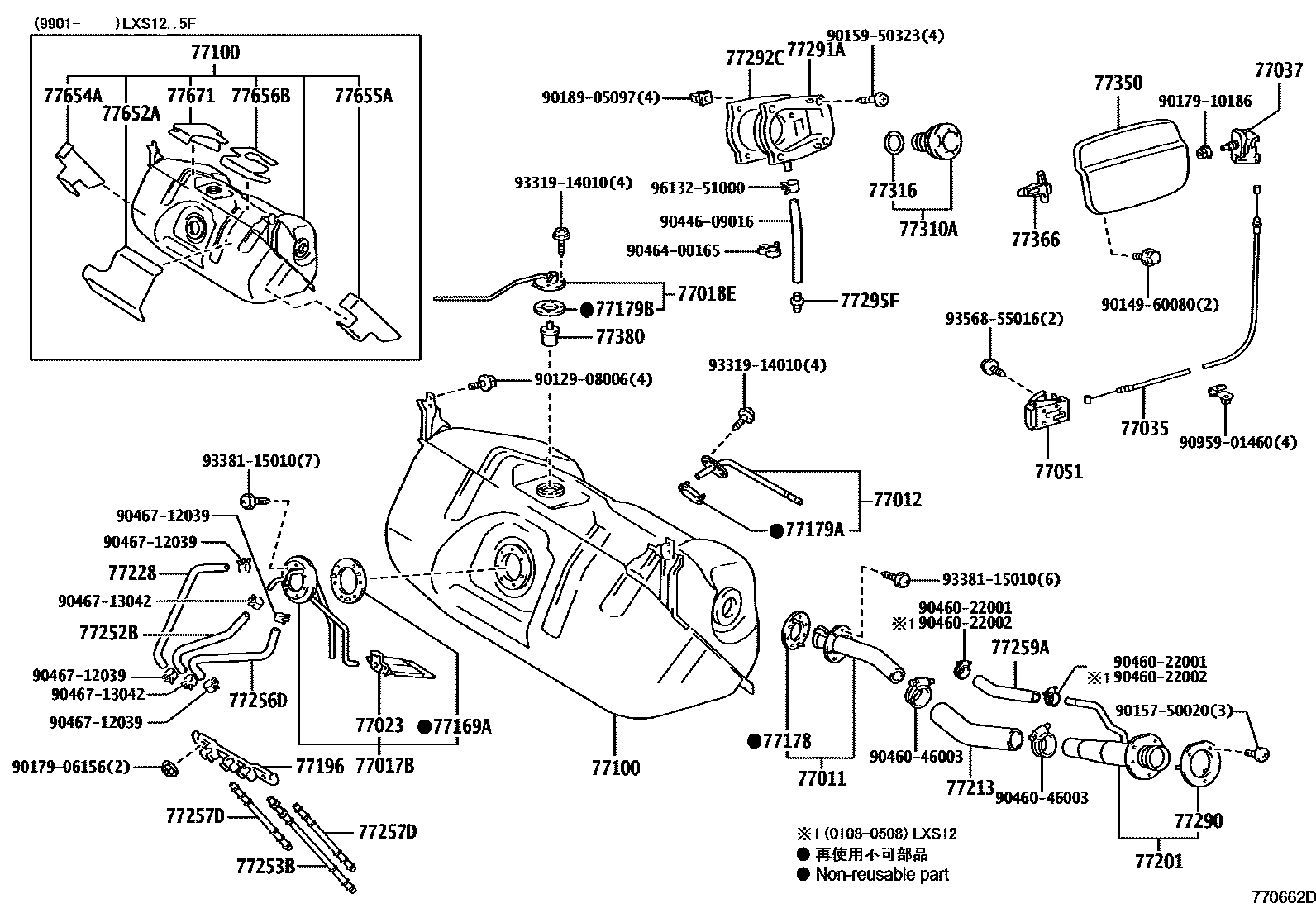

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK 0005 1FUEL TANK 0006 1FUEL TANK 0007 1FUEL TANK 0008 1FUEL TUBE 0009 1FUEL TUBE 0010 1FUEL TUBE 0011 1FUEL TUBE

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-43010iLXS1#199601-200108

77012TUBE SUB-ASSY, FUEL TANK BREATHER

main77012-43010×2iLXS12200512-200607

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-43010iLXS12200108-200607

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-43010iLXS12200108-200512

main77018-43020iTSS10200808

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-31020iLXS1#199601-200108

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-43010iYXS10..4HC200108-200709

main77035-43011iTSS10201101

77037LOCK SUB-ASSY, FUEL FILLER OPENING LID

main77037-43020iYXS10199908-200003

main77037-90K00iYXS10..4H200108-200312

77051LEVER SUB-ASSY, FUEL LID OPEN

main77051-30060-C0iLXS1#199601-200003

BLACK,TRIM1#

77100TANK ASSY, FUEL

main77001-43020iLXS1#199601-200108

main77001-43021iLXS12200512-200607

sub77001-43022

main77001-43040iYXS10200003-200108

main77001-43041iYXS10200505-200709

main77001-43901iYXS10199908-200003

77169AGASKET, FUEL SUCTION TUBE SET

main77169-14010iLXS1#199601-200108

main77169-25020iTSS10200808

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20010iLXS1#199601-200108

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-20040iLXS1#199601-200108

77179BGASKET, FUEL TANK EVAPORATION VENT TUBE

main77179-26010iLXS1#199601-200108

sub77179-26011

77196CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-43010iLXS12200108-200512

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-43020iLXS1#199601-200108

sub77201-43060

main77201-43030iLXS1#..5F199601-200002

W(KEY)

main77201-43040iYXS10199908-200003

main77201-43050iYXS10200003-200108

main77201-43080iTSS10200808

77213HOSE, FUEL TANK SUB INLET

main77213-43010iLXS1#199601-200108

77228TUBE, FUEL TANK EVAPORATION VENT, NO.2

main77228-43010iLXS1#199601-200108

77252BHOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE)

main77252-43010iLXS1#199601-200108

77253BHOSE, FUEL, NO.1(FOR FUEL MAIN NO.3 TUBE)

main77253-43010iLXS1#199601-200108

77256DHOSE, FUEL, NO.1 (FOR FUEL RETURN NO.2 TUBE)

main77256-43010iLXS12200108-200607

77257DHOSE, FUEL, NO.1(FOR FUEL RETURN NO.3 TUBE)

main77257-43010×2iLXS1#199601-200108

77259AHOSE, FUEL(FOR BREATHER TUBE)

main95311-13019iLXS1#199601-200108

L=190

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-30050iLXS1#,YXS10199601-200108

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-30040iLXS1#,YXS10199601-200108

77292CSHIELD, FUEL TANK FILLER PIPE, NO.2

main77292-30030iLXS1#,YXS10199601-200108

77295FGROMMET, FUEL HOSE

main77295-43020iLXS1#,YXS10199601-200108

77310ACAP ASSY, FUEL TANK

main77310-12150iLXS1#199803-200108

main77310-30060iLXS1#..5F199601-200002

W(KEY)

main77310-32011iLXS1#..4H199601-199803

W/O(KEY)

77316GASKET, FUEL TANK CAP

main77316-12031iLXS1#..5F199601-200002

W(KEY)

main77316-16010iLXS1#199601-200108

77350LID ASSY, FUEL FILLER OPENING

main77350-43010iLXS1#,YXS10199601-200108

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-12030iLXS1#,YXS10199601-200108

main77360-43010iYXS10..4H200108-200312

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iLXS1#199601-200108

77652ACUSHION, FUEL TANK, NO.2

main77652-43020iLXS12..5F199901-200108

77654ACUSHION, FUEL TANK, NO.4

main77654-43020iLXS12..5F199901-200108

77655ACUSHION, FUEL TANK, NO.5

main77655-43020iLXS12200512-200607

77656BCUSHION, FUEL TANK, NO.6

main77656-43020iLXS12..5F199901-200108

77671CUSHION, FUEL TANK TO COVER

main77671-43010iLXS12..5F199901-200108

9012908006

main90129-08006

9014960080

main90149-60080

9015750020

main90157-50020

9015950323

main90159-50323

9017906156

main90179-06156

9017910186

main90179-10186

9018905097

main90189-05097

9044609016

main90446-09016

9046022001

main90460-22001

9046022002

main90460-22002

9046046003

main90460-46003

9046400165

main90464-00165

9046712039

main90467-12039

9046713042

main90467-13042

9095901460

main90959-01460

9331914010

main93319-14010

9338115010

main93381-15010

9356855016

main93568-55016

9613251000

main96132-51000

55 parts on this diagram · 11 diagrams in section
