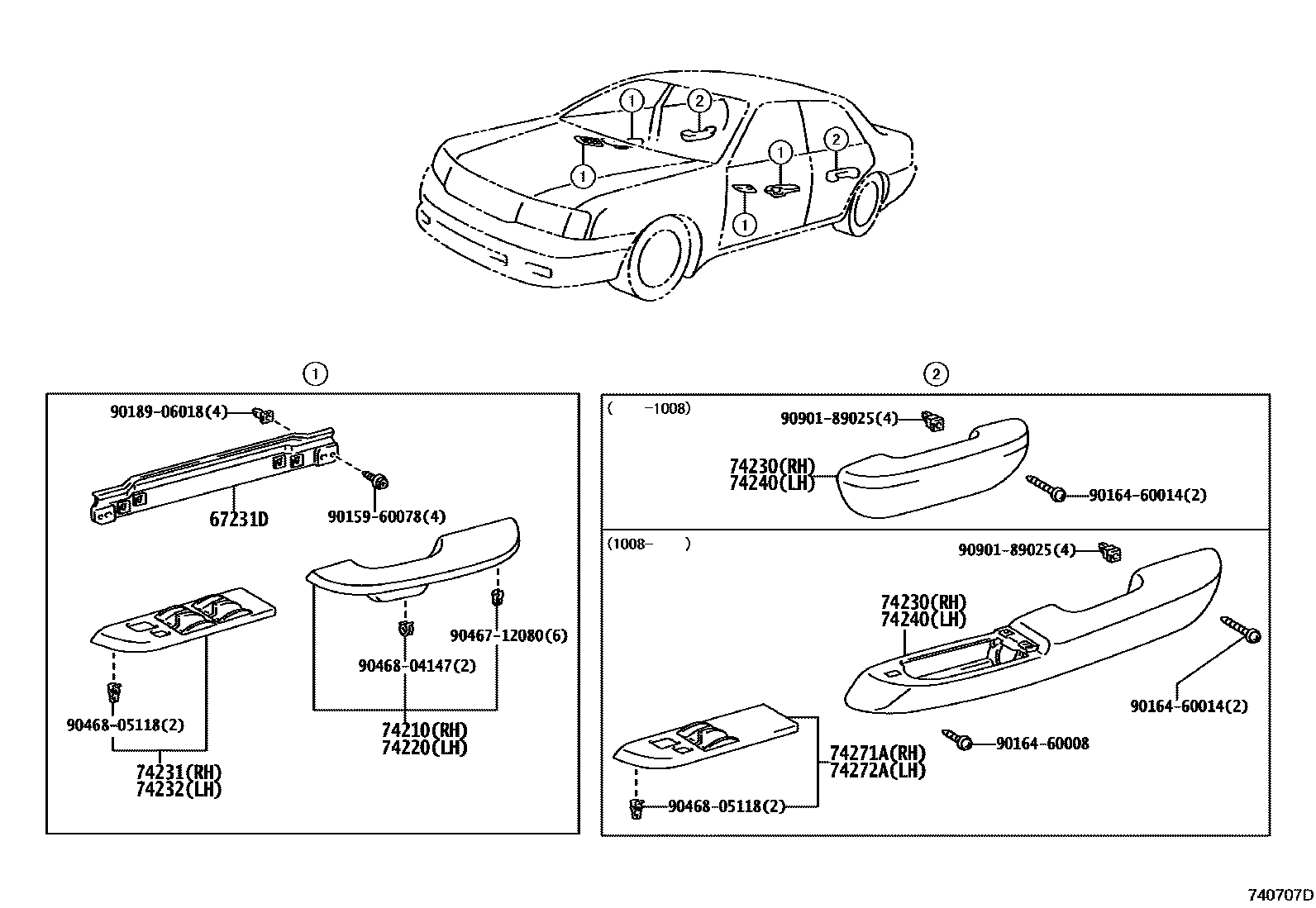

ARMREST & VISOR
67231DSUPPORT, FRONT DOOR ARMREST
74210ARMREST ASSY, FRONT, RH
SHADOW GRAY,TRIM1#
DK.GRAY,TRIM1#
74220ARMREST ASSY, FRONT, LH
SHADOW GRAY,TRIM1#
DK.GRAY,TRIM1#
74230ARMREST ASSY, REAR, RH
DK.GRAY,TRIM1#
74231PANEL, FRONT ARMREST BASE, UPPER RH
BLACK,TRIM1#
BLACK,TRIM1#
74232PANEL, FRONT ARMREST BASE, UPPER LH
BLACK,TRIM1#
74240ARMREST ASSY, REAR, LH
DK.GRAY,TRIM1#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
BLACK,TRIM1#
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
BLACK,TRIM1#
9015960078
main90159-60078
9016460008
main90164-60008
9016460014
main90164-60014
9018906018
main90189-06018
9046712080
main90467-12080
9046804147
main90468-04147
9046805118
main90468-05118
9090189025
main90901-89025
17 parts on this diagram · 3 diagrams in section
