REAR SEAT & SEAT TRACK

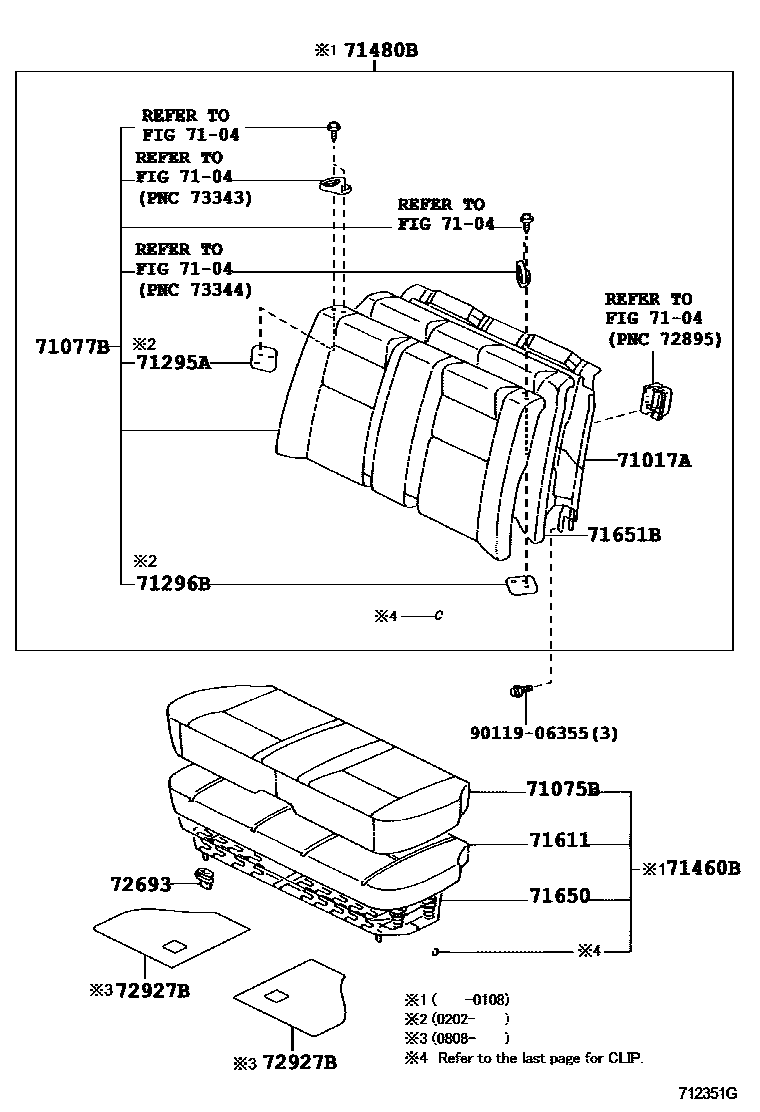

Parts diagram
71017AFRAME SUB-ASSY, REAR SEATBACK
main71017-43010i199601-201206
main71017-43030i200509-200709
WELCAB(HONG KONG)
main71017-43050i201206
7104
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-43010-B1i199601-199801
MEDIUM GRAY,TRIM1#
main71075-43011-B1i199801-200108
MEDIUM GRAY,TRIM1#
sub71075-43011
main71075-43011-B3i200108-200808
DARK GRAY,TRIM1#
sub71075-43011
main71075-43012-B3i200808-201206
DARK GRAY,TRIM1#
main71075-43020-B1i199601-199801
W(FABRIC SEAT)-*104,SHADOW GRAY,TRIM1#
main71075-43021-B1i199801-200108
W(FABRIC SEAT)-*104,SHADOW GRAY,TRIM1#
sub71075-43023
main71075-43021-B3i200108-200808
W(FABRIC SEAT)-*104,DK.GRAY,TRIM1#
sub71075-43023
main71075-43022-B3i200808-201206
W(FABRIC SEAT)-*104,DK.GRAY,TRIM1#
sub71075-43300
main71075-43050-B2i200509-200709
WELCAB(HONG KONG),DK.GRAY,TRIM1#
sub71075-43050
sub71075-43052
main71075-43120-B0i201206
DARK GRAY,TRIM1#
main71075-43130-B0i201206-201702
W(FABRIC SEAT)-*104,DK.GRAY,TRIM1#
sub71075-43131
main71075-43131-B0i201703
W(FABRIC SEAT)-*104,DK.GRAY,TRIM1#
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
main71077-43010-B1i199601-200108
MEDIUM GRAY,TRIM1#
main71077-43020-B1i199601-200108
W(FABRIC SEAT)-*104,SHADOW GRAY,TRIM1#
sub71077-43022
main71077-43150-B0i200108-200709
DARK GRAY,TRIM10
main71077-43150-B0i200108-200401
DARK GRAY,TRIM1#
main71077-43150-B1i200709-200808
DK.GRAY,TRIM1#
main71077-43150-B1i200401-200709
DK.GRAY,TRIM10
main71077-43151-B1i200808-200908
DK.GRAY,TRIM1#
main71077-43152-B1i200908-201206
DARK GRAY,TRIM1#
main71077-43160-B0i200108-200401
W(FABRIC SEAT)-*104,DK.GRAY,TRIM1#
sub71077-43680
main71077-43160-B1i200709-200808
W(FABRIC SEAT)-*104,DK.GRAY,TRIM1#
sub71077-43680
main71077-43160-B1i200401-200709
W(FABRIC SEAT)-*104,DK.GRAY,TRIM10
sub71077-43680
main71077-43161-B1i200808-200908
W(FABRIC SEAT)-*104,DK.GRAY,TRIM1#
sub71077-43690
main71077-43162-B1i200908-201206
W(FABRIC SEAT)-*104,DK.GRAY,TRIM1#
sub71077-43163
main71077-43180-B0i200509-200709
WELCAB(HONG KONG),DK.GRAY,TRIM1#
main71077-43210-B1i201206
DK.GRAY,TRIM1#
main71077-43220-B1i201206-201702
W(FABRIC SEAT)-*104,DK.GRAY,TRIM1#
sub71077-43221
main71077-43221-B1i201703
W(FABRIC SEAT)-*104,DK.GRAY,TRIM1#
71295APLATE, REAR SEATBACK, UPPER RH
main71295-43010i200202-200709
71296BPLATE, REAR SEATBACK, UPPER LH
main71296-43010i200202-200709
71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
main71460-43010-B0i199601-200108
SHADOW GRAY,TRIM1#
main71460-43020-B0i199601-200108
W(FABRIC SEAT)-*104,SHADOW GRAY,TRIM1#
71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)
main71480-43010-B0i199601-200108
SHADOW GRAY,TRIM1#
main71480-43020-B0i199601-200108
W(FABRIC SEAT)-*104,SHADOW GRAY,TRIM1#
71611PAD, REAR SEAT CUSHION
main71611-43010i199601-199801
main71611-43020i200509-200709
WELCAB(HONG KONG)
main71611-43030i199801-200808
main71611-43031i200808-201206
main71611-43060i201206
71650SPRING ASSY, REAR SEAT CUSHION
main71650-43010i199601-201206
sub71650-43020
main71650-43020i201206
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
main71651-43010i199601-199801
sub71651-43040
main71651-43040i199801-200108
main71651-43080i200108-200808
main71651-43081i200808-201206
main71651-43090i200509-200709
WELCAB(HONG KONG)
main71651-43130i201206
72693HOOK, REAR SEAT CUSHION LOCK
main72693-43010i199601-199801
sub72693-43011
main72693-43011i200509-200709
WELCAB(HONG KONG)
main72693-43011i199801-200709
72927BCOVER, REAR SEAT CUSHION UNDER
main72927-43010i200808
9011906355
main90119-06355

14 parts on this diagram · 4 diagrams in section
