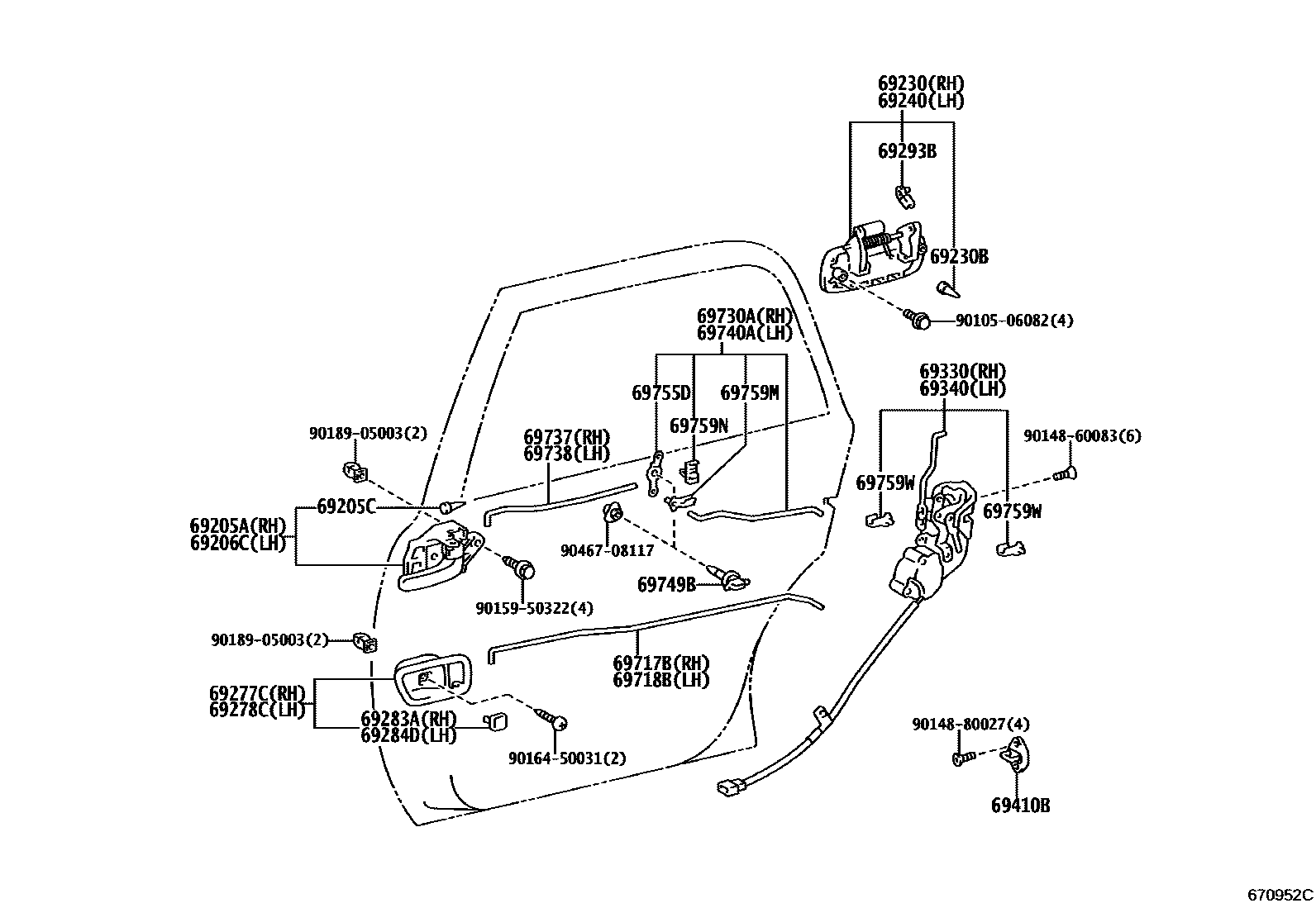

REAR DOOR LOCK & HANDLE
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
PLATED
PLATED
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
PLATED
PLATED
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69293BSNAP, REAR DOOR OUTSIDE HANDLE
RH
LH
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH
69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH
69730ALINK ASSY, REAR DOOR LOCK CONTROL, RH
69737LINK, REAR DOOR INSIDE LOCKING, RH
69738LINK, REAR DOOR INSIDE LOCKING, LH
69740ALINK ASSY, REAR DOOR LOCK CONTROL, LH
69749BCLAMP, REAR DOOR LOCK LINK
69755DBELLCRANK, REAR DOOR LOCKING CONTROL, FRONT
69759MSNAP, DOOR LOCK CONTROL LINK
RH
LH
69759NSNAP, DOOR LOCK CONTROL LINK
69759WSNAP, REAR DOOR LOCK CONTROL LINK
YELLOW
BROWN
WHITE
BLUE
9010506082
main90105-06082
9014860083
main90148-60083
9014880027
main90148-80027
9015950322
main90159-50322
9016450031
main90164-50031
9018905003
main90189-05003
9046708117
main90467-08117
32 parts on this diagram · 2 diagrams in section
