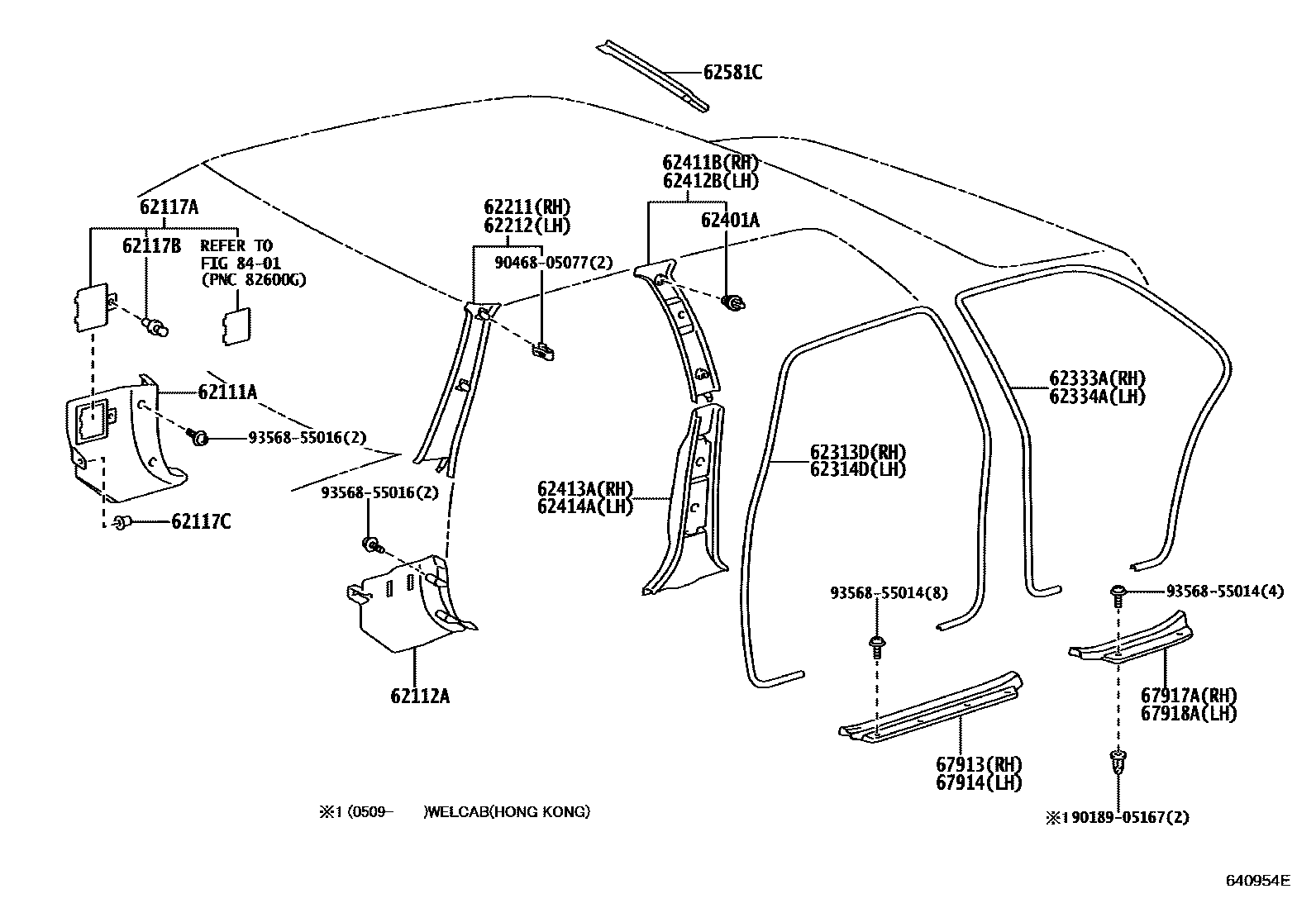

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111ATRIM SUB-ASSY, COWL SIDE, RH
62112ATRIM SUB-ASSY, COWL SIDE, LH
62117ACOVER, COWL SIDE TRIM SERVICE HOLE
SHADOW GRAY,TRIM1#
SHADOW GRAY,TRIM1#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
62211GARNISH, FRONT PILLAR, RH
LT.GRAY,TRIM1#
62212GARNISH, FRONT PILLAR, LH
LT.GRAY,TRIM1#
62313DTRIM, FRONT DOOR OPENING, RH
62314DTRIM, FRONT DOOR OPENING, LH
62333ATRIM, REAR DOOR OPENING, RH
62334ATRIM, REAR DOOR OPENING, LH
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
62411BGARNISH, CENTER PILLAR, UPPER RH
LT.GRAY,TRIM1#
62412BGARNISH, CENTER PILLAR, UPPER LH
LT.GRAY,TRIM1#
WELCAB(HONG KONG),LT.GRAY,TRIM1#
62413AGARNISH, CENTER PILLAR, LOWER RH
62414AGARNISH, CENTER PILLAR, LOWER LH
62581CGARNISH, REAR WINDOW SIDE, RH
LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
67913PLATE, FRONT DOOR SCUFF, RH
67914PLATE, FRONT DOOR SCUFF, LH
DK.GRAY,TRIM1#
67917APLATE, REAR DOOR SCUFF, RH
67918APLATE, REAR DOOR SCUFF, LH
8401
9018905167
main90189-05167
9046805077
main90468-05077
9356855014
main93568-55014
9356855016
main93568-55016
26 parts on this diagram · 1 diagram in section
