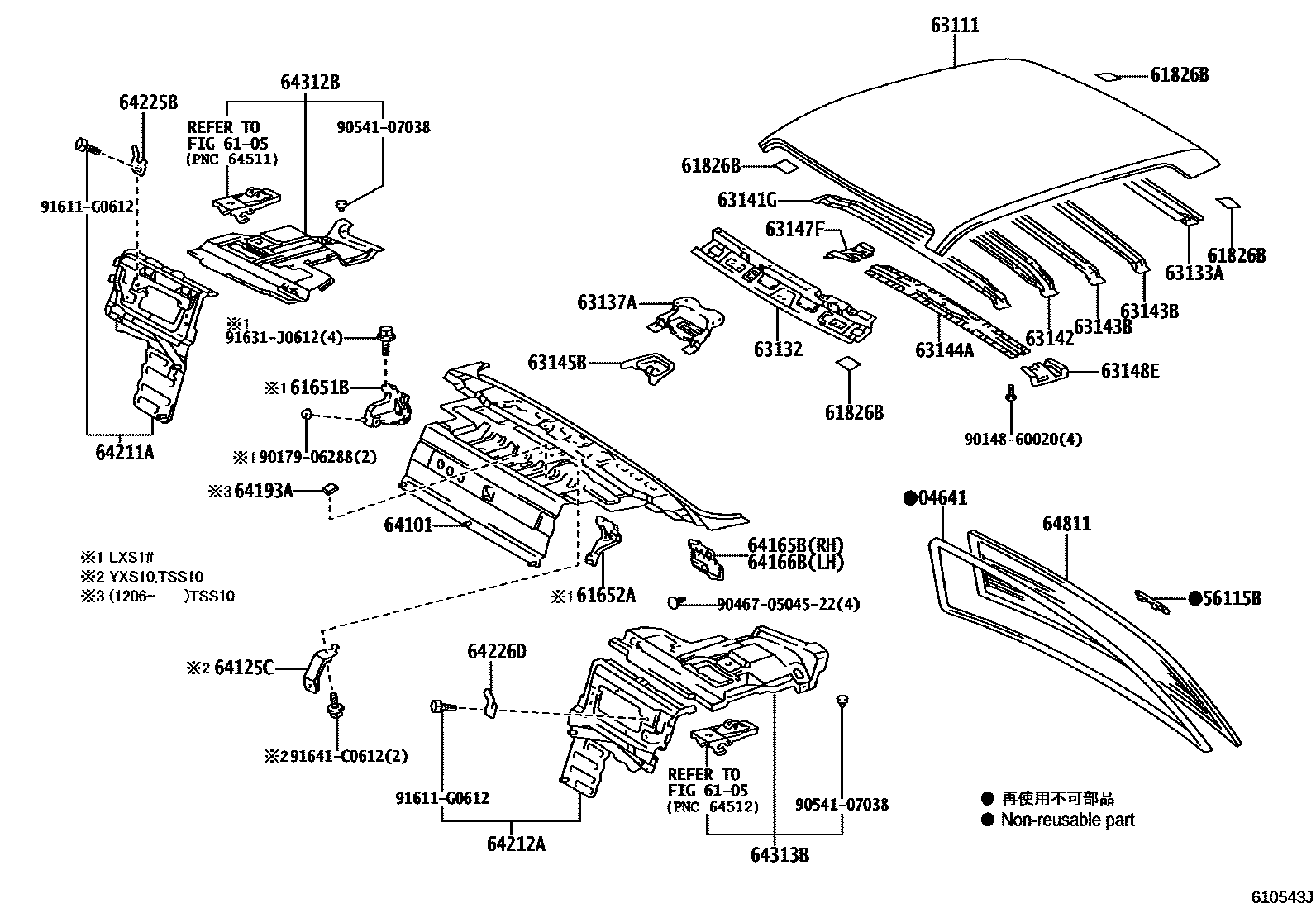

ROOF PANEL & BACK WINDOW GLASS

04641DAM KIT, BACK WINDOW GLASS

main56117-50140iTSS10201009

main75571-13060iYXS10..4H199601-201008

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56116-16050iYXS10..4H199601-200709

6105

61651BBRACKET, FUEL TANK, RH

main61651-43010iLXS1#199601-200607

61652ABRACKET, FUEL TANK, LH

main61652-43010iLXS1#199601-200607

61826BPLATE, NOISE CONTROL, NO.3

main61826-22020iYXS10..4HC199601-200808

63111PANEL, ROOF

main63111-43010iLXS1#,YXS10199601-200001

sub63111-43011

main63111-43011iLXS12,YXS10200001-200808

main63111-43012iLXS12,YXS10200105-200108

sub63111-43011

63132PANEL, WINDSHIELD HEADER, INNER

main63132-43010iLXS1#,YXS10199601-200103

sub63132-43011

main63132-43011iLXS12,YXS10200103-200808

63133AFRAME, BACK WINDOW, UPPER

main63133-43010iLXS1#,YXS10199601-200103

sub63133-43011

main63133-43011iLXS12200103-200808

63137ABRACKET, DOME LAMP, NO.1

main63139-30060iYXS10..4H199601-200403

main63139-43010iLXS12200403-200808

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-43010iLXS1#,YXS10199601-200808

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-43010iLXS12199601-200808

main63142-43020iLXS12,YXS10200001-200105

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-43010iLXS12199601-200808

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-43010iTSS10199601-200808

63145BREINFORCEMENT, WINDSHIELD HEADER PANEL

main63145-30080iYXS10..4HC199601-200808

63147FBRACKET, ROOF PANEL REINFORCEMENT, RH

main63147-43010iLXS1#,YXS10199601-200108

main63147-43020iYXS10..4H200108-200808

63148EBRACKET, ROOF PANEL REINFORCEMENT, LH

main63147-43010iLXS1#,YXS10199601-200108

main63147-43020iYXS10..4H200108-200808

64101PANEL SUB-ASSY, UPPER BACK

main64101-43010iLXS1#,YXS10199601-200105

sub64101-43011

main64101-43011iLXS12,YXS10200105-201205

sub64101-43012

main64101-43060iTSS10201206

64125CBRACKET, UPPER BACK PANEL, RH

main64125-43010iYXS10199908-200808

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-43010iLXS1#,YXS10199601-200808

64166BCOVER, UPPER BACK PANEL HOLE, NO.2

main64166-43010iLXS1#,YXS10199601-200808

64193ACLIP(FOR BACK PANEL SILENCER PAD)

main64193-43020iTSS10201206

64211ASTRAINER, PACKAGE TRAY TO FLOOR, RH

main64211-43900iLXS1#,YXS10199601-200108

sub64211-43901

main64211-43901iYXS10..4H200108-200709

64212ASTRAINER, PACKAGE TRAY TO FLOOR, LH

main64212-43900iLXS1#,YXS10199601-200108

sub64212-43901

main64212-43901iYXS10..4H200108-200709

64225BHANGER, REAR SEAT CUSHION SUPPORT

main64225-20020iLXS1#,YXS10199601-200709

64226DHANGER, REAR SEAT CUSHION SUPPORT, NO.2

main64226-20050iLXS1#,YXS10199601-200709

64312BBRACKET, PACKAGE TRAY, RH

main64312-43900iLXS1#,YXS10199601-200108

sub64312-43901

sub64211-43901

main64312-43901iYXS10..4H200108-200709

64313BBRACKET, PACKAGE TRAY, LH

main64313-43900iLXS1#,YXS10199601-200108

sub64313-43901

sub64212-43901

main64313-43901iYXS10..4H200108-200709

64811GLASS, BACK WINDOW

main64811-43020iLXS10199601-199701

*EHTT,T=3.5,GREEN

main64811-43030iLXS1#,YXS10199701-200406

*EHTT,T=3.5,GREEN

sub64811-43061

main64811-43060iLXS12200406-200909

*UVCTT,T=3.5,GREEN

sub64811-43061

main64811-43061iTSS10200910-201205

*UVCTT,T=3.5,GREEN

sub64811-43062

main64811-43062iTSS10201206

*UVCTT,T=3.5,GREEN

9014860020

main90148-60020

9017906288

main90179-06288

904670504522

main90467-0504522

9054107038

main90541-07038

91611G0612

main91611-G0612

91631J0612

main91631-J0612

91641C0612

main91641-C0612

36 parts on this diagram · 1 diagram in section
