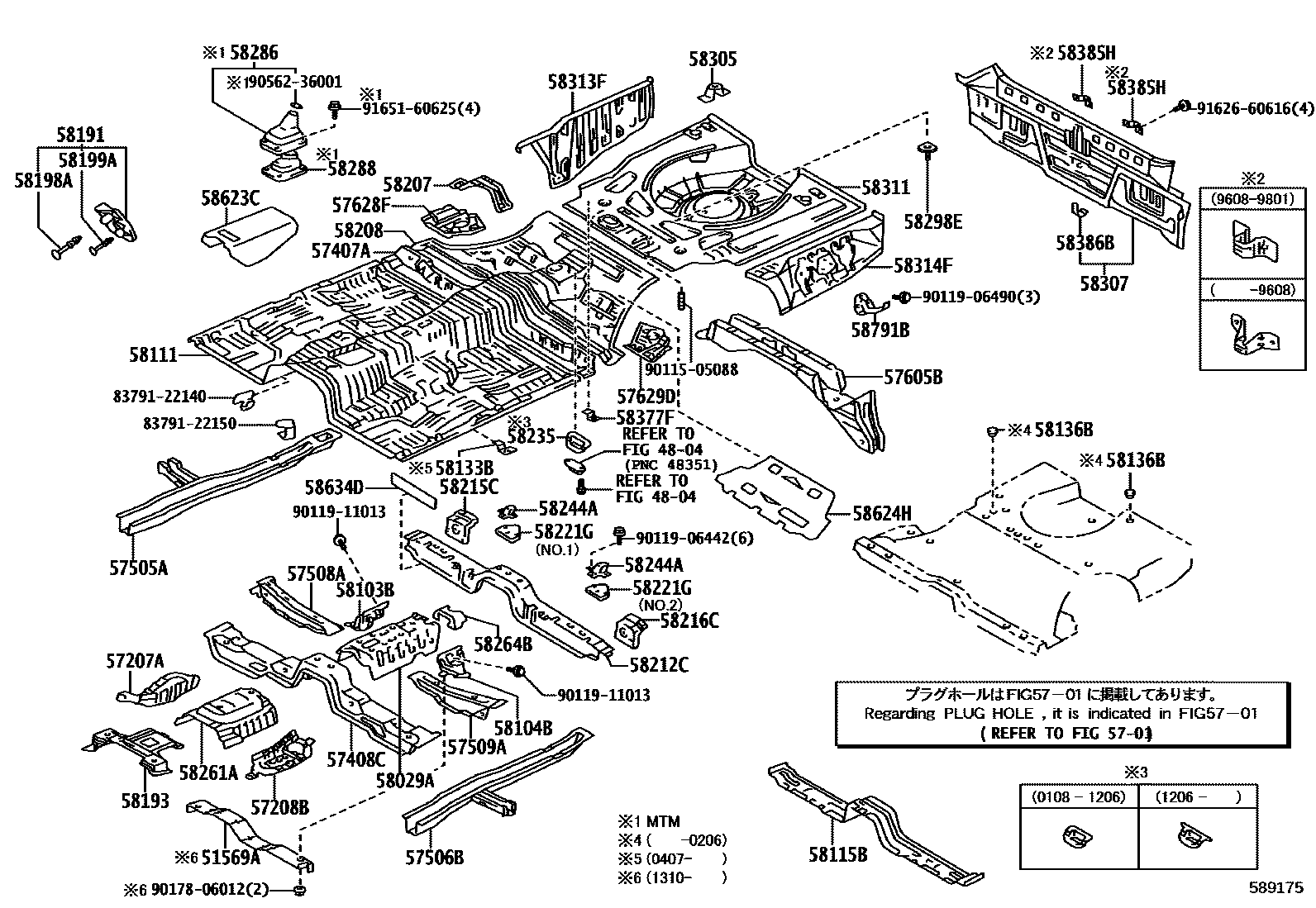

FLOOR PAN & LOWER BACK PANEL
4804
51569AGUARD, PROPELLER SHAFT
5701
57207ABRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, RH
57208BBRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, LH
57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS
57408CMEMBER SUB-ASSY, FRONT FLOOR CROSS
57505AREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER
57506BBRACKET SUB-ASSY, PARKING
57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57628FPLATE, REAR FLOOR SIDE MEMBER, RH
57629DPLATE, REAR FLOOR SIDE MEMBER, LH
58029ABRACKET SUB-ASSY, PARKING BRAKE WIRE CLAMP
58103BBRACKET SUB-ASSY, FRONT SEAT MOUNTING, INNER RH
58104BBRACKET SUB-ASSY, FRONT SEAT MOUNTING, INSIDE, LH
58111PAN, FRONT FLOOR
58115BPANEL, FRONT FLOOR, REAR
58133BBRACKET, FRONT FLOOR HEAT INSULATOR, NO.3
58136BCOVER, CENTER FLOOR HOLE
58191FOOTREST, FRONT FLOOR
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58198ACLIP, FOOTREST, NO.1
58199ACLIP, FOOTREST, NO.2
58207BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1
58208PAN, CENTER FLOOR
58212CPAN, CENTER FLOOR, FRONT
WELCAB(HONG KONG)
58215CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH
58216CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH
WELCAB(HONG KONG)
58221GREINFORCEMENT, FLOOR PANEL, FRONT RH
NO.1 & NO.2
WELCAB(HONG KONG),NO.2
58235BRACKET, DIFFERENTIAL CARRIER BUMPER MOUNTING
58244ASTOPPER, REAR SEAT CUSHION BRACKET
58261ACOVER, TRANSMISSION
W(*80,DRIVER SIDE ONLY)
W(*80,DRIVER SIDE ONLY)
58264BBRACKET, PARKING BRAKE CABLE GUIDE
58286BOOT, SHIFT & SELECT LEVER, NO.1
58288SEAL, SHIFT LEVER BOOT
58298EBRACKET, HOT AIR INTAKE, NO.1
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58377FBRACKET, LOWER BACK TRIM, RH
58385HBRACKET, REAR BUMPER COVER, NO.1
58386BBRACKET, REAR BUMPER COVER, NO.2
58623CPAD, FRONT FLOOR SILENCER, CENTER
58624HPAD, CENTER FLOOR SILENCER
58634DPAD, FRONT FLOOR SILENCER, REAR SIDE
58791BCARRIER, JACK
8379122140
8379122150
9011505088
9011906442
9011906490
9011911013
9017806012
9056236001
9162660616
9165160625
60 parts on this diagram · 1 diagram in section
