FRONT FENDER APRON & DASH PANEL

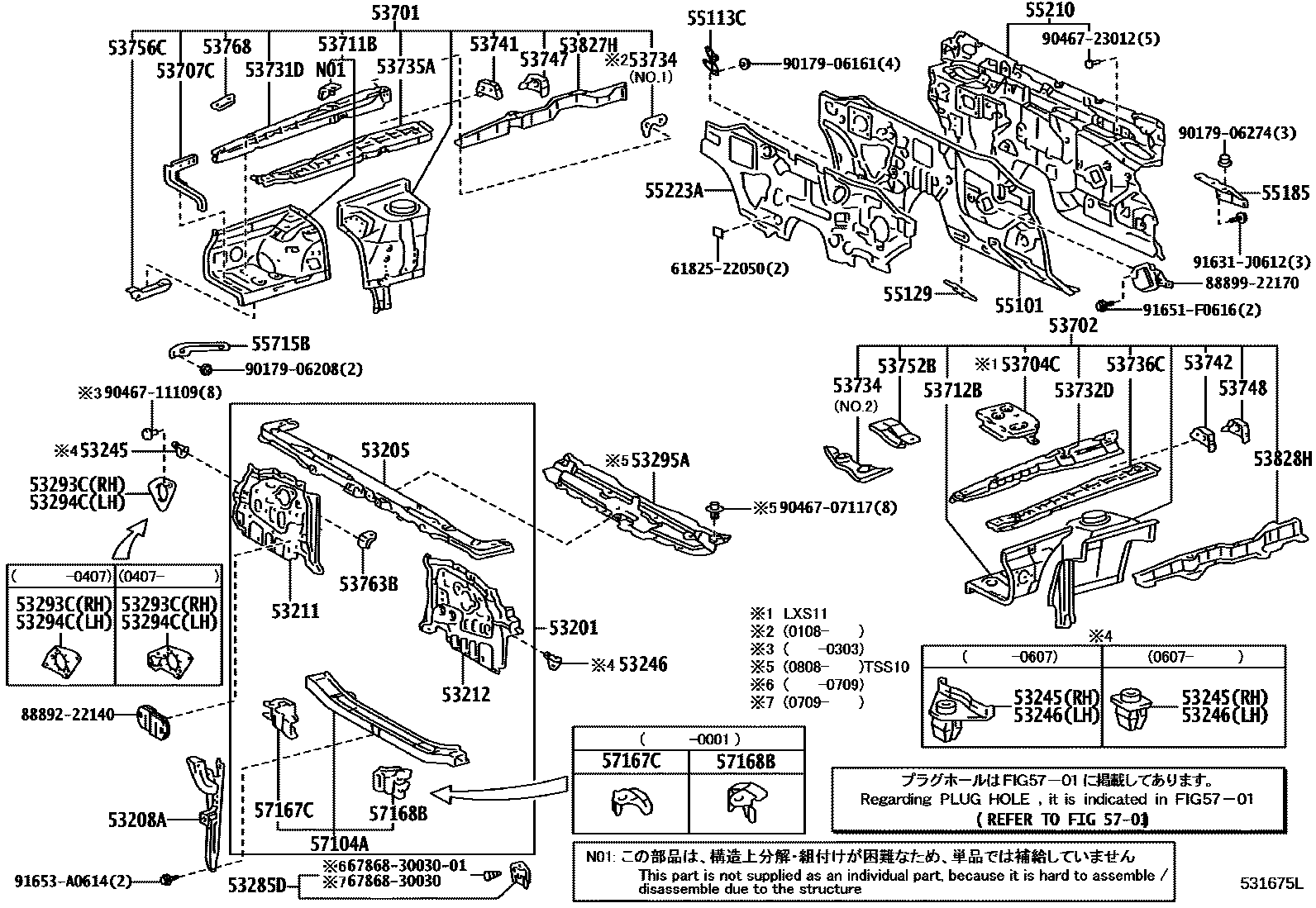

Parts diagram
53201SUPPORT SUB-ASSY, RADIATOR
main53201-43030i199601-199612
sub53201-43031
main53201-43031i199612-199904
sub53201-43032
main53201-43032i199904-200001
sub53201-43904
main53201-43050i200001-200101
sub53201-43051
main53201-43051i200101-200102
sub53201-43052
main53201-43052i200102-200108
sub53201-43053
main53201-43053i200205-200405
sub53201-43907
main53201-43904i200108-200205
sub53201-43907
sub53293-43030
main53201-43907i200406-200808
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
main53205-43020i199601-200102
sub53205-43021
main53205-43021i200102-200808
53208ASUPPORT SUB-ASSY, HOOD LOCK
main53208-43010i199601-200004
sub53208-43011
main53208-43011i200004-200808
53211SUPPORT, RADIATOR, RH
main53202-43010i199601-200205
sub53202-43011
main53202-43011i200205-200406
sub53202-43012
sub53293-43030
main53202-43012i200407-200808
53212SUPPORT, RADIATOR, LH
main53212-43010i199601-200102
sub53212-43011
main53212-43011i200102-200405
sub53212-43012
sub53293-43030
main53212-43012i200406-200808
53245BRACKET, HEADLAMP, RH
main53245-43010i199601-200607
main53245-43020i200607-200808
53246BRACKET, HEADLAMP, LH
main53245-43010i199601-200607
main53245-43020i200607-200808
53285DCOVER, FRONT BUMPER ARM HOLE
main53285-22030i199601-200808
53293CDEFLECTOR, RADIATOR SIDE, RH
main53293-43010i199601-200407
main53293-43020i200407-200709
53294CDEFLECTOR, RADIATOR SIDE, LH
main53293-43010i200108-200407
main53293-43020i200407-200709
53295ADEFLECTOR, RADIATOR UPPER AIR
main53295-43021i200808-201801
53701APRON SUB-ASSY, FRONT FENDER, RH
main53701-43011i199908-200108
sub53701-43012
main53701-43012i200108-200205
sub53701-43013
main53701-43013i200205-201310
main53701-43014i201310
main53701-43020i199601-200108
sub53701-43021
main53701-43021i200108-200607
53702APRON SUB-ASSY, FRONT FENDER, LH
main53702-43010i199908-200103
sub53702-43011
main53702-43011i200103-200808
main53702-43020i199601-200103
sub53702-43021
main53702-43021i200103-200205
sub53702-43022
main53702-43022i200205-200607
main53702-43031i200808
53704CSUPPORT SUB-ASSY, BATTERY, LH
main53704-43010i199601-200205
sub53704-43011
main53704-43011i200205-200607
53707CEXTENSION SUB-ASSY, FRONT FENDER APRON, FRONT RH
main53755-22010i199601-200808
53711BAPRON, FRONT FENDER, FRONT RH
main53701-43030i199908-200210
sub53701-43031
main53701-43031i200210-200808
main53711-43010i199601-200607
53712BAPRON, FRONT FENDER, FRONT LH
main53712-43010i199601-200808
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
main53731-22080i199601-199612
main53731-43020i199612-200808
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
main53732-22070i199601-199612
main53732-43020i199612-200808
53734PATCH, FRONT FENDER APRON, NO.4
main53733-43010i199908-200709
NO.2
main53734-43010i200108-200808
NO.1
main53734-43010i200108-200607
53735AMEMBER, FRONT APRON TO COWL SIDE, LOWER RH
main53735-22060i199601-200808
53736CMEMBER, FRONT APRON TO COWL SIDE, LOWER LH
main53736-22050i199601-200808
53741PLATE, FRONT FENDER APRON WIND GUIDE, RH
main53741-22010i200108-200205
main53741-22020i199601-200808
53742PLATE, FRONT FENDER APRON WIND GUIDE, LH
main53742-22020i199601-200808
53747PLATE, AIR SEALED, RH
main53747-22010i199601-200808
53748PLATE, AIR SEALED, LH
main53748-22010i199601-200808
53752BBRACKET, WASHER TANK MOUNTING
main53752-43010i199908-200808
53756CREINFORCEMENT, BRAKE ACTUATOR MOUNTING, NO.4
main53756-22020i199601-200808
53763BBRACKET, AIR CLEANER INLET MOUNTING
main53763-43010i199601-199904
sub53763-43020
main53763-43020i199904-200808
53768PLATE, IGNITION COIL MOUNTING
main53768-22030i199601-200709
53827HPROTECTOR, FRONT FENDER SIDE PANEL, RH
main53827-43010i199601-200808
53828HPROTECTOR, FRONT FENDER SIDE PANEL, LH
main53828-43010i199601-200808
55101PANEL SUB-ASSY, DASH
main55101-43021i199908-200002
sub55101-43022
main55101-43022i200002-200105
sub55101-43023
main55101-43023i200105-200107
sub55101-43024
main55101-43024i200107-200704
sub55101-43025
main55101-43025i200705-200808
main55101-43030i199601-199605
sub55101-43031
main55101-43031i199605-200002
sub55101-43032
main55101-43032i200002-200105
sub55101-43033
main55101-43033i200105-200107
sub55101-43034
main55101-43034i200107-200607
main55101-43040i199601-199605
sub55101-43041
main55101-43041i199605-200002
sub55101-43042
main55101-43042i200002-200105
sub55101-43043
main55101-43043i200105-200108
main55101-43430i200808
55113CPANEL, DASH SIDE, RH
main55113-43010i200108-200709
55129COVER, DASH PANEL HOLE
main55129-22010i199601-200808
55185BRACE, DASH PANEL TO COWL
main55185-43010i199601-200808
55210INSULATOR ASSY, DASH PANEL
main55210-43010i199601-199701
main55210-43011i199701-199705
main55210-43012i199705-199909
sub55210-43013
main55210-43013i199909-200108
main55210-43030i200108-200201
sub55210-43031
main55210-43031i200201-200210
sub55210-43050
main55210-43050i200210-200704
sub55210-43052
main55210-43051i200705-200708
sub55210-43070
main55210-43070i200709-200808
sub55210-43130
main55210-43130i200808
55223AINSULATOR, DASH PANEL, OUTER
main55223-43010i199601-200101
sub55223-43011
main55223-43011i200101-200607
sub55223-43030
main55223-43040i200808
55715BREINFORCEMENT, FRONT PANEL, RH
main55715-43010i199609-200210
5701
57104AMEMBER SUB-ASSY, FRONT CROSS
main57104-43010i199601-199612
sub57104-43011
main57104-43011i199612-200001
main57104-43030i200001-200101
sub57104-43031
main57104-43031i200101-200808
57167CGUSSET, FRONT CROSSMEMBER SIDE, RH
main57167-43010i199601-199801
sub57167-43011
main57167-43011i199801-200001
main57167-43020i200001-200101
sub57167-43021
main57167-43021i200101-200808
57168BGUSSET, FRONT CROSSMEMBER SIDE, LH
main57168-43010i199601-199801
sub57168-43011
main57168-43011i199801-200001
main57168-43020i200001-200101
sub57168-43021
main57168-43021i200101-200808
6182522050PLATE, QUARTER INNER PANEL, LOWER FRONT RH
main61825-22050
6786830030CLIP, FRONT DOOR GLASS WEATHERSTRIP
main67868-30030
678683003001CLIP, FRONT DOOR GLASS WEATHERSTRIP
main67868-3003001
8889222140BRACKET, COOLER EVAPORATOR MOUNTING
main88892-22140
8889922170COVER, EVAPORATOR
main88899-22170
9017906161
main90179-06161
9017906208
main90179-06208
9017906274
main90179-06274
9046707117
main90467-07117
9046711109
main90467-11109
9046723012
main90467-23012
91631J0612
main91631-J0612
91651F0616
main91651-F0616
91653A0614
main91653-A0614

57 parts on this diagram · 1 diagram in section
