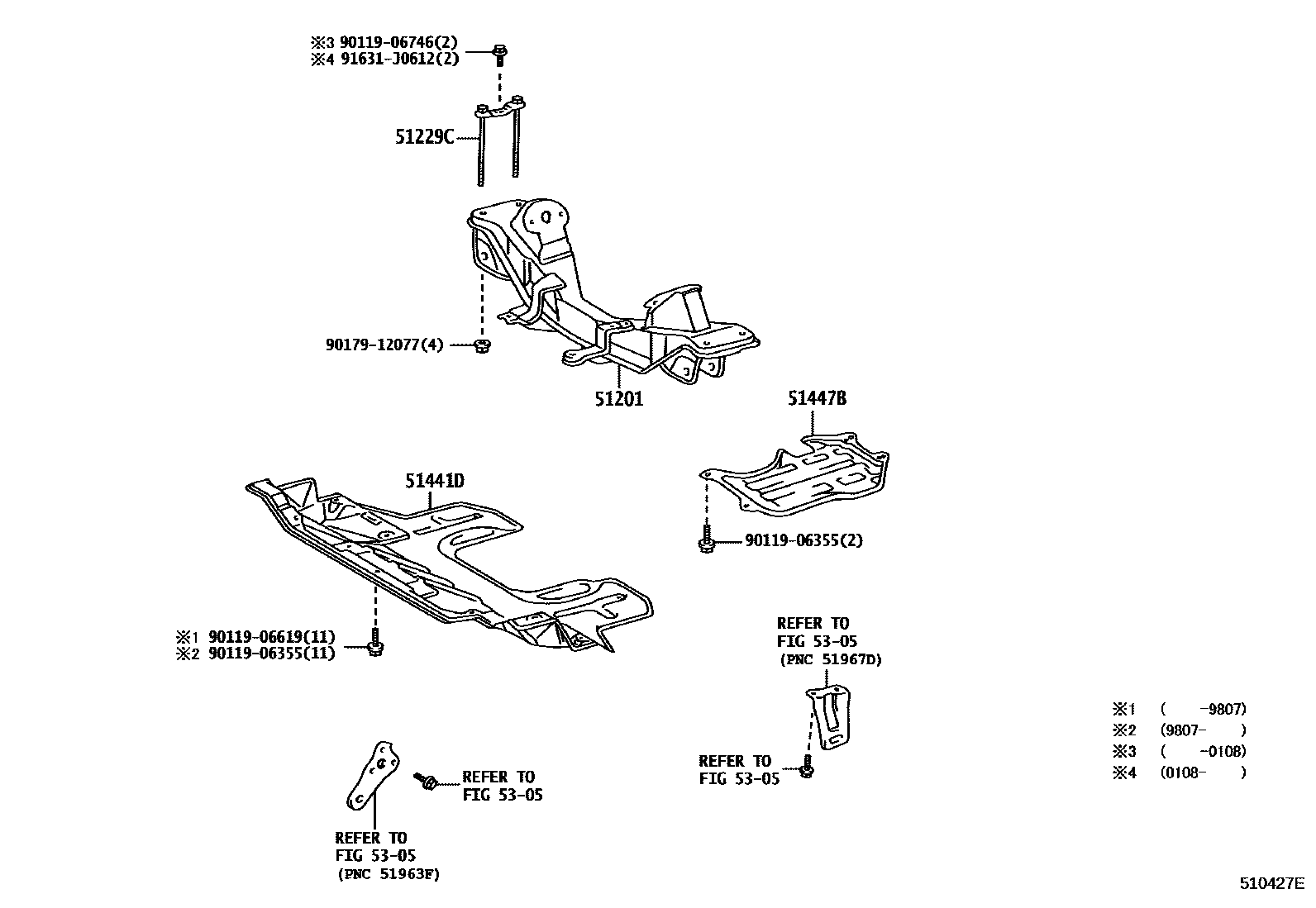

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-43010iYXS10..4HC199908-200610

sub51201-43011

main51201-43011iYXS10200611-200703

sub51201-43012

main51201-43012iYXS10200704-200808

main51201-43013iTSS10200808-201310

main51201-43030iLXS1#199601-200607

main51201-43070iTSS10201310

51229CPLATE, SUSPENSION MEMBER SET

main51229-22050iTSS10199601-200808

51441DCOVER, ENGINE UNDER

main51441-43010iYXS10..4HC199908-200808

main51441-43020iLXS12199601-200607

main51441-43040iTSS10200808

51447BPROTECTOR, OIL PAN

main51447-22040iTSS10199908-200808

main51447-22050iLXS12199601-200607

5305

9011906355

main90119-06355

9011906619

main90119-06619

9011906746

main90119-06746

9017912077

main90179-12077

91631J0612

main91631-J0612

10 parts on this diagram · 1 diagram in section
