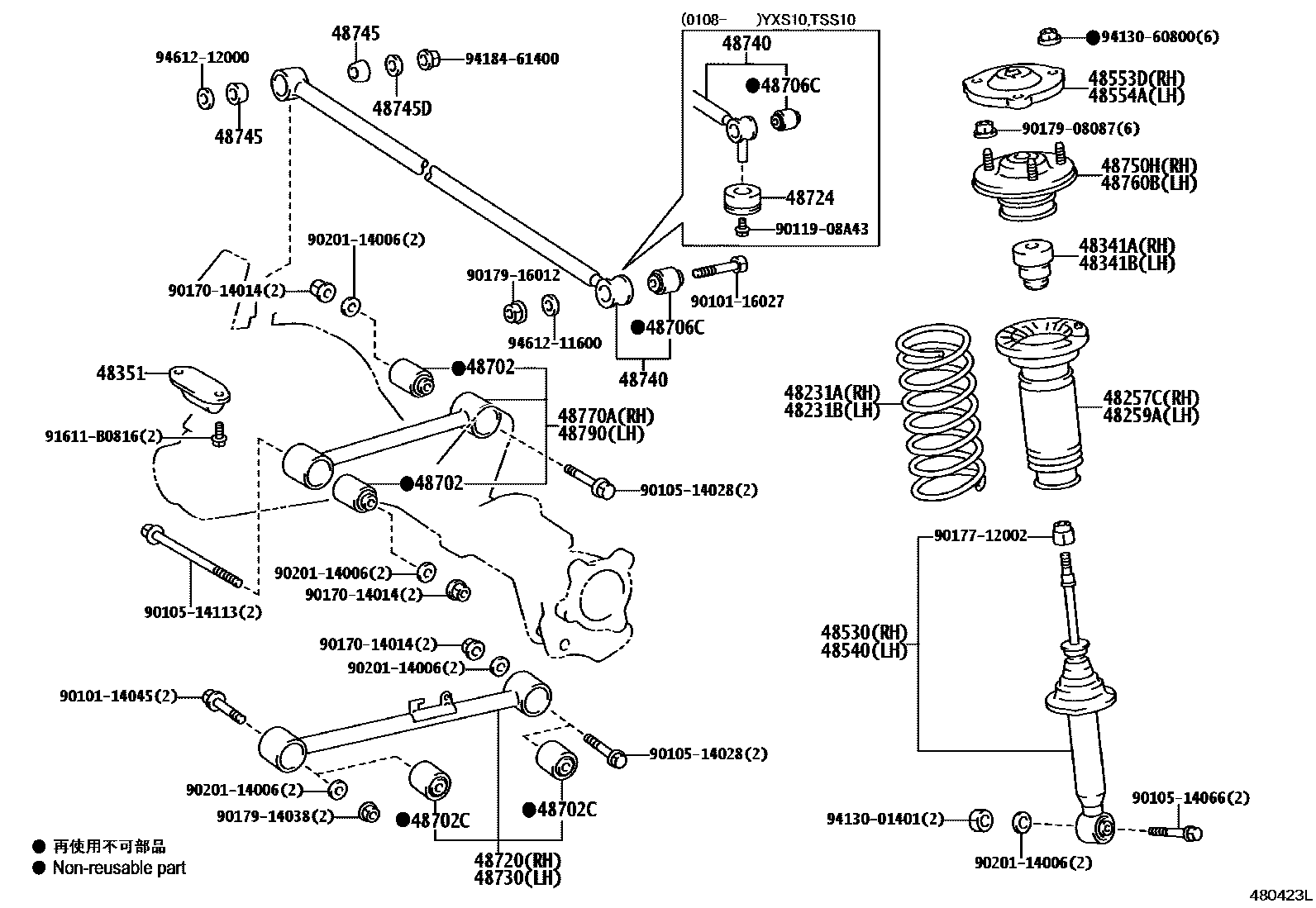

REAR SPRING & SHOCK ABSORBER
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48351BUMPER, DIFFERENTIAL CARRIER
48530ABSORBER ASSY, SHOCK, REAR RH
sub48530-29118
MARK 48530-43012 OR 48530-43022
MARK 48530-43060
MARK 48530-43013
48540ABSORBER ASSY, SHOCK, REAR LH
sub48530-29118
MARK 48530-43012 OR 48530-43022
MARK 48530-43060
MARK 48530-43013
48553DCAP, REAR SHOCK ABSORBER, RH
48554ACAP, REAR SHOCK ABSORBER, LH
48702BUSH SUB-ASSY, UPPER CONTROL ARM
48706CBUSH SUB-ASSY, LATERAL CONTROL ROD
48720ARM ASSY, LOWER CONTROL, RH
W/O(DESTINATION PACKAGE)
48724DAMPER, LWR CONTROL ARM DYNAMIC
48730ARM ASSY, LOWER CONTROL, LH
W/O(DESTINATION PACKAGE)
48740ROD ASSY, REAR LATERAL CONTROL
48745BUSH, LATERAL CONTROL ROD
48745DRETAINER, CUSHION(FOR LATERAL CONTROL ROD)
48770AARM ASSY, UPPER CONTROL, REAR RH
GENERAL COUNTRIES(EXCEPT HONG KONG)
48790ARM ASSY, UPPER CONTROL, REAR LH
GENERAL COUNTRIES(EXCEPT HONG KONG)
9010114045
main90101-14045
9010116027
main90101-16027
9010514028
main90105-14028
9010514066
main90105-14066
9010514113
main90105-14113
9011908A43
main90119-08A43
9017014014
main90170-14014
9017712002
main90177-12002
9017908087
main90179-08087
9017914038
main90179-14038
9017916012
main90179-16012
9020114006
main90201-14006
91611B0816
main91611-B0816
9413001401
main94130-01401
9413060800
main94130-60800
9418461400
main94184-61400
9461211600
main94612-11600
9461212000
main94612-12000
42 parts on this diagram · 2 diagrams in section
