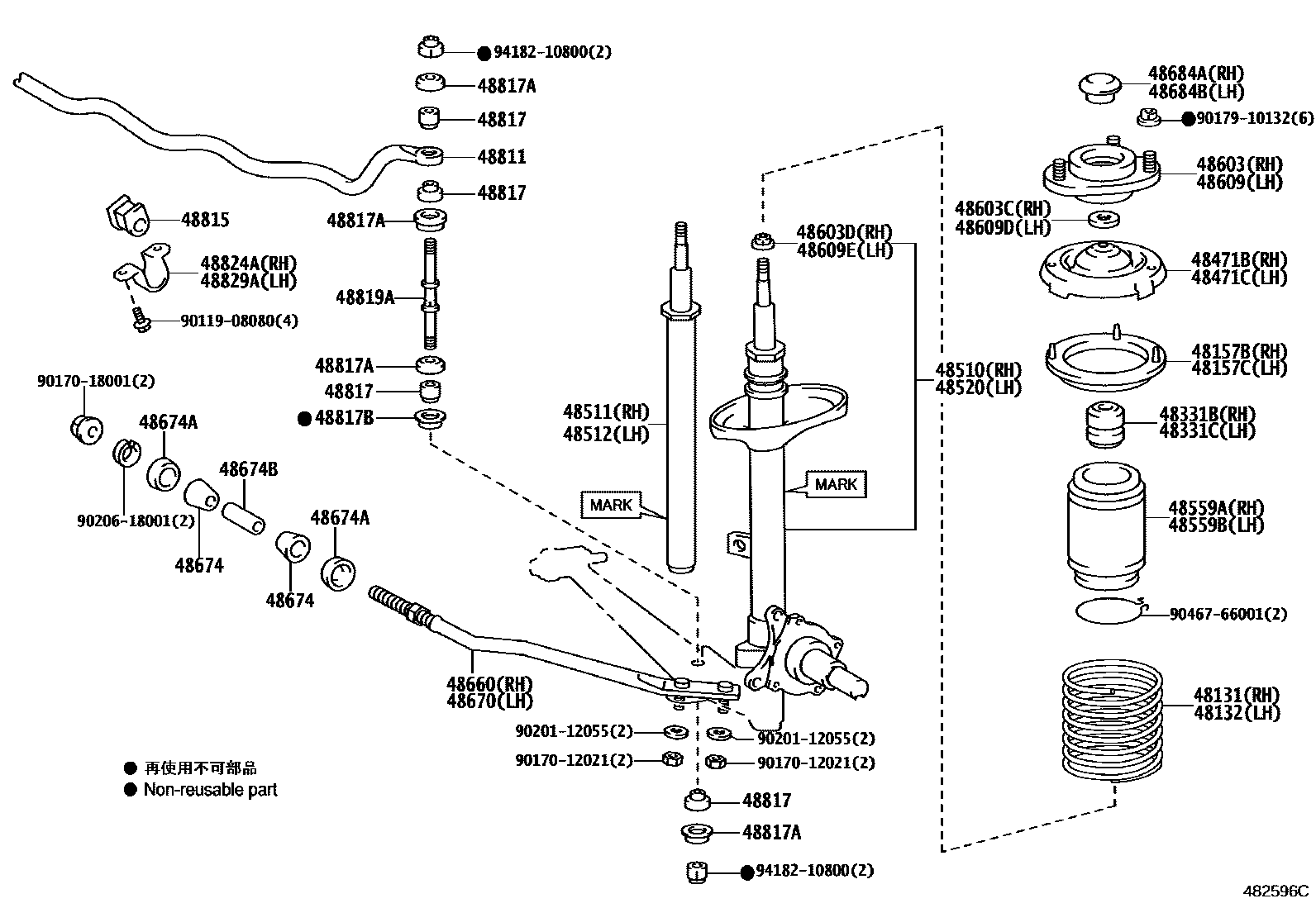

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
L=367.5
L=407.5
L=414.5
L=357.5
48132SPRING, FRONT COIL, LH
L=367.5
L=407.5
L=414.5
L=357.5
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48471BSEAT, FRONT COIL SPRING, UPPER RH
48471CSEAT, FRONT COIL SPRING, UPPER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-43011
MARK 48510-43013
MARK 48510-43050
MARK 48510-43060
48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)
MARK 48511-43010
MARK 48511-43011
MARK 48511-43040
MARK 48511-43050
48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)
MARK 48511-43010
MARK 48511-43011
MARK 48511-43040
MARK 48511-43050
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-43013
MARK 48520-43050
MARK 48520-43060
48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1
48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48660BAR ASSY, STRUT, RH
48670BAR ASSY, STRUT, LH
48674CUSHION, STRUT BAR
48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)
48674BCOLLAR(FOR STRUT BAR CUSHION)
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
48811BAR, STABILIZER, FRONT
48817CUSHION, FRONT STABILIZER
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
48819ABOLT, FRONT STABILIZER
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9011908080
main90119-08080
9017012021
main90170-12021
9017018001
main90170-18001
9017910132
main90179-10132
9020112055
main90201-12055
9020618001
main90206-18001
9046766001
main90467-66001
9418210800
main94182-10800
43 parts on this diagram · 1 diagram in section
