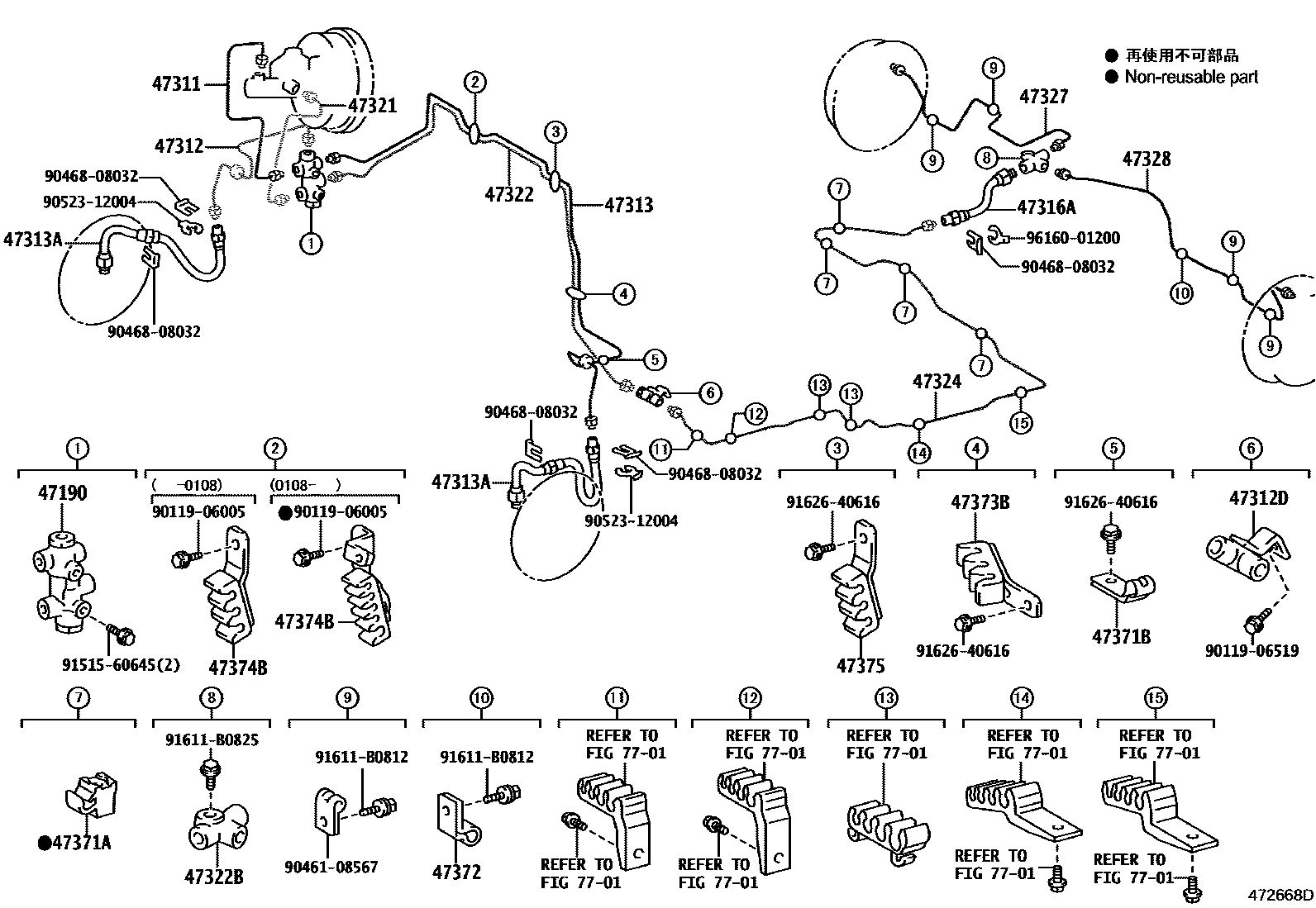

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1W(ABS) 0004 1 0005 1W(ABS) 0006 1

47190VALVE ASSY, PROPORTIONING & BY-PASS

main47190-28010iTSS10200808-201310

main47190-43010iLXS10199601-199701

main47190-43050iYXS10199908-200808

main47190-43060iLXS1#199701-200607

47311TUBE, FRONT BRAKE, NO.1

main47311-43010iLXS12199601-200607

main47311-43030iTSS10200808-201310

main47311-43050iYXS10..4H199802-200808

main47311-43070iTSS10201310

47312TUBE, FRONT BRAKE, NO.2

main47312-43010iLXS1#,YXS10199601-200808

main47312-43080iTSS10200808-201310

47312DWAY, 2(FOR REAR BRAKE TUBE)

main90412-10118iTSS10199601-201310

main90412-10119iYXS10199908-200808

main90412-10298iTSS10201310

47313TUBE, FRONT BRAKE, NO.3

main47313-43010iYXS10199908-200808

main47313-43020iLXS1#199601-200108

main47313-43021iLXS12200108-200607

main47313-43040iTSS10200808-201310

main47313-43050iTSS10201310

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02570iLXS1#,YXS10199601-200108

main90947-02D13iYXS10..4H200108-200808

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02619iLXS1#,YXS10199601-200108

main90947-02D14iYXS10..4H200108-201310

main90947-02H16iTSS10201310

47321TUBE, REAR BRAKE, NO.1

main47321-43010iLXS12199601-200607

main47321-43030iTSS10200808-201310

main47321-43050iYXS10..4H199802-200808

main47321-43070iTSS10201310

47322TUBE, REAR BRAKE, NO.2

main47322-22220iYXS10199908-200808

main47322-43010iLXS10199601-199802

main47322-43011iLXS12199802-200607

main47322-43090iTSS10200808-201310

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10098iLXS12199601-201310

47324TUBE, REAR BRAKE, NO.4

main47324-43010iYXS10199908-200808

main47324-43020iLXS1#199601-200607

main47324-43100iTSS10200808-201310

main47324-43110iTSS10201310

47327TUBE, REAR BRAKE, NO.7

main47327-43010iLXS10199601-199701

main47327-43011iYXS10..4HC199701-201310

main47327-43030iTSS10201310

47328TUBE, REAR BRAKE, NO.8

main47328-43010iLXS10199601-199701

main47328-43011iYXS10..4H199701-201310

main47328-43030iTSS10201310

47371ACLAMP, BRAKE TUBE, NO.1

main47371-10170iLXS1#199601-200607

47371BCLAMP, BRAKE TUBE, NO.6

main47371-43090iTSS10200808-201310

main47371-43130iTSS10201310

main90461-06055iYXS10..4H199601-200808

47372CLAMP, BRAKE TUBE, NO.2

main90461-06113iLXS1#,YXS10199601-201310

47373BCLAMP, BRAKE TUBE, NO.3

main47371-22130iLXS1#,YXS10199601-200808

main47371-43050iTSS10200808-201310

main47371-43110iTSS10201310

47374BCLAMP, BRAKE TUBE, NO.4

main47371-22120iLXS1#199601-200108

main47371-43010iYXS10199908-200808

main47371-43060iTSS10200808-201310

main47371-43120iTSS10201310

47375CLAMP, BRAKE TUBE, NO.5

main47371-22120iLXS12199601-200607

main47371-43040iYXS10..4H199908-200808

main47371-43100iTSS10200808-201310

main47371-43140iTSS10201310

7701

9011906005

main90119-06005

9011906519

main90119-06519

9046108567

main90461-08567

9046808032

main90468-08032

9052312004

main90523-12004

9151560645

main91515-60645

91611B0812

main91611-B0812

91611B0825

main91611-B0825

9162640616

main91626-40616

9616001200

main96160-01200

30 parts on this diagram · 6 diagrams in section
