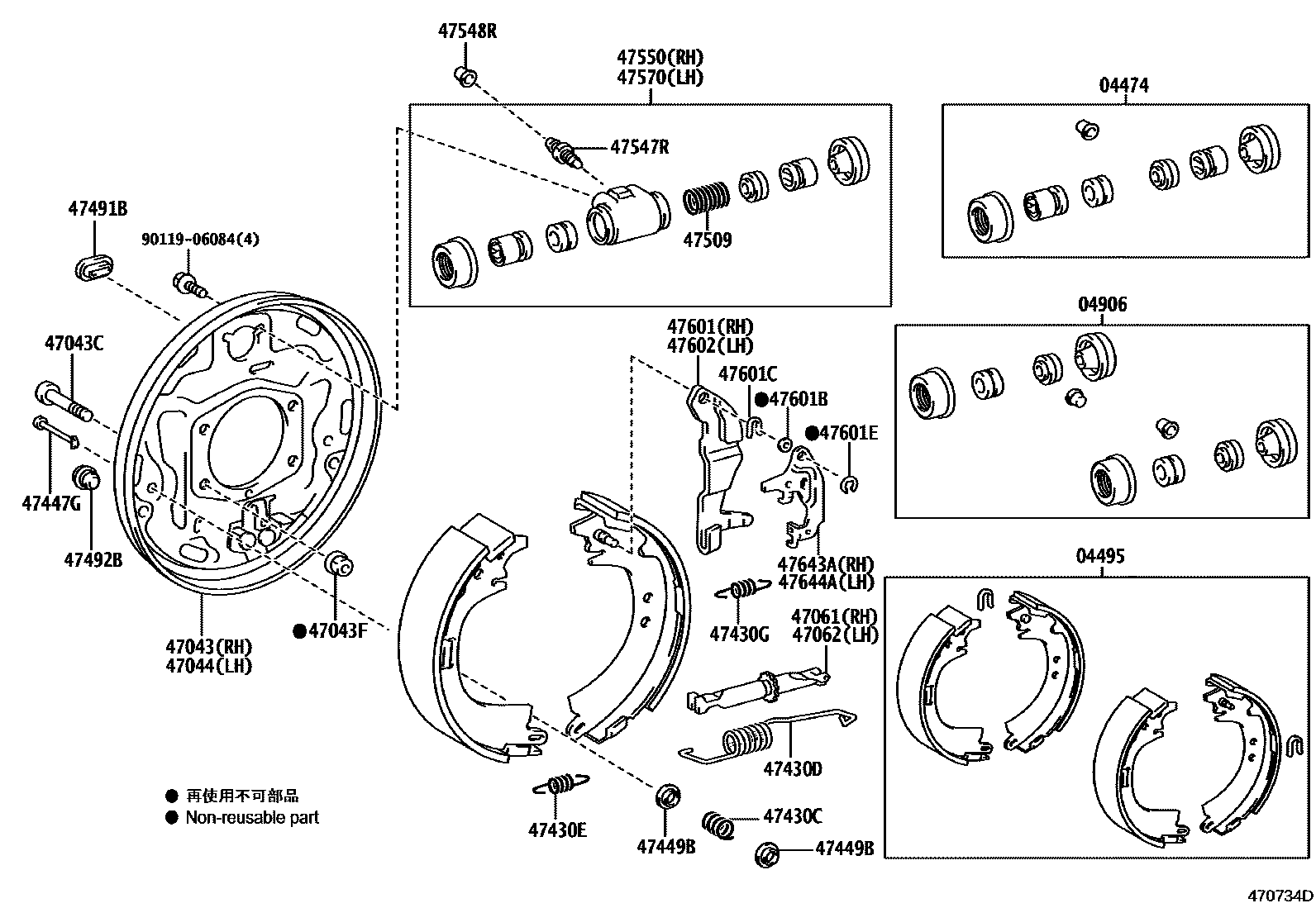

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1

04474CYLINDER KIT, REAR WHEEL

main04474-30060iLXS1#,YXS10199805-200108

main04474-35070iLXS1#199701-199805

main04474-43010iLXS10199601-199701

main04474-43020iYXS10..4HC200108-200808

04495SHOE KIT, REAR BRAKE

main04495-30090iLXS10199701-199708

main04495-43010iLXS10199601-199607

sub04495-43040

main04495-43040iLXS10199607-199701

main04495-43060iLXS1#,YXS10199708-200108

MARK AK LA509

main04495-43070iYXS10200108-200808

MARK AK LA509

04906CUP KIT, REAR WHEEL CYLINDER

main04906-30060iLXS1#,YXS10199805-200108

main04906-35140iLXS1#199701-199805

main04906-43010iLXS10199601-199701

main04906-43040iYXS10200108-200808

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-43010iLXS10199601-199701

main47043-43020iLXS1#,YXS10199701-200108

main47043-43030iYXS10..4H200108-200808

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-28010iLXS1#,YXS10199601-200709

*10-1.25PX46-21

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-10150iLXS1#,YXS10199601-200709

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-43010iLXS10199601-199701

main47044-43020iLXS1#,YXS10199701-200108

main47044-43030iLXS12200108-200808

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-43020iLXS10199601-199701

main47062-30030iLXS1#199701-199901

main47062-30040iLXS12,YXS10199901-200108

47062STRUT SET, PARKING BRAKE SHOE, LH

main47061-30030iLXS1#199701-199901

main47061-30040iLXS12,YXS10199901-200108

main47062-43020iLXS10199601-199701

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20604iLXS1#,YXS10199601-200108

main90501-20756iLXS10199701-199707

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23003iLXS1#,YXS10199701-200108

main90905-06039iLXS10199601-199701

RH

main90905-06040iLXS10199601-199701

LH

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-20005iLXS1#,YXS10199701-200108

main90506-23346iLXS10199601-199607

main90506-26026iLXS10199607-199701

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12011iLXS10199601-199701

main90506-12480iLXS1#,YXS10199701-200108

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20030iLXS10199601-199701

main47447-30020iLXS1#,YXS10199701-200108

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iLXS1#,YXS10199601-200108

47491BPLUG, HOLE(FOR REAR BRAKE)

main47491-20011iLXS1#,YXS10199601-200108

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010iLXS1#,YXS10199601-200108

47509SPRING SUB-ASSY, REAR WHEEL CYLINDER PISTON

main47509-35020iLXS1#,YXS10199805-200108

main90029-60009iLXS1#199701-199805

main90029-60012iLXS10199601-199701

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20030iLXS1#,YXS10199701-200108

main47547-26010iLXS10199601-199701

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iLXS1#,YXS10199601-200808

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-30100iLXS1#,YXS10199805-200108

main47550-35180iLXS1#199701-199805

main47550-43010iLXS10199601-199701

main47550-43090iYXS10..4HC200108-200808

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-30100iLXS1#,YXS10199805-200108

main47550-35180iLXS1#199701-199805

main47550-43010iLXS10199601-199701

main47550-43090iYXS10..4H200108-200808

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-28010iYXS10..4HC199701-200808

main47611-43010iLXS10199601-199701

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-09001iYXS10199701-200808

T=0.2

main90564-09002iYXS10199701-200808

T=0.4

main90564-09003iYXS10..4H199701-200808

T=0.5

main90564-09184iYXS10..4HC199701-200808

T=0.3

main90564-09185iYXS10..4H199701-200808

T=0.6

main90564-09186iLXS12199701-200808

T=0.9

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iLXS10199601-199701

T=1.2

main90213-07010iLXS1#,YXS10199701-200808

T=1.6

47601ERING, E(FOR REAR BRAKE)

main90213-06013iLXS1#,YXS10199701-200108

main96160-00500iLXS10199601-199701

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-28010iYXS10199701-200808

main47612-43010iLXS10199601-199701

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-33010iLXS10199601-199701

main47643-43010iLXS12200108-200808

main47644-30010iLXS1#,YXS10199701-200108

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47643-30010iLXS1#,YXS10199701-200108

main47644-33010iLXS10199601-199701

main47644-43010iYXS10..4HC200108-200808

9011906084

main90119-06084

30 parts on this diagram · 3 diagrams in section
