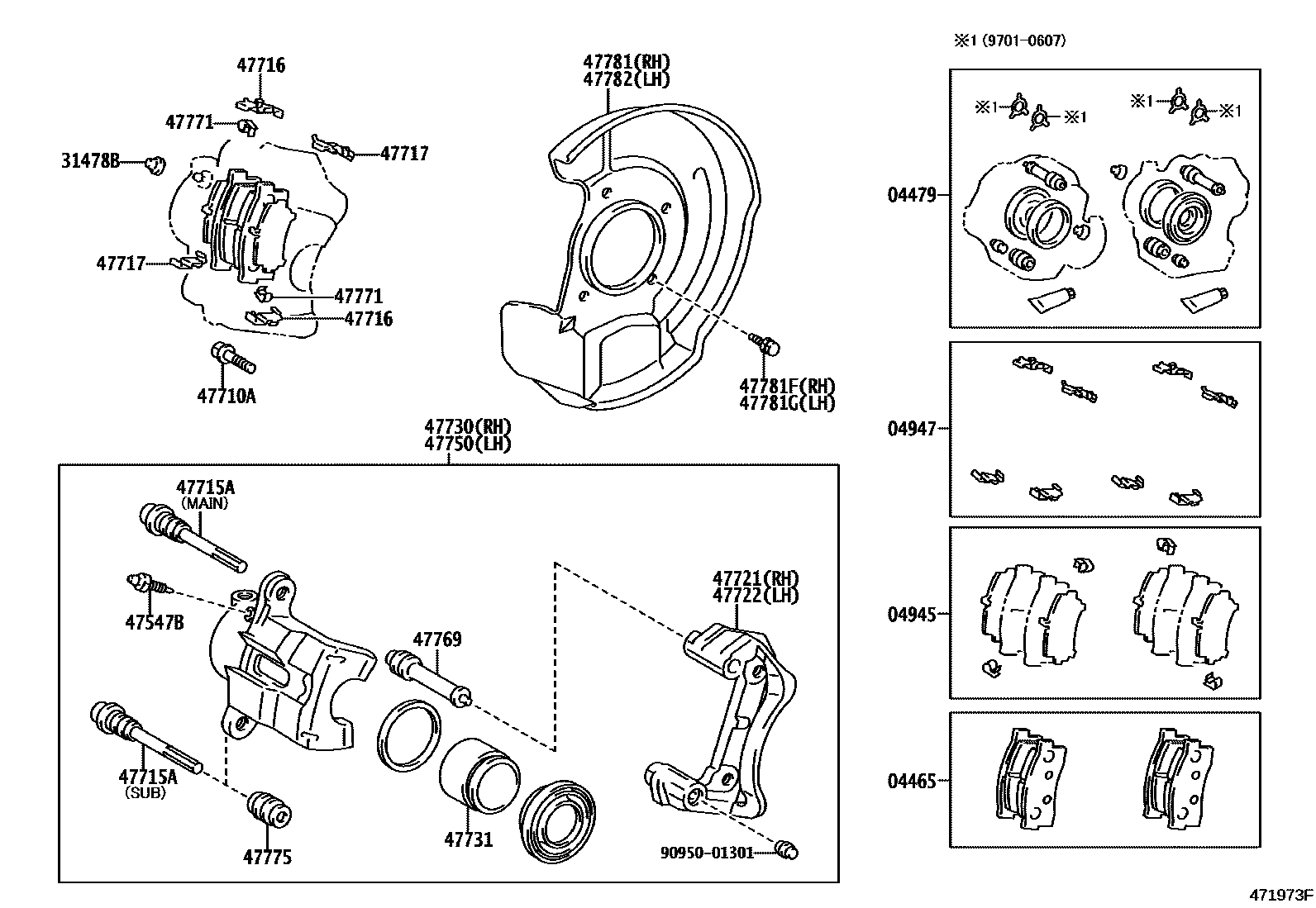

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-43010iLXS10199601-199701

main04465-43020iLXS1#,YXS10199701-200709

MARK AK V3016

sub04465-43040

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-43010iTSS10200607-200808

main04479-22021iLXS10199601-199701

main04479-35031iLXS12,YXS10..4HC,5F199701-200607

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-43010iLXS12199601-200808

04947FITTING KIT, DISC BRAKE, FRONT

main04947-43010iLXS1#,YXS10199601-200808

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iLXS1#,YXS10199601-200808

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-35020iYXS10..4H199601-200808

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12058iTSS10,YXS10199601-200709

*12-1.25PX31-20

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-43010iYXS10..4H199701-200808

MAIN

main47715-43010iLXS10199601-199701

MAIN & SUB

main47715-43020iYXS10..4HC199701-200808

SUB

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-43010iYXS10..4HC199601-200808

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-43010iLXS1#,YXS10199601-200808

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-22090iLXS12199601-200808

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-22070iYXS10..4H199601-200808

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-43010iLXS10199601-199701

main47730-43020iLXS1#,YXS10199701-200808

47731PISTON, FRONT DISC BRAKE

main47731-04030iLXS1#,YXS10199701-200808

main47731-35020iLXS10199601-199701

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-43010iLXS10199601-199701

main47750-43020iYXS10..4H199701-200808

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-22010iLXS10199601-199701

main47769-35010iYXS10..4HC199701-200808

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-22030iLXS1#,YXS10199601-200808

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-22010iLXS10199601-199701

main47775-35010iLXS1#,YXS10199701-200808

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-22030iTSS10200808

main47781-22130iLXS12,YXS10199601-200808

47781FBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main91611-60814iLXS12,YXS10200108-200808

main91612-60814iLXS1#,YXS10199601-200108

sub91611-60814

47781GBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main91611-60814iYXS10200108-200808

main91612-60814iLXS1#,YXS10199601-200108

sub91611-60814

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-22030iTSS10200808

main47782-22130iLXS1#,YXS10199601-200808

9095001301

main90950-01301

23 parts on this diagram · 1 diagram in section
