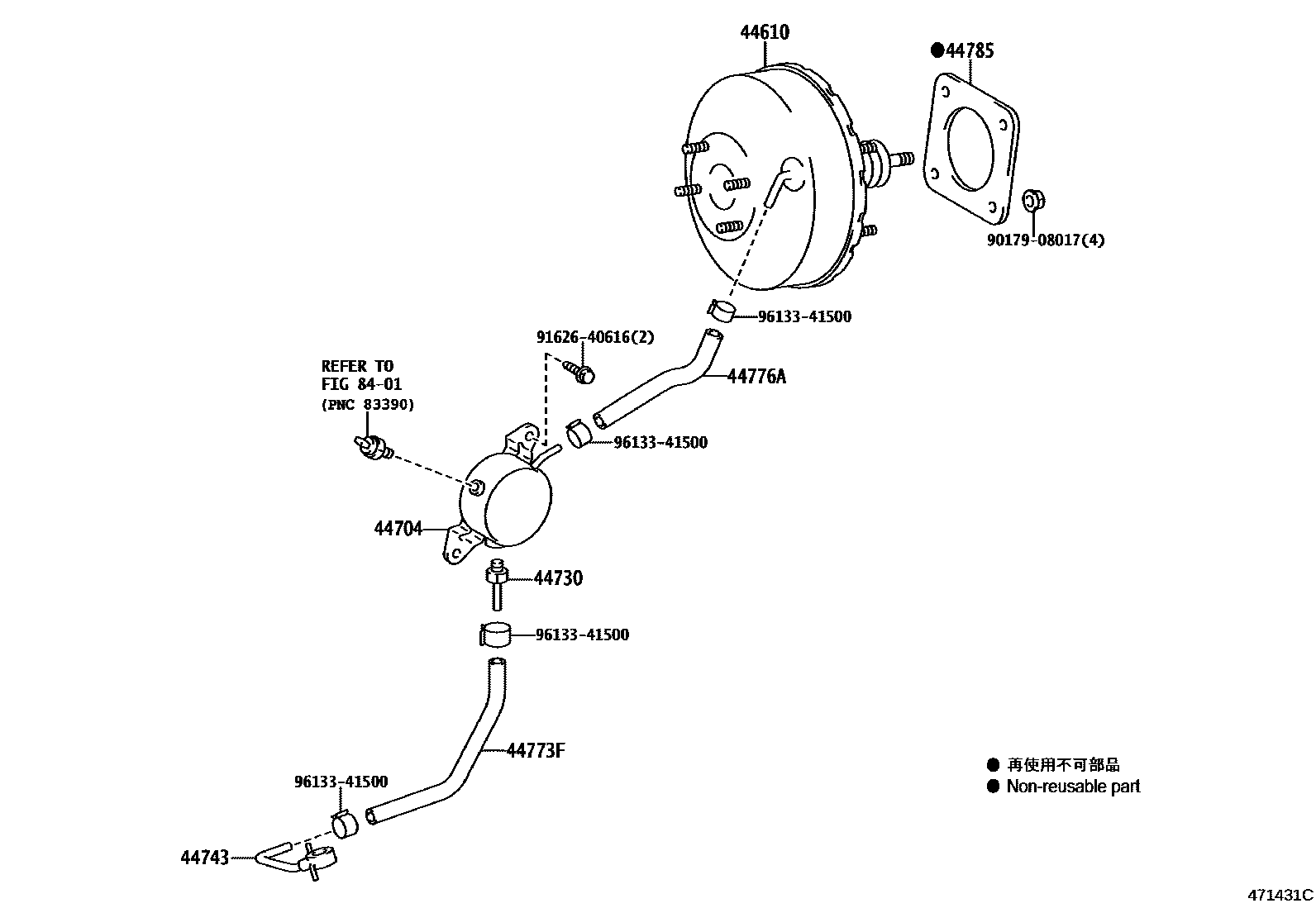

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

44610BOOSTER ASSY, BRAKE

main44610-43020iLXS10199601-199701

main44610-43021iLXS10199701-199801

sub44610-43022

main44610-43022iLXS10;LXS12..5F199801-200607

main44610-43070iLXS12..4H199802-200108

main44610-43080iYXS10..4HC199908-200808

main44610-43120iYXS10200312-200709

W/O(DESTINATION PACKAGE)

main44610-43150iTSS10200808-201310

main44610-43180iTSS10201310

44704RESERVOIR SUB-ASSY, VACUUM

main44704-22040iLXS10199601-199701

main44704-43010iLXS12199701-200607

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iYXS10..4H199908-200808

main44730-60050iLXS1#199601-200607

44743UNION(FOR VACUUM PUMP)

main90405-09136iLXS1#199601-200607

44773FHOSE, UNION TO CHECK VALVE

main44773-22450iLXS1#199601-200607

44776AHOSE, VACUUM RESERVOIR TO BRAKE BOOSTER

main44776-22040iLXS10199601-199701

main44776-43010iLXS1#199701-200607

44785GASKET, BRAKE BOOSTER

main44785-32010iLXS1#,YXS10199601-200808

8401

9017908017

main90179-08017

9162640616

main91626-40616

9613341500

main96133-41500

11 parts on this diagram · 3 diagrams in section
