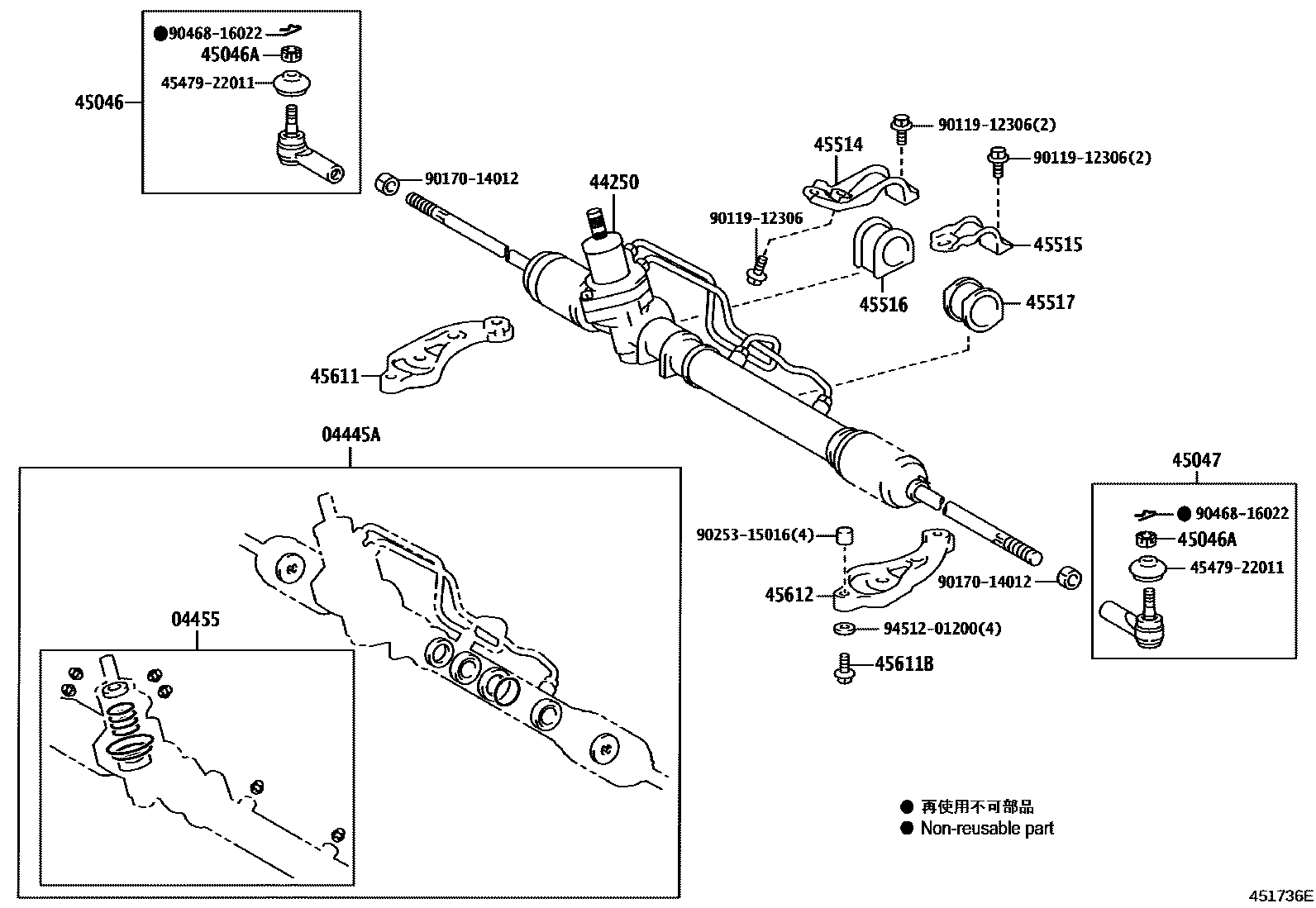

FRONT STEERING GEAR & LINK

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-43010i199601-200607

main04445-43020i200607-200709

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-43010i199601-200709

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-43010i199601-199901

sub44250-43011

main44250-43011i199901-200002

sub44250-43012

sub45514-43012

sub45514-43022

sub45516-43030

main44250-43012i200002-200209

sub44200-43013

45046END SUB-ASSY, TIE ROD, RH

main45046-29205i199601-200607

sub45046-29555

main45046-29555i200607-200808

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12002i199601-200808

45047END SUB-ASSY, TIE ROD, LH

main45046-29205i199601-200607

sub45046-29555

main45046-29555i200607-200808

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-43010i199601-200002

sub45514-43012

main45514-43012i200002-201310

main45514-43020i199908-200002

sub45514-43022

main45514-43022i200002-200808

main45514-43030i201310

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-22090i199908-200808

main45515-22100i199601-201310

main45515-43010i201310

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-43010i199601-200002

sub45516-43011

main45516-43030i200002-201310

main45516-43040i201310

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-22031i199601-200108

main45517-43010i200108-200808

45611ARM, STEERING KNUCKLE, RH

main45611-43010i199601-200808

45611BBOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER)

main90101-12111i199601-200808

45612ARM, STEERING KNUCKLE, LH

main45612-43010i199601-200808

4547922011SEAL, STEERING LINK JOINT DUST

main45479-22011

9011912306

main90119-12306

9017014012

main90170-14012

9025315016

main90253-15016

9046816022

main90468-16022

9451201200

main94512-01200

19 parts on this diagram · 4 diagrams in section
