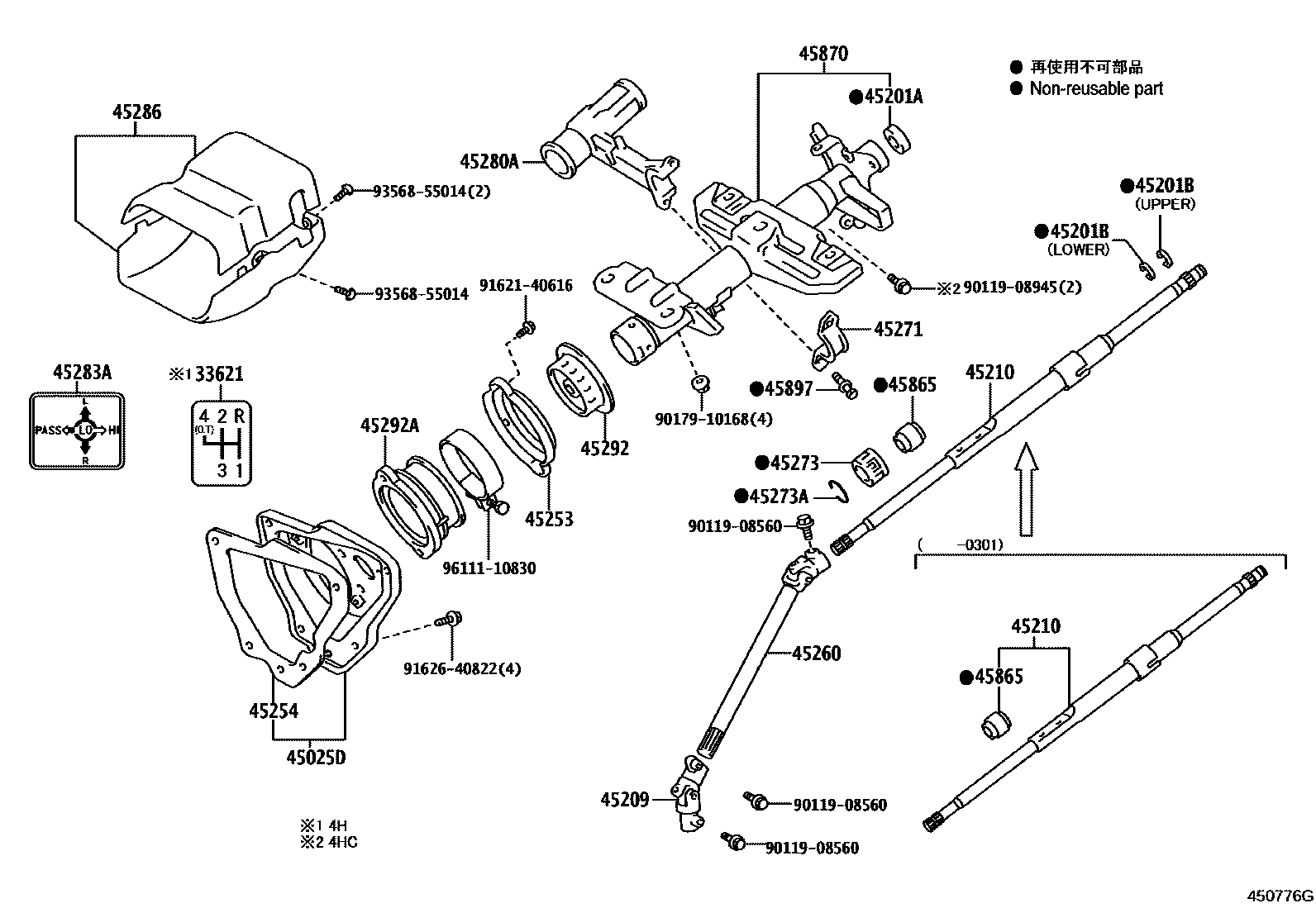

STEERING COLUMN & SHAFT
33621PLATE, CONTROL LEVER CAUTION
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,LOWER
T=1.20,UPPER
45210SHAFT ASSY, STEERING MAIN
45253COVER, STEERING COLUMN HOLE
45254SHIELD, STEERING COLUMN HOLE
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45271CLAMP, STEERING COLUMN, UPPER
45273BUSH, STEERING MAIN SHAFT
45273ARING, HOLE SNAP(FOR STEERING MAIN SHAFT BUSH)
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION
45286COVER, STEERING COLUMN
45292SEAL, MAIN SHAFT LOWER DUST
45292ACOVER, MAIN SHAFT LOWER DUST
45865COLLAR, STEERING MAIN SHAFT
45870TUBE ASSY, STEERING COLUMN
45897BOLT, STEERING LOCK SET
9011908560
main90119-08560
9011908945
main90119-08945
9017910168
main90179-10168
9162140616
main91621-40616
9162640822
main91626-40822
9356855014
main93568-55014
9611110830
main96111-10830
27 parts on this diagram · 1 diagram in section
