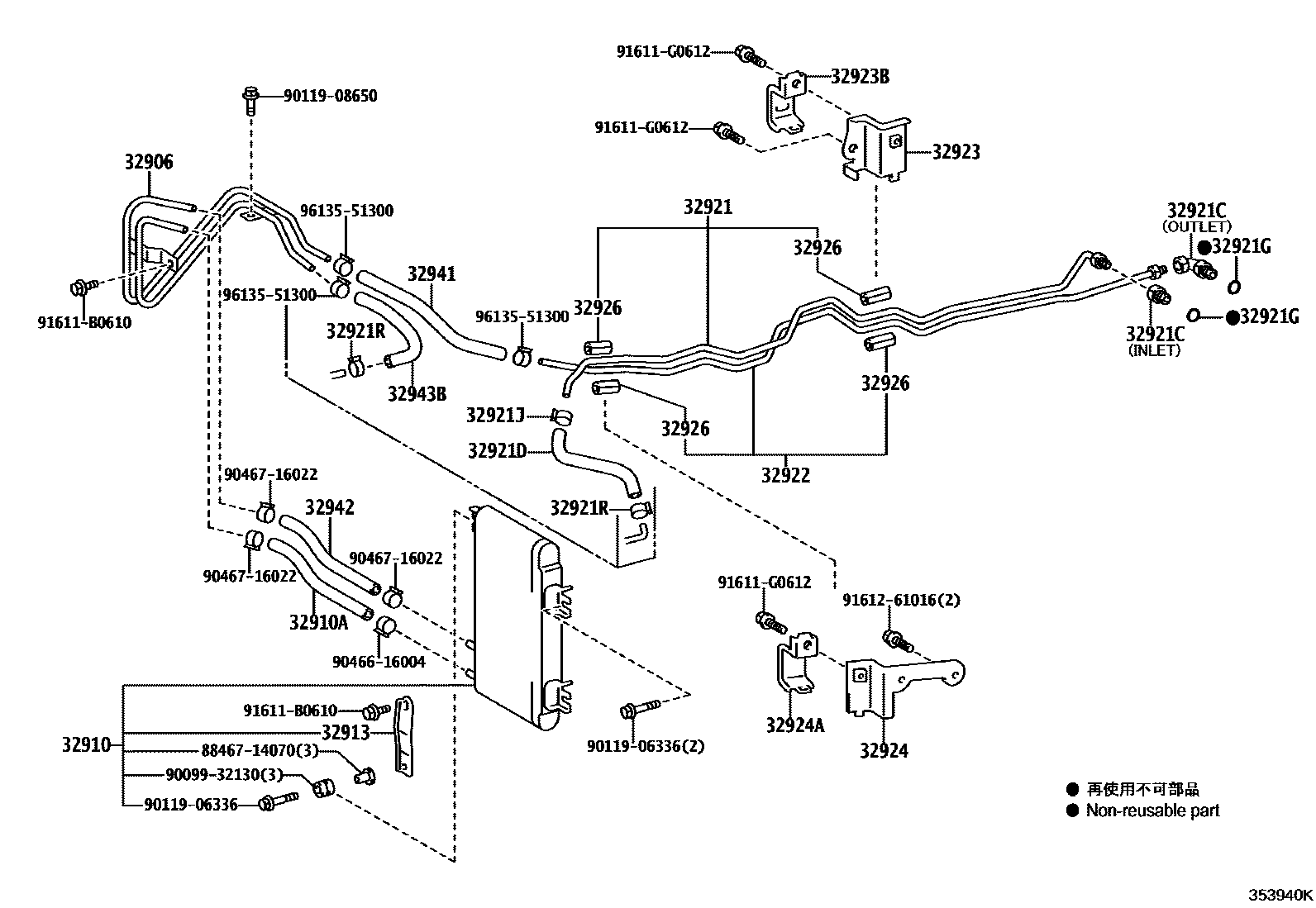

OIL COOLER & TUBE (ATM)

0001 1A43D 0002 1A340E

32906TUBE SUB-ASSY, OIL COOLER

main32907-43010iYXS10..4HC199908-200808

32910COOLER ASSY, OIL

main32910-43010iYXS10..4HC199908-200808

32910AHOSE, OIL COOLER WATER OUTLET

main32942-28190iYXS10..4HC199908-200808

32913BRACKET, OIL COOLER

main32913-43010iYXS10..4HC199908-200808

32921TUBE, OIL COOLER INLET, NO.1

main32921-43030iYXS10..4HC199908-200210

main32921-43070iYXS10..4HC200210-200808

main32921-43080iTSS10200808-201310

main32921-43081iTSS10201310

32921CUNION(FOR OIL COOLER TUBE)

main90404-16021iYXS10200709-200808

NO.1

main90404-16021iYXS10..4HC199908-200709

INLET

main90404-16029iTSS10200808

NO.1

main90407-16009iTSS10200808

NO.2

main90407-16010iYXS10200709-200808

NO.2

main90407-16010iYXS10..4HC199908-200709

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-43010iYXS10..4HC200108-200808

main32942-30110iYXS10..4HC199908-200108

main90445-15057iTSS10200808

sub32941-22310

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iYXS10..4HC199908-200808

main90301-11030iTSS10200808

32921JCLIP(FOR OIL COOLER HOSE)

main96135-51300iYXS10..4HC200108-200903

main96137-41501iTSS10200904

32921RCLIP, NO.2(FOR OIL COOLER HOSE)

main96135-51300iYXS10200108-200808

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-43030iYXS10..4HC199908-200210

main32922-43070iYXS10..4HC200210-200808

main32922-43080iTSS10200808-201310

main32922-43081iTSS10201310

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-43020iYXS10..4HC199908-200808

main32923-43050iTSS10200808

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32929-22050iYXS10..4HC199908-200808

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-30140iYXS10..4HC199908-200108

main32924-30150iYXS10..4HC199908-200108

W(AIR CONDITIONER)

main32924-30150iYXS10..4HC200108-200808

main32924-43030iTSS10200808

32924ACLAMP(FOR OIL COOLER TUBE, NO.2)

main32929-22050iYXS10..4HC199908-200808

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30020iYXS10..4HC199908-200808

L=35,ID=10

main32926-32010iTSS10200808

L=40,ID=10,NO.1

main32926-50040iTSS10200808

L=40,ID=10,NO.2

32941HOSE, OIL COOLER INLET, NO.1

main90445-15020iYXS10..4HC199908-200808

32942HOSE, OIL COOLER OUTLET, NO.1

main90445-17115iYXS10..4HC199908-200808

32943BHOSE, TRANSMISSION OIL COOLER

main32943-43030iYXS10..4HC199908-200906

sub32943-43031

main32943-43031iTSS10200907

8846714070CUSHION, COOLER CONDENSER, NO.1

main88467-14070

9009932130

main90099-32130

9011906336

main90119-06336

9011908650

main90119-08650

9046616004

main90466-16004

9046716022

main90467-16022

91611B0610

main91611-B0610

91611G0612

main91611-G0612

9161261016

main91612-61016

9613551300

main96135-51300

29 parts on this diagram · 2 diagrams in section
