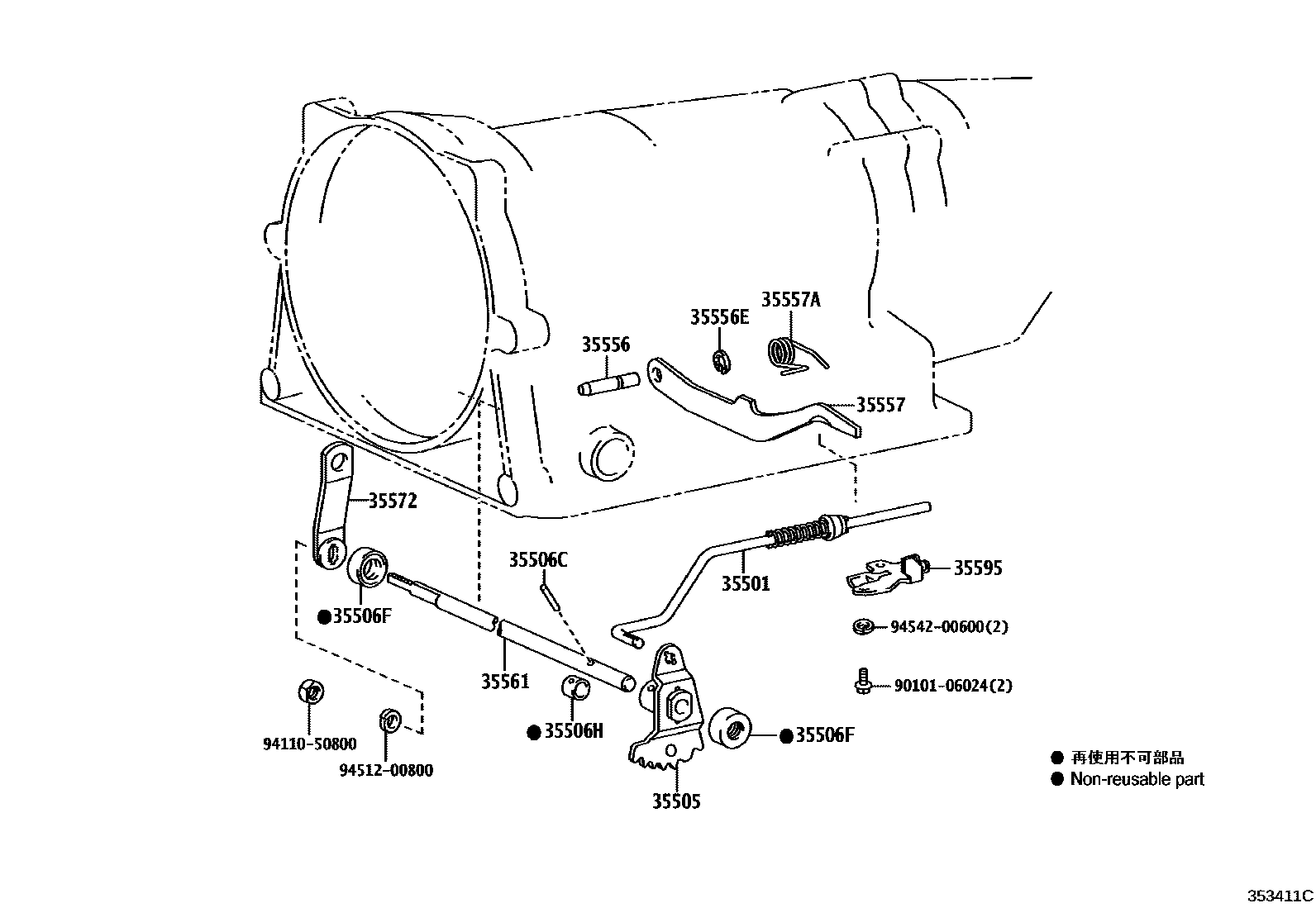

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A43D 0002 1A43D 0003 1A340E

35501ROD SUB-ASSY, PARKING LOCK

main35501-26020iYXS10..4HC200108-200709

main35501-60010iTSS10200808

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-22050iYXS10..4HC199908-200108

main35505-50020iTSS10200808

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iYXS10..4HC199908-200108

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-11003×2iYXS10..4HC199908-200108

main90311-12002×2iTSS10200808

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20003iYXS10..4HC199908-200108

main90560-20025iYXS10..4HC200302-200709

35556SHAFT, PARKING LOCK PAWL

main35556-26010iYXS10..4HC200108-200709

main35556-30020iTSS10200808

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iYXS10..4HC199908-200108

35557PAWL, PARKING LOCK

main35557-26020iYXS10..4HC199908-200108

main35557-60020iTSS10200808

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21001iYXS10200709-200808

main90508-21002iTSS10200808

35561SHAFT, MANUAL VALVE LEVER

main35561-30070iTSS10200808-201801

main35561-40010iYXS10..4HC199908-200108

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-22040iYXS10..4HC200108-200709

main35572-30060iTSS10200808

35595BRACKET, PARKING LOCK PAWL

main35595-40010iYXS10..4HC199908-200108

main35595-60010iTSS10200808

9010106024

main90101-06024

9411050800

main94110-50800

9451200800

main94512-00800

9454200600

main94542-00600

16 parts on this diagram · 3 diagrams in section
