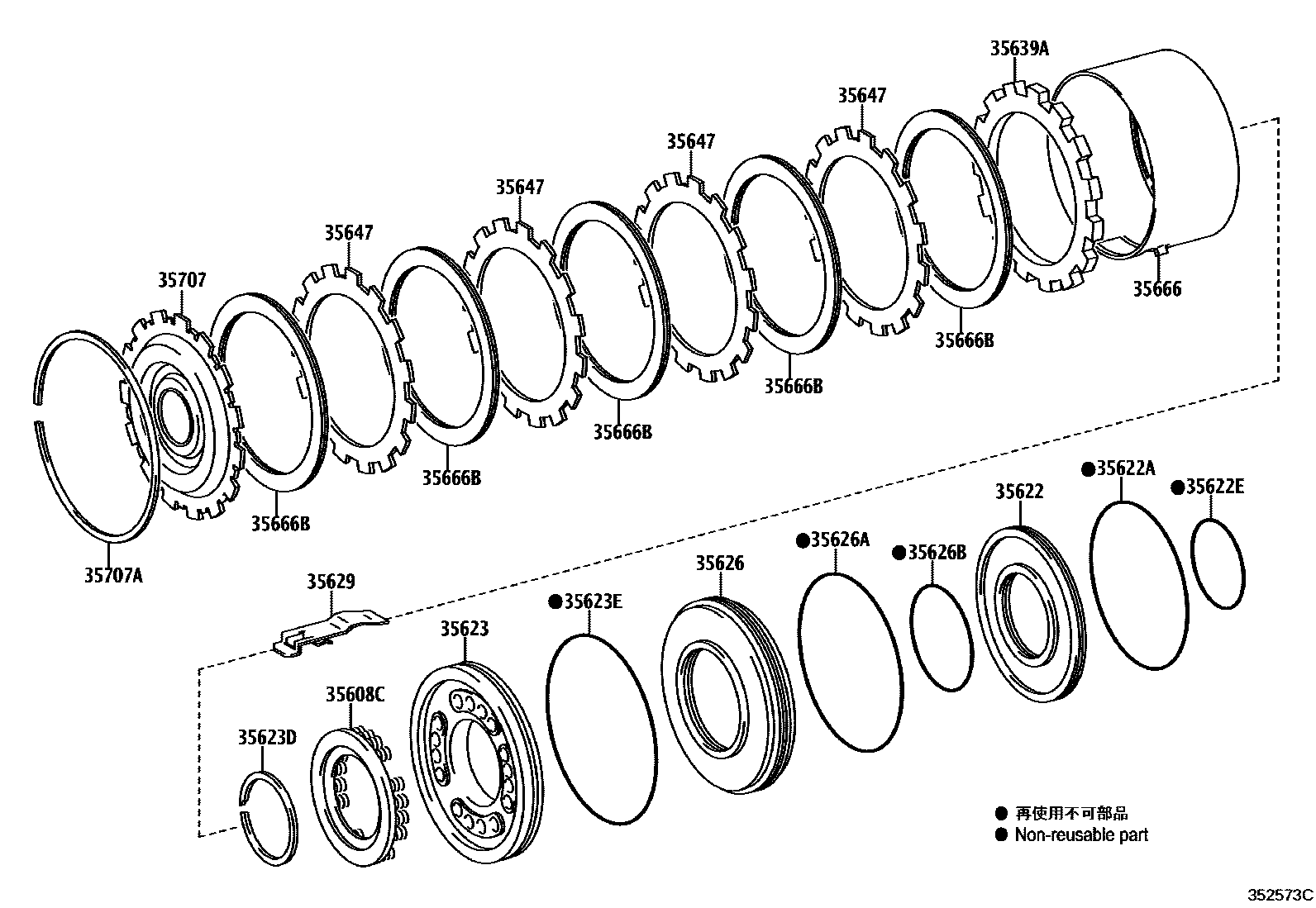

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)
35608CSPRING SUB-ASSY, NO.3 BRAKE PISTON RETURN
35622ARING (FOR BRAKE PISTON OUTER)
35622ERING, O (FOR BRAKE PISTON NO.2)
INNER
OUTER
35623PISTON, BRAKE, NO.3
35623DRING, SHAFT SNAP (FOR BRAKE)
35623ERING, O, NO.1 (FOR BRAKE PISTON)
35626ARING (FOR BRAKE REACTION SLEEVE OUTER)
35626BRING (FOR BRAKE REACTION SLEEVE INNER)
35629SPRING (1ST & REVS BRAKE PLATE STOPPER)
35639APLATE, CLUTCH PRESSURE (FOR BRAKE)
NO MARK
MARK 325
MARK 350
MARK 375
MARK 400
MARK 425
35647PLATE, CLUTCH, NO.2
35666TUBE, BRAKE APPLY
35666BDISC, CLUTCH (FOR BRAKE)
35707RACE SUB-ASSY, 1 WAY CLUTCH, INNER
35707ARING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE)
17 parts on this diagram · 2 diagrams in section
