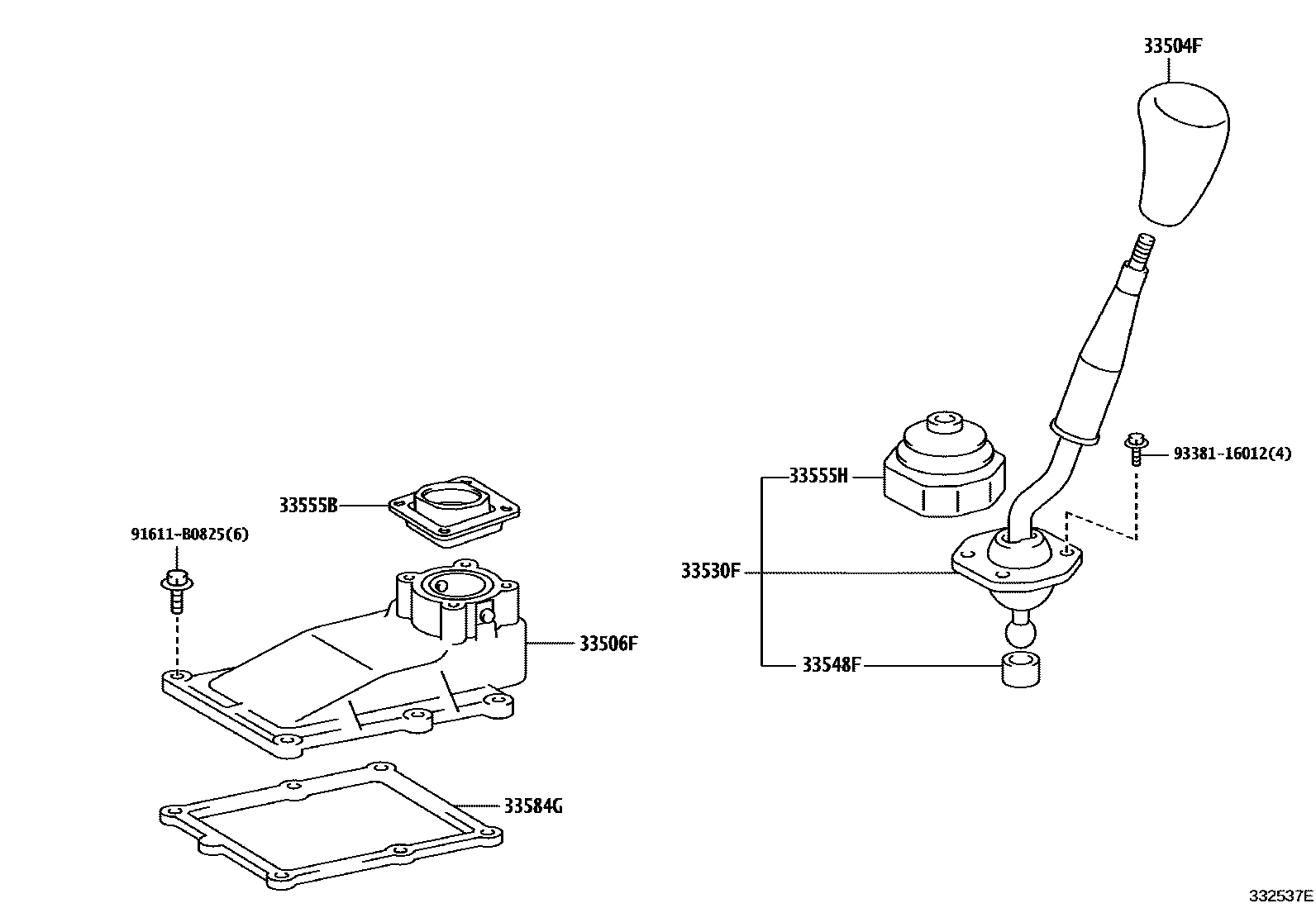

SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12180-B7iLXS12200108-200607

DK.GRAY,TRIM1#

sub33504-12180

main33504-12180-P0iLXS1#..5F199601-200108

SHADOW GRAY,TRIM1#

sub33504-12180

main33542-30240-B3iTSS10200808

DK.GRAY,TRIM1#

sub33542-30240

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33570-43010iLXS1#..5F199601-200607

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-43010iLXS1#..5F199601-200607

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-22020iLXS1#..5F199601-200607

33555BOOT, SHIFT LEVER

main33555-22080iTSS10200808

33555BBOOT, SHIFT & SELECT LEVER

main33555-22090iLXS1#..5F199601-200607

33555HBOOT, SHIFT & SELECT LEVER, NO.4

main33555-22050iLXS1#..5F199601-200607

33584GGASKET, NO.2 (FOR FLOOR SHIFT)

main33584-30010iLXS12199601-200607

91611B0825

main91611-B0825

9338116012

main93381-16012

10 parts on this diagram · 2 diagrams in section
