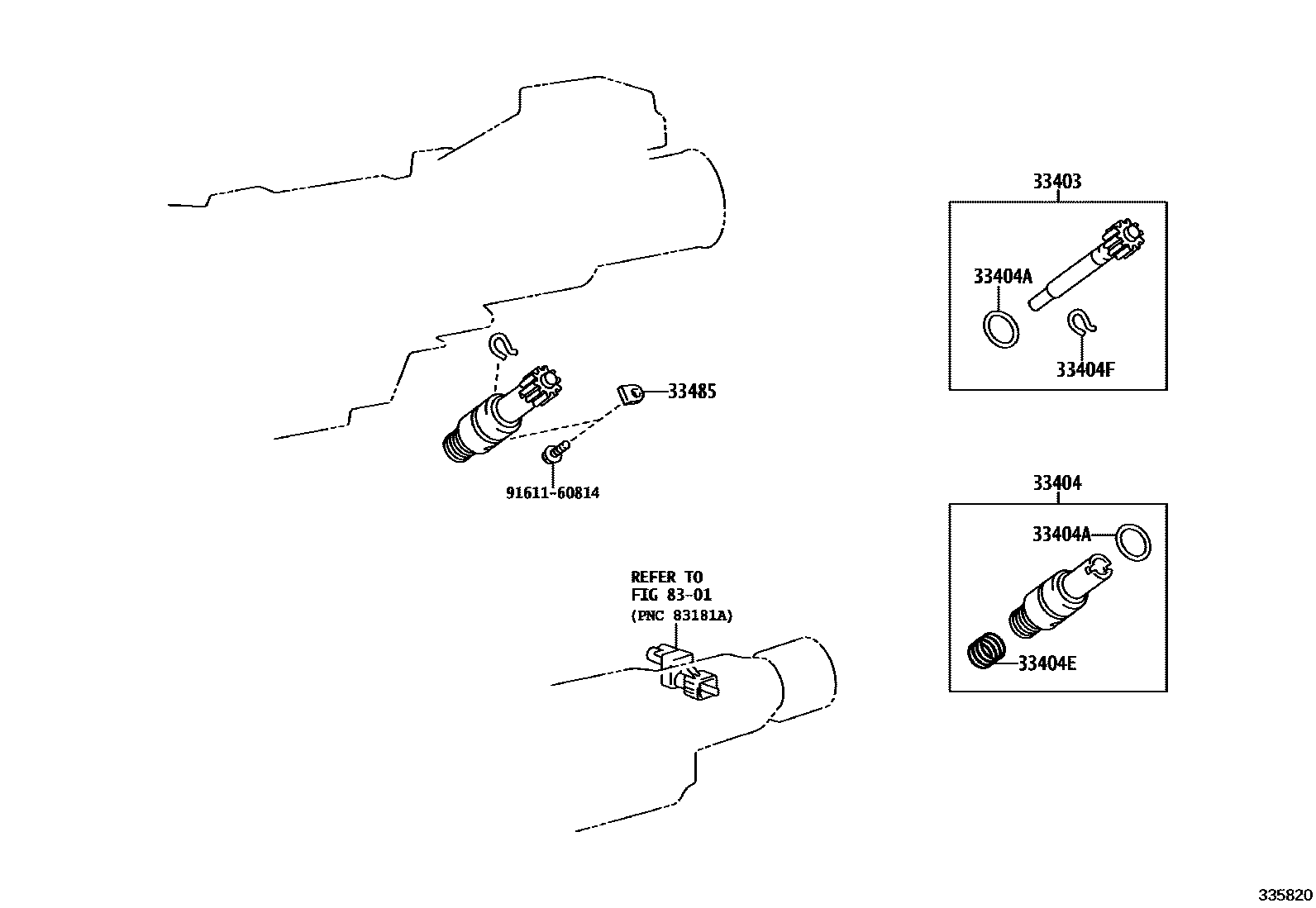

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1N45 0002 1W55,W57

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-29115iLXS12200108-200607

N=33,MARK 33:11

main33403-29125iLXS1#..5F199601-200108

N=32,MARK 32:10

main33482-39025iLXS12..4H199802-200108

N=19,MARK 19:6

main33482-39035iYXS10..4H199601-200312

N=21,MARK 21:6

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-22010iLXS1#..5F199601-200607

main33404-35010iYXS10..4H199601-200312

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iLXS1#,YXS10..4H199601-200312

main96711-24030iLXS1#..5F199601-200607

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iLXS1#,YXS10..MTM199601-200607

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iLXS1#,YXS10..MTM199601-200607

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iLXS1#,YXS10..MTM199601-200607

8301

9161160814

main91611-60814

8 parts on this diagram · 2 diagrams in section
