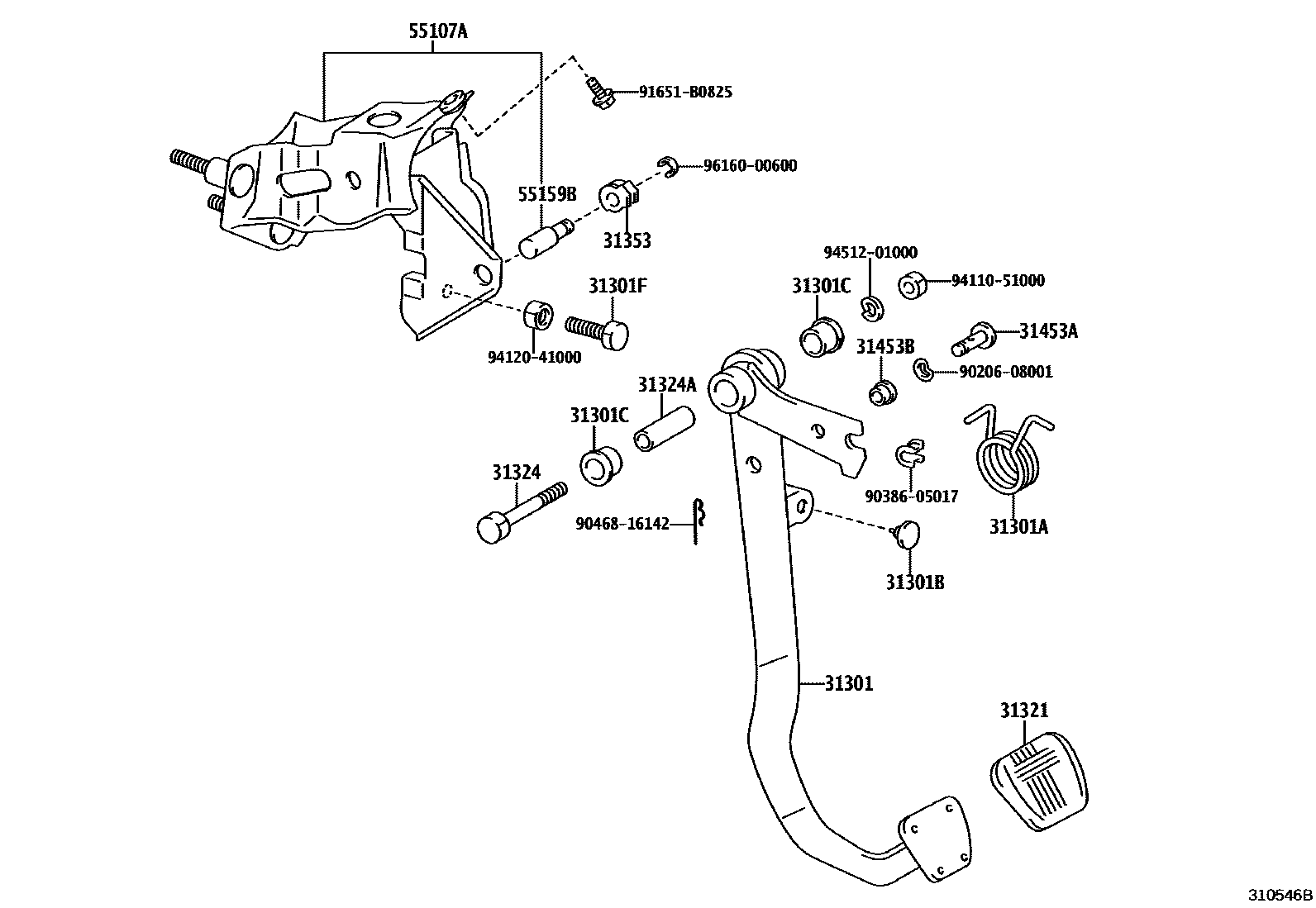

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-43010iLXS12,YXS10..MTM199805-200607

main31301-43011iLXS1#199705-199805

sub31301-43010

31301ASPRING(FOR CLUTCH PEDAL)

main90949-03037iLXS12199802-200607

main90949-03039iLXS10199601-199701

main90949-03068iYXS10..4H199701-200312

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iLXS1#,YXS10..MTM199601-200607

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iLXS1#,YXS10..MTM199601-200607

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iLXS1#,YXS10..MTM199601-200607

31321PAD, CLUTCH PEDAL

main31321-14020iLXS1#,YXS10..MTM199601-200607

31324SHAFT, CLUTCH PEDAL

main90101-10015iLXS1#,YXS10..MTM199601-200607

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iLXS1#,YXS10..MTM199601-200607

31353HOLDER, CLUTCH PEDAL SPRING

main31353-14010iLXS1#,YXS10..MTM199601-200607

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iLXS1#,YXS10..MTM199601-200607

L=23.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iLXS1#,YXS10..MTM199601-200607

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-43010iLXS1#,YXS10..MTM199601-200607

55159BPIN, CLUTCH PEDAL TURNOVER SPRING

main55159-14010iLXS1#,YXS10..MTM199601-200607

9020608001

main90206-08001

9038605017

main90386-05017

9046816142

main90468-16142

91651B0825

main91651-B0825

9411051000

main94110-51000

9412041000

main94120-41000

9451201000

main94512-01000

9616000600

main96160-00600

21 parts on this diagram · 4 diagrams in section
