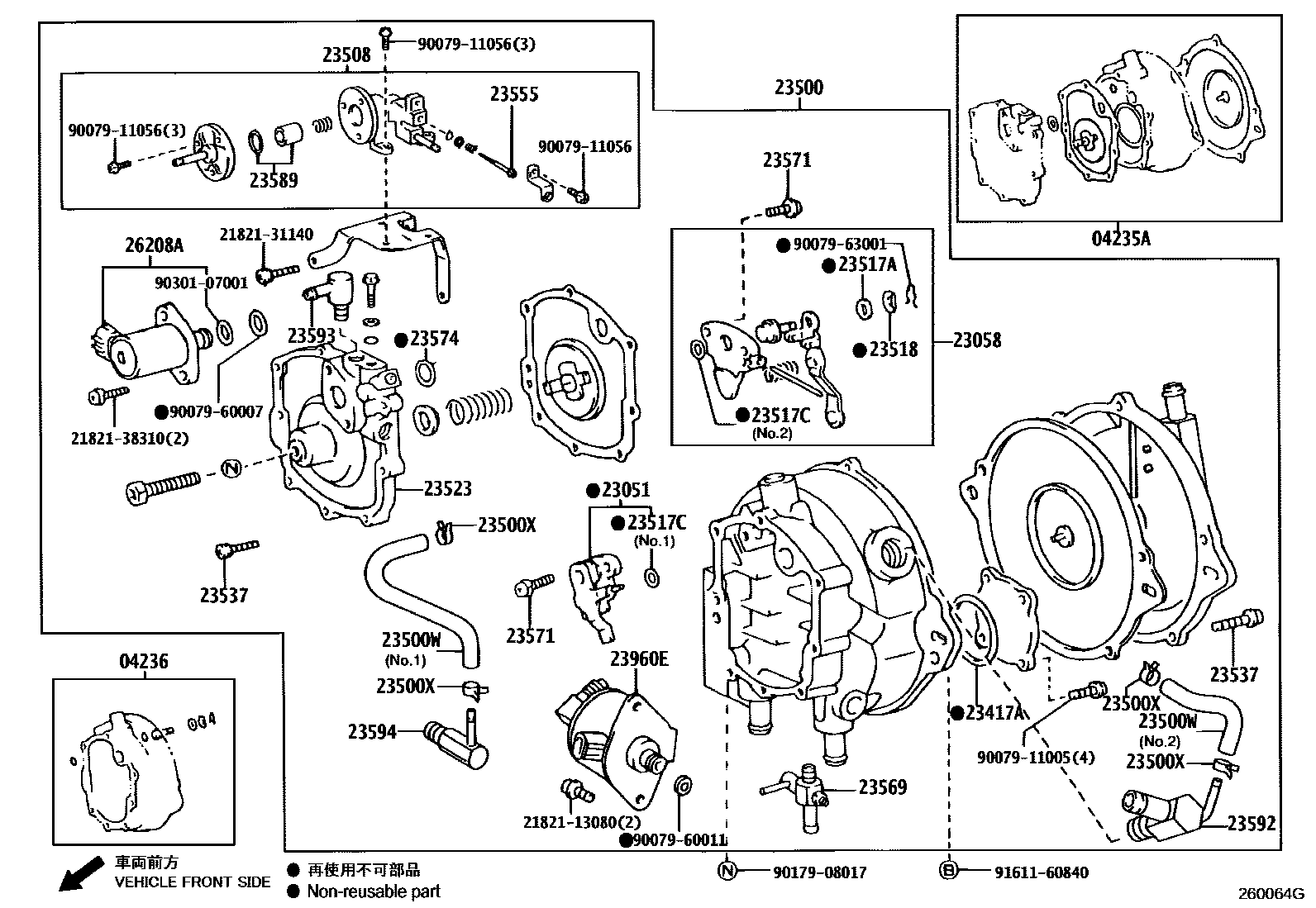

LPG OR CNG REGULATOR
04235ADIAPHRAGM KIT, LPG REGULATOR, W/O VALVE
HONG KONG SPEC
04236VALVE KIT, LPG REGULATOR
HONG KONG SPEC
23051VALVE SUB-ASSY, 1ST
HONG KONG SPEC
23058VALVE SUB-ASSY, 2ND
HONG KONG SPEC
23417ARING, O
23500REGULATOR ASSY, LPG(CNG)
HONG KONG SPEC
HONG KONG SPEC
23500WHOSE, FUEL(FOR LPG REGULATOR)
NO.2
NO.1
23500XCLIP(FOR LPG REGULATOR FUEL HOSE)
23508FILTER SUB-ASSY, LPG REGULATOR
23517AWASHER(FOR ELASTIC FACE VALVE SET)
23517CGASKET(FOR ELASTIC FACE VALVE)
NO.1
NO.2
23518WASHER, WAVE(FOR ELASTIC FACE VALVE SET)
23523COVER, 1ST REGULATOR
23537SCREW(FOR 2ND REGULATOR COVER SET)
23555SCREW, IDLE ADJUST
23569COCK, DRAIN
23571SCREW(FOR VACUUM LOCK DIAPHRAGM RING SET)
23574RING, O, NO.1(FOR BULB)
23589FILTER, LPG REGULATOR
23592UNION, NO.2, FUEL HOSE
23593UNION, NO.3
HONG KONG SPEC
23594UNION, NO.4, WATER HOSE
26208AVALVE SUB-ASSY, SOLENOID(FOR LPG REGULATOR)
2182113080SCREW, 2ND THROTTLE VALVE SET
main21821-13080
2182131140SCREW, 2ND THROTTLE VALVE SET
main21821-31140
2182138310SCREW, 2ND THROTTLE VALVE SET
main21821-38310
9007911005
main90079-11005
9007911056
main90079-11056
9007960007
main90079-60007
9007960011
main90079-60011
9007963001
main90079-63001
9017908017
main90179-08017
9030107001
main90301-07001
9161160840
main91611-60840
35 parts on this diagram · 2 diagrams in section
