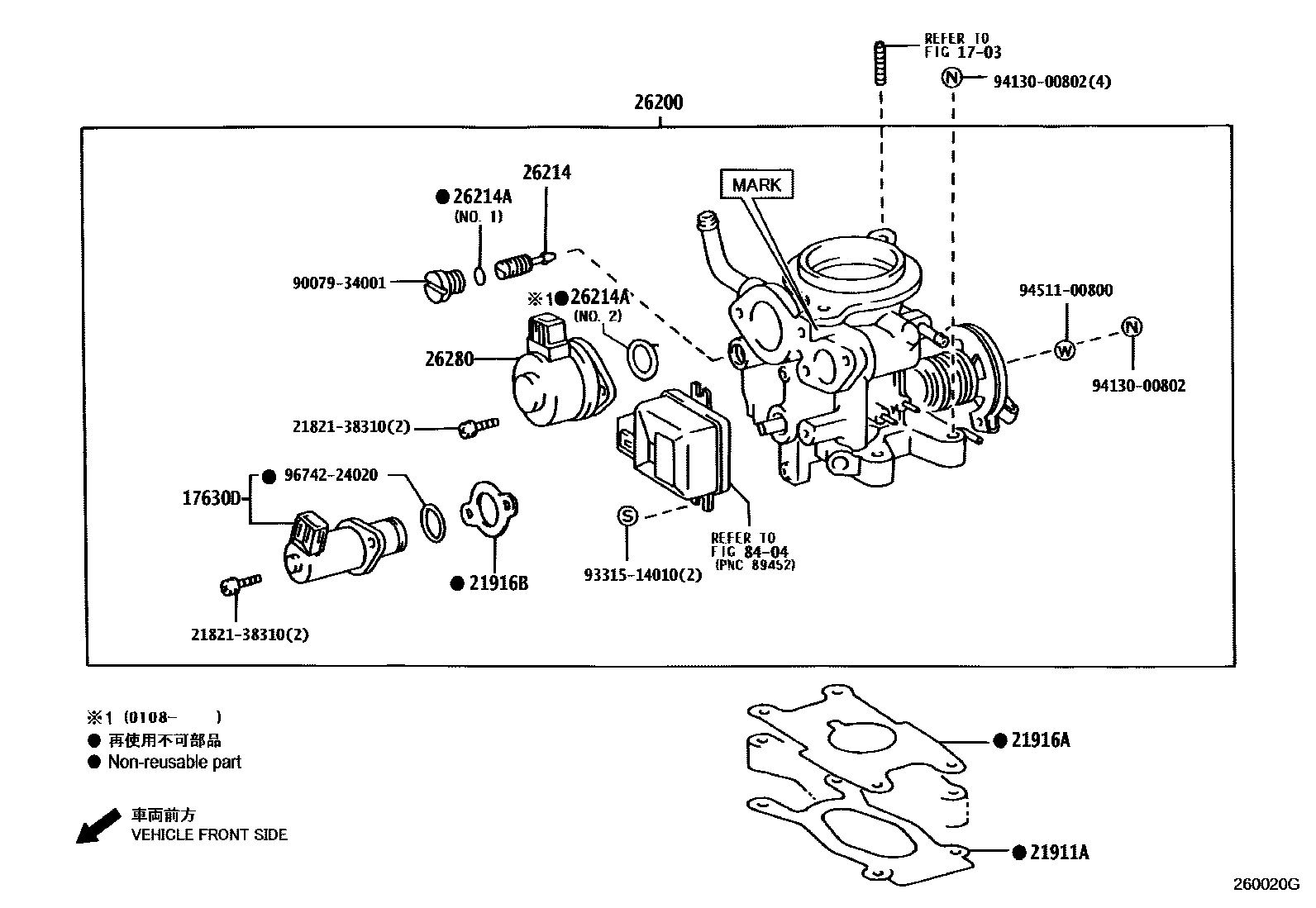

LPG CARBURETOR

1703

17630DVALVE ASSY, AIR CONTROL

main17630-70041i3YPE..YXS10199908-200808

21911AGASKET, CARBURETOR, NO.1

main21911-72011i3YPE..YXS10199908-200808

21916AGASKET, CARBURETOR, NO.2

main21916-72012i3YPE..YXS10199908-200808

21916BGASKET, LPG FUEL HOSE UNION

main21916-73010i3YPE..YXS10199908-200808

26200CARBURETOR ASSY, LPG

main26200-73190i3YPE..YXS10199908-200108

main26200-73191i3YPE..YXS10200108-200508

MARK 73191

sub26200-73201

main26200-73220i3YPE..YXS10200508-200709

MARK 73220

main26200-73220i3YPE..YXS10200709-200808

26214SCREW, POWER ADJUST

main26214-73130i3YPE..YXS10199908-200808

26214ARING, O(FOR POWER ADJUST)

main90079-60004i3YPE..YXS10200108-200808

NO.2

main90079-60005i3YPE..YXS10199908-200808

NO.1

26280MOTOR ASSY, AIR FUEL RATIO CONTROL

main26280-73030i3YPE..YXS10199908-200108

main26280-73050i3YPE..YXS10200108-200808

8404

2182138310SCREW, 2ND THROTTLE VALVE SET

main21821-38310

9007934001

main90079-34001

9331514010

main93315-14010

9413000802

main94130-00802

9451100800

main94511-00800

9674224020

main96742-24020

16 parts on this diagram · 1 diagram in section
