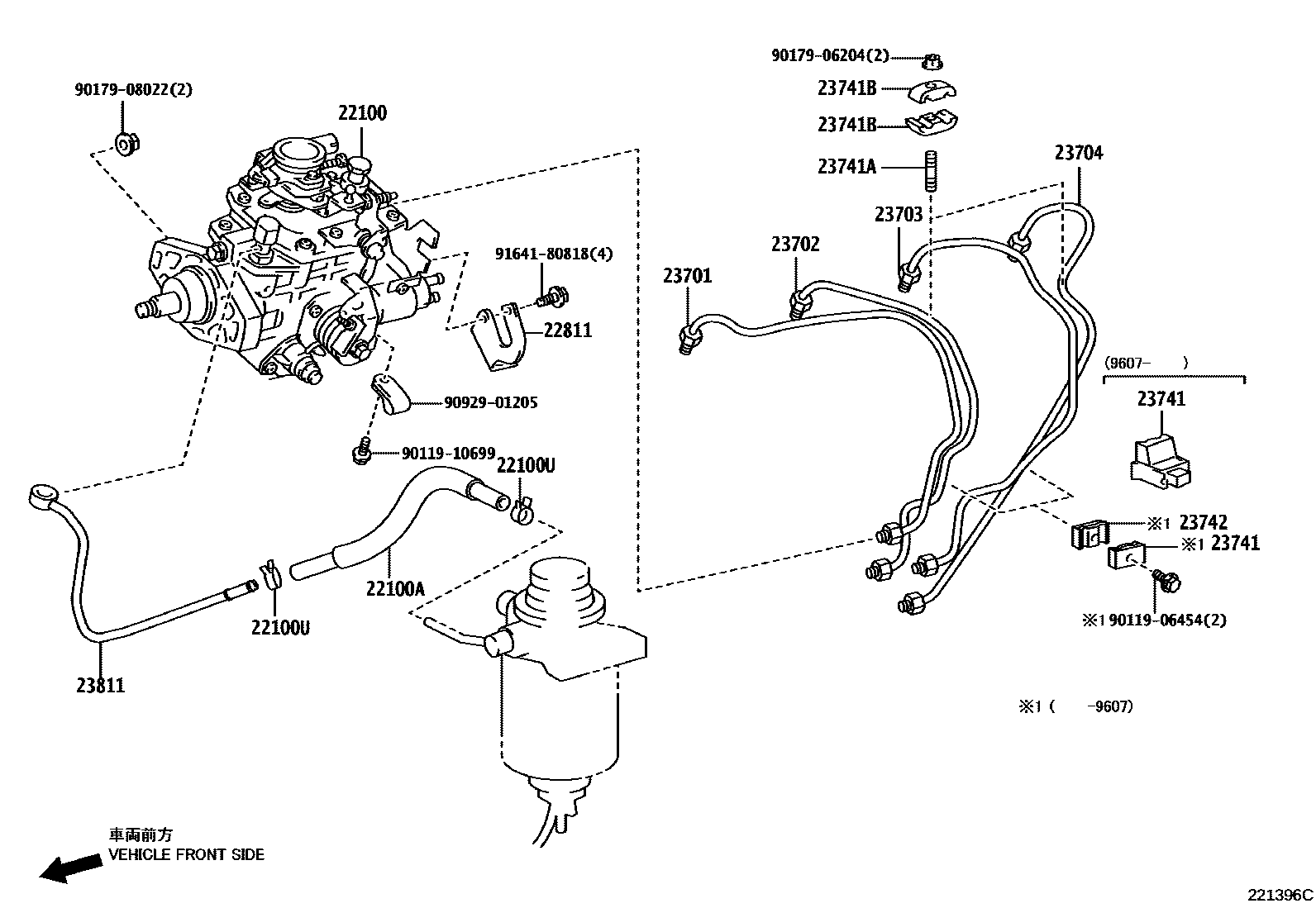

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-5B490i2L..LXS10199601-199901

main22100-5B810i5L..LXS12199802-200607

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main90447-14057i2L,5L..LXS1#199601-200607

*H,L=395

22100UCLIP, HOSE FUEL(FOR INJECTION PUMP)

main90467-13001i2L,5L..LXS1#199601-200108

sub96135-51300

main96135-51300i5L..LXS12200108-200607

22811STAY, INJECTION PUMP, NO.1

main22811-54041i2L,5L..LXS1#199601-199804

sub22811-54042

main22811-54042i2L,5L..LXS1#199804-200607

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54140i2L,5L..LXS1#199601-200607

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54140i2L,5L..LXS1#199601-200607

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54100i2L,5L..LXS1#199601-200607

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54100i5L..LXS12199601-200607

23741CLAMP, INJECTION PIPE, NO.1

main23741-54010i2L..LXS10199601-199607

main23741-54030i2L,5L..LXS1#199607-200607

23741ABOLT, STUD(FOR INJECTION PIPE CLAMP)

main90116-06095i5L..LXS12199601-200607

23741BCLAMP, INJECTION PIPE

main23741-56010i2L,5L..LXS1#199601-200607

23742CLAMP, INJECTION PIPE, NO.2

main23742-05010i2L..LXS10199607-199901

main23742-54010i2L..LXS10199601-199607

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-54151i2L,5L..LXS1#199601-200607

9011906454

main90119-06454

9011910699

main90119-10699

9017906204

main90179-06204

9017908022

main90179-08022

9092901205

main90929-01205

9164180818

main91641-80818

19 parts on this diagram · 1 diagram in section
