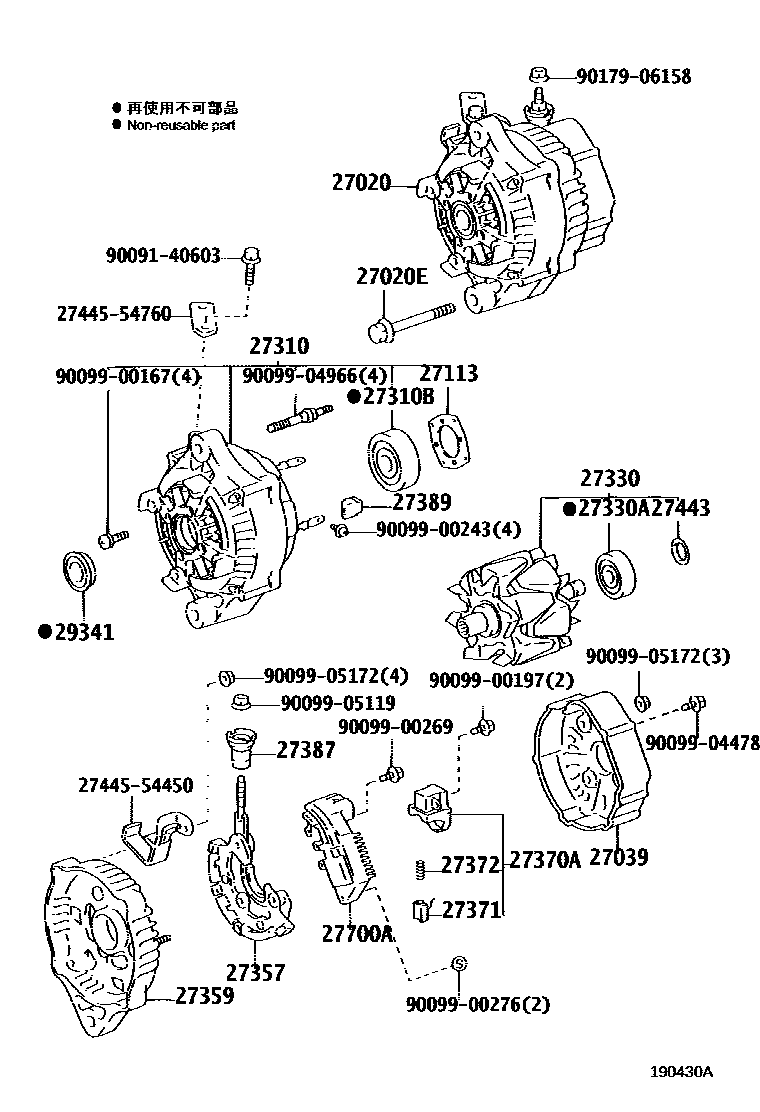

ALTERNATOR

0001 112V 70A 0002 112V 70A 0003 112V 60A 0004 112V 70A 0005 112V 70A 0006 112V 80A 0007 112V 60A,12V 70A 0008 112V 100A

27020ALTERNATOR ASSY

main27060-54200i2L,5L..LXS1#199601-200102

12V 70A

sub27060-54400

main27060-54400i5L..LXS12200102-200607

12V 70A

main27060-73030i3YPE..YXS10..4H199908-200108

12V 60A

sub27060-73050

main27060-73040i3YPE..YXS10..4HC199908-200808

12V 70A

main27060-73050i3YPE..YXS10..4H200108-200312

12V 60A

main27060-75430i1TRFPE..TSS10200808-201011

12V 80A

sub27060-75431

main27060-75480i1TRFPE..TSS10201011-201310

12V 100A

sub27060-75481

main27060-75481i1TRFPE..TSS10201310

12V 100A

27020EBOLT(FOR ALTERNATOR)

main90105-10287i2L,5L..LXS1#199601-200607

main91552-81085i1TRFPE..TSS10200808

27039COVER, ALTERNATOR REAR END

main27039-16380i2L,5L,3YPE..LXS1#,YXS10..MTM199701-200108

main27039-55080i5L..LXS12199908-200304

sub27039-70470

main27039-70470i3YPE..YXS10..4HC200104-200108

main27039-73020i2L..LXS10199601-199701

sub27039-16380

main27039-75430i1TRFPE..TSS10201011

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-42010i3YPE..YXS10..4HC199908-200108

main27312-64130i2L,5L..LXS1#199601-200108

main27312-70200i3YPE..YXS10..4H199908-200108

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-43132i3YPE..YXS10..4H199908-200108

main27310-54630i2L,5L..LXS1#199601-200102

sub27310-54500

main27310-54650i5L..LXS12200102-200108

main27310-73040i3YPE..YXS10..4HC199908-200108

main27310-75430i1TRFPE..TSS10201011

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10165i2L,5L..LXS1#199601-200108

main90099-10177i3YPE..YXS10..4H199908-200108

main90099-10191i3YPE..YXS10..4HC199908-200108

sub90099-10230

main90099-10230i1TRFPE..TSS10201011

27330ROTOR ASSY, ALTERNATOR

main27330-43132i3YPE..YXS10..4H199908-200108

main27330-43200i3YPE..YXS10..4HC199908-200808

main27330-54860i5L..LXS12200102-200607

sub27330-64190

main27330-64130i2L,5L..LXS1#199601-200102

main27330-70360i3YPE..YXS10..4H200108-200312

sub27330-43200

main27330-75380i1TRFPE..TSS10200808-201011

main27330-75430i1TRFPE..TSS10201011

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i2L,5L,3YPE..LXS1#,YXS10199601-200108

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-16310i3YPE..YXS10..4H200108-200312

main27357-16380i2L,5L,3YPE..LXS1#,YXS10..MTM199701-200108

main27357-22050i1TRFPE..TSS10200808-201011

main27357-55080i3YPE..YXS10..4HC199908-200808

main27357-63020i2L..LXS10199601-199701

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16181i2L..LXS10199601-199701

main27359-16182i2L,5L..LXS1#199701-200102

main27359-54420i5L..LXS12200102-200108

main27359-72132i3YPE..YXS10..4H199908-200108

main27359-73040i3YPE..YXS10..4HC199908-200108

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-75380i1TRFPE..TSS10200808-201011

main27370-75430i1TRFPE..TSS10201011

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-58320i2L,5L..LXS1#199601-200102

main27370-70350i3YPE..YXS10..4H199908-200808

main27370-73020i3YPE..YXS10..4H199908-200108

main27370-75060i5L..LXS12200102-200607

27371BRUSH, ALTERNATOR

main27371-70300i2L,5L..LXS1#199601-200102

main27371-73020i3YPE..YXS10..4H199908-200108

27372SPRING, ALTERNATOR BRUSH

main27372-63020i2L,5L..LXS1#199601-200102

sub27372-87501

main27372-73020i3YPE..YXS10..4H199908-200108

27387INSULATOR, TERMINAL

main27387-42021i5L..LXS12;3YPE..YXS10..4HC199908-200108

main27387-70170i2L..LXS10199601-199705

main27387-70171i2L,5L,3YPE..LXS1#,YXS10..MTM199705-200108

27389INSULATOR, TERMINAL

main27389-42010i5L..LXS12;3YPE..YXS10..4HC199908-200108

main27389-63020i2L,5L,3YPE..LXS1#,YXS10..MTM199601-200108

27443COVER, ALTERNATOR BEARING

main27443-63020i2L,5L,3YPE..LXS1#,YXS10199601-200108

27700AREGULATOR ASSY, GENERATOR

main27700-50030i5L..LXS12199608-200607

main27700-54060i2L..LXS10199601-199608

sub27700-50030

main27700-70040i3YPE..YXS10..4H199908-200808

main27700-75040i1TRFPE..TSS10200808-201011

sub27700-75041

29341SEAL, ALTERNATOR OIL

main29341-64130i2L,5L..LXS1#199601-200108

2744554450

main27445-54450

2744554760

main27445-54760

9009140603

main90091-40603

9009900167

main90099-00167

9009900197

main90099-00197

9009900243

main90099-00243

9009900269

main90099-00269

9009900276

main90099-00276

9009904478

main90099-04478

9009904966

main90099-04966

9009905119

main90099-05119

9009905172

main90099-05172

9017906158

main90179-06158

32 parts on this diagram · 8 diagrams in section
