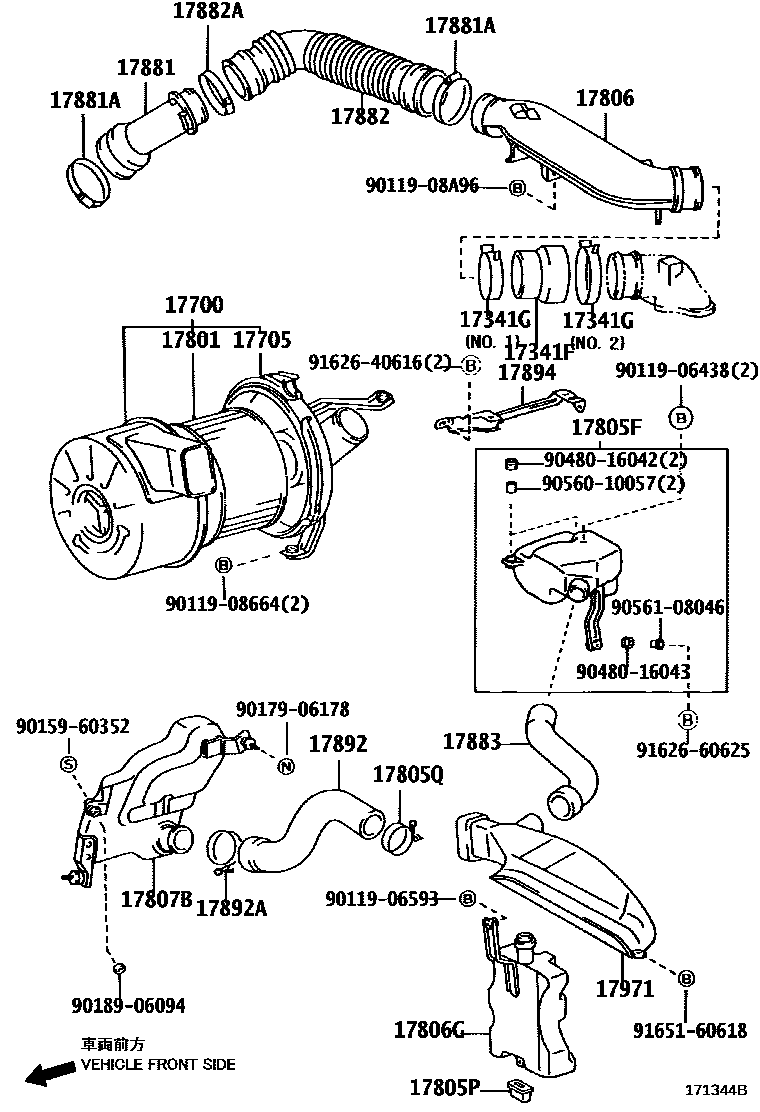

AIR CLEANER

0001 1 0002 1 0003 1 0004 1

17341FHOSE, AIR, NO.1

main17341-54010i2L,5L..LXS1#199601-200607

main17341-73120i3YPE..YXS10199908-200808

17341GCLAMP OR CLIP(FOR AIR HOSE, NO.1)

main90467-17126i3YPE..YXS10199908-200808

main90467-56001i5L..LXS12199601-200607

NO.1

main90467-60001i5L..LXS12199601-200607

NO.2

17700CLEANER ASSY, AIR

main17700-54860i2L,5L..LXS1#199601-200607

main17700-73350i3YPE..YXS10199908-200011

sub17700-73351

main17700-73351i3YPE..YXS10200011-200808

main17700-75510i1TRFPE..TSS10200808

17705CAP SUB-ASSY, AIR CLEANER

main17705-54220i2L,5L..LXS1#199601-200607

main17705-73150i3YPE..YXS10199908-201111

main17705-75350i1TRFPE..TSS10201112

sub17705-73150

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-46060i1TRFPE..TSS10200808

main17801-54090i2L,5L..LXS1#199601-200607

main17801-70040i3YPE..YXS10199908-200808

17805FRESONATOR SUB-ASSY, INTAKE AIR

main17805-54111i2L..LXS10199601-199802

sub17805-54340

main17805-54340i2L,5L..LXS1#199802-200607

17805PCUSHION, INTAKE AIR RESONATOR

main90541-14002i2L,5L..LXS1#199601-200607

17805QCLAMP, HOSE(FOR INTAKE AIR RESONATOR NO.3)

main96111-10480i2L,5L..LXS1#199601-200607

17806PIPE SUB-ASSY, AIR CLEANER, NO.2

main17103-54090i5L..LXS12199601-200607

17806GRESONATOR SUB-ASSY, INTAKE AIR, NO.2

main17806-54110i2L,5L..LXS1#199601-200607

17807BRESONATOR SUB-ASSY, INTAKE AIR, NO.3

main17807-54030i2L..LXS10199601-199802

main17870-54020i2L,5L..LXS1#199802-200607

17881HOSE, AIR CLEANER, NO.1

main17881-54360i2L..LXS10199601-199802

sub17881-54361

main17881-73160i3YPE..YXS10199908-200808

main17881-75240i1TRFPE..TSS10200808

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-88001i2L..LXS10199601-199802

main96111-10710i3YPE..YXS10199908-200808

CONNECTOR SIDE

main96111-10800i1TRFPE..TSS10200808

NO.1

main96111-10850i3YPE..YXS10199908-200808

AIR CLEANER SIDE

main96111-10900i1TRFPE..TSS10200808

NO.2

17882HOSE, AIR CLEANER, NO.2

main17882-54261i2L..LXS10199601-199802

sub17882-54262

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-80001i2L..LXS10199601-199802

sub90460-80006

17883HOSE, AIR CLEANER, NO.3

main17883-54111i2L,5L..LXS1#199601-200607

17892HOSE, INTAKE AIR RESONATOR

main17892-54010i2L,5L..LXS1#199601-200607

17892ACLAMP(FOR INTAKE AIR RESONATOR HOSE)

main96111-10530i2L,5L..LXS1#199601-200607

17894BRACKET, RESONATOR

main17894-54050i2L,5L..LXS1#199601-200607

17971INLET, COOL AIR, NO.1

main17971-54020i2L..LXS10199601-199802

sub17971-54040

main17971-54040i2L,5L..LXS1#199802-200607

9011906438

main90119-06438

9011906593

main90119-06593

9011908664

main90119-08664

9011908A96

main90119-08A96

9015960352

main90159-60352

9017906178

main90179-06178

9018906094

main90189-06094

9048016042

main90480-16042

9048016043

main90480-16043

9056010057

main90560-10057

9056108046

main90561-08046

9162640616

main91626-40616

9162660625

main91626-60625

9165160618

main91651-60618

34 parts on this diagram · 4 diagrams in section
