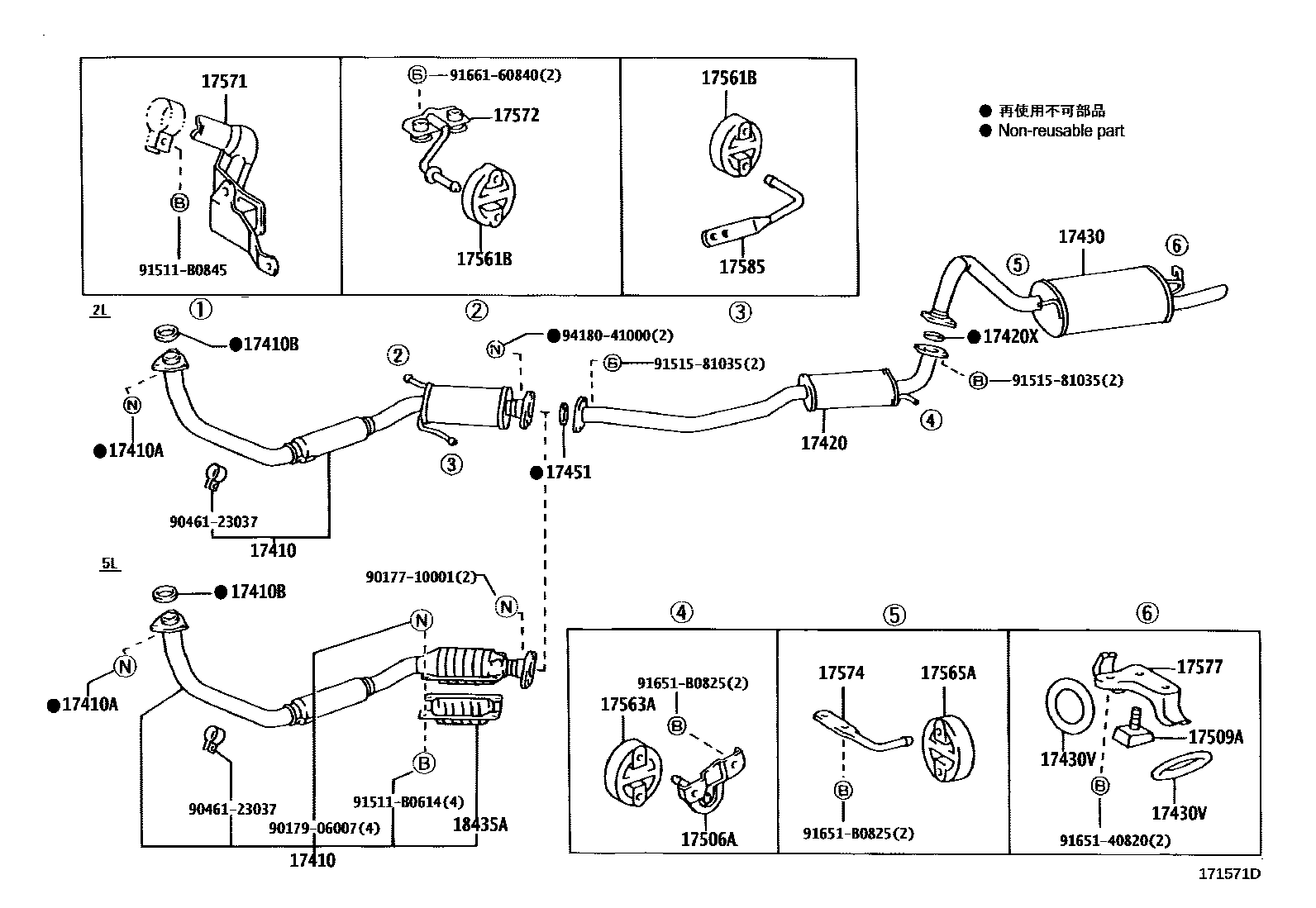

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)
17451GASKET, EXHAUST PIPE
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17561BSUPPORT, EXHAUST PIPE, NO.1
17563ASUPPORT, EXHAUST PIPE, NO.3
17565ASUPPORT, EXHAUST PIPE, NO.4
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17574BRACKET, EXHAUST PIPE SUPPORT, NO.4
17577BRACKET, EXHAUST PIPE SUPPORT, NO.7
17585HANGER, EXHAUST PIPE
NO.1
NO.1
NO.2
NO.3
9017710001
main90177-10001
9017906007
main90179-06007
9046123037
main90461-23037
91511B0614
main91511-B0614
91511B0845
main91511-B0845
9151581035
main91515-81035
9165140820
main91651-40820
91651B0825
main91651-B0825
9166160840
main91661-60840
9418041000
main94180-41000
29 parts on this diagram · 6 diagrams in section
