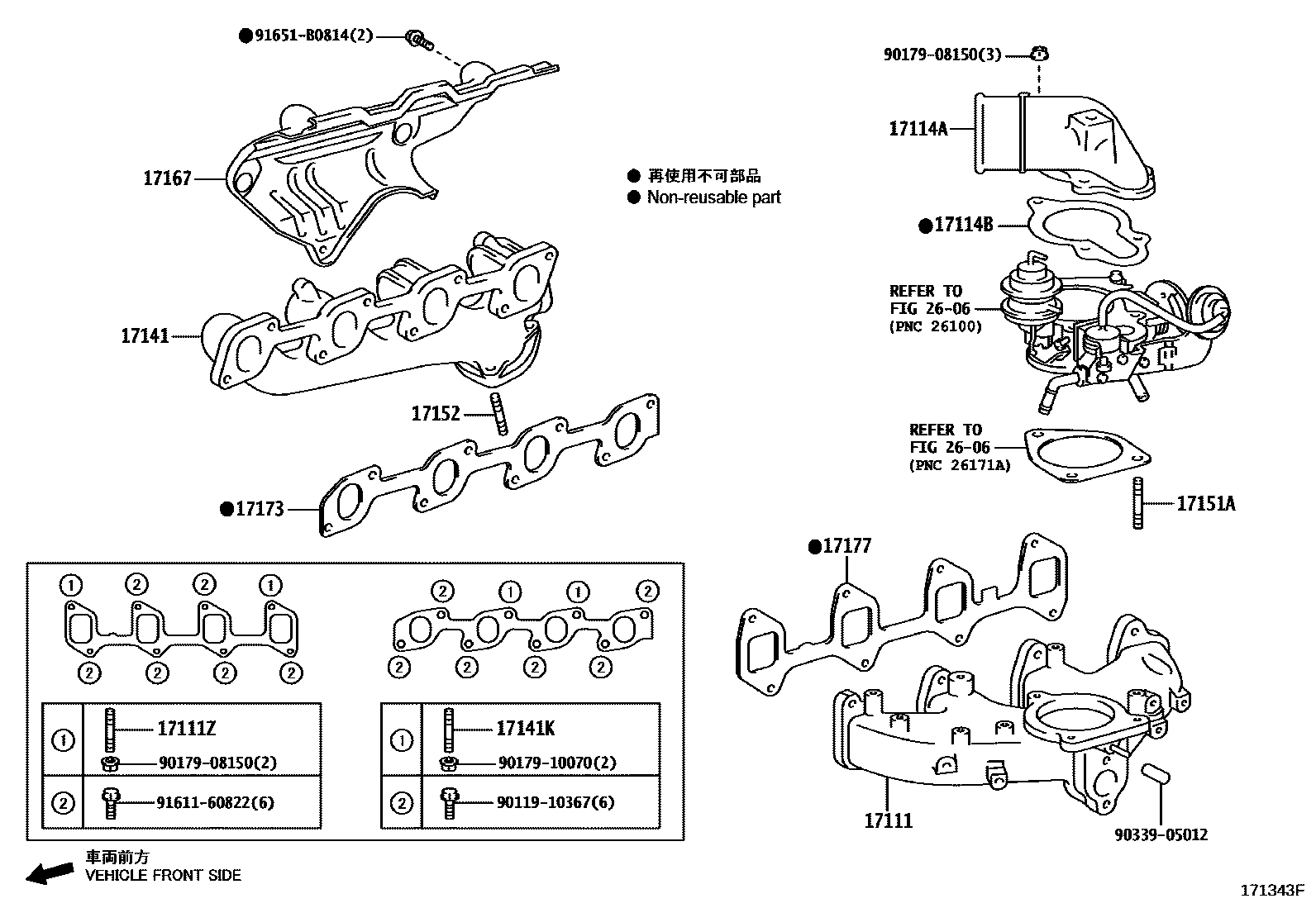

MANIFOLD
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17114BGASKET, INTAKE FLANGE
17141MANIFOLD, EXHAUST
17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
17151ABOLT, STUD(FOR MANIFOLD TO VENTURI)
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
2606
9011910367
main90119-10367
9017908150
main90179-08150
9017910070
main90179-10070
9033905012
main90339-05012
9161160822
main91611-60822
91651B0814
main91651-B0814
19 parts on this diagram · 4 diagrams in section
