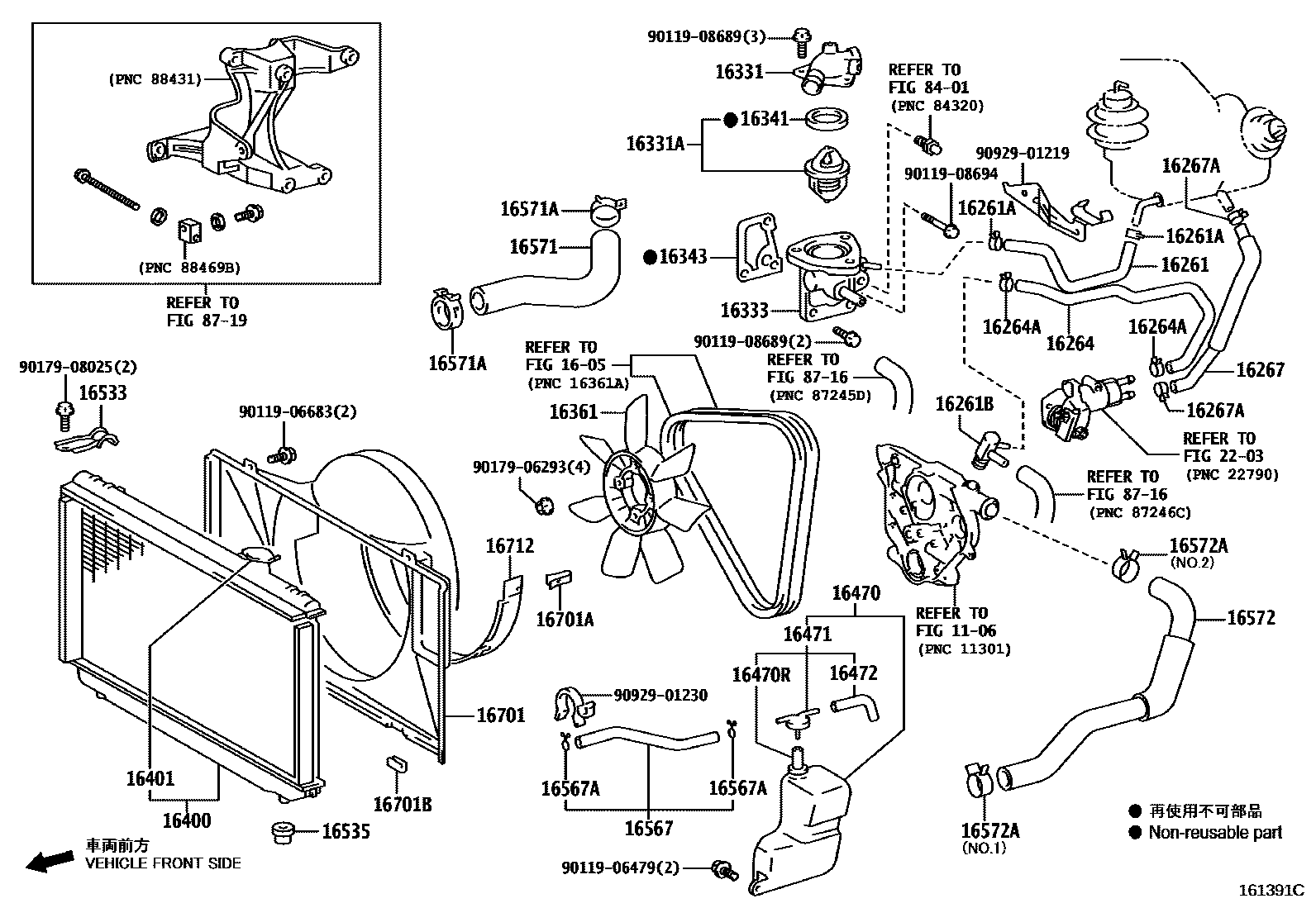

RADIATOR & WATER OUTLET
1106
1605
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16261BUNION(FOR WATER BY-PASS HOSE)
16264HOSE, WATER BY-PASS, NO.2
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16267HOSE, WATER BY-PASS, NO.3
16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16331ATHERMOSTAT
*WAX 88-100
*WAX 82-95
*WAX 82-95
16333HOUSING, WATER OUTLET
16341GASKET, WATER OUTLET
(L)
(J)
16343GASKET, WATER OUTLET HOUSING
16400RADIATOR ASSY
sub16400-5B391
sub16400-5B401
sub16400-73521
sub16400-73522
sub16400-73532
sub16400-73531
sub16400-73532
sub16400-75571
16470TANK ASSY, RADIATOR RESERVE
16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)
L=600(*H,L=230)
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16567ACLIP(FOR RADIATOR RESERVE TANK HOSE)
16571HOSE, RADIATOR, INLET
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
NO.2, ENGINE SIDE
NO.1, RADIATOR SIDE
16701SHROUD SUB-ASSY, FAN
16701ACLIP(FOR FAN SHROUD)
16701BCUSHION, FAN SHROUD
16712SHROUD, FAN, NO.2
2203
8401
8716
8719
9011906479
main90119-06479
9011906683
main90119-06683
9011908689
main90119-08689
9011908694
main90119-08694
9017906293
main90179-06293
9017908025
main90179-08025
9092901219
main90929-01219
9092901230
main90929-01230
45 parts on this diagram · 10 diagrams in section
