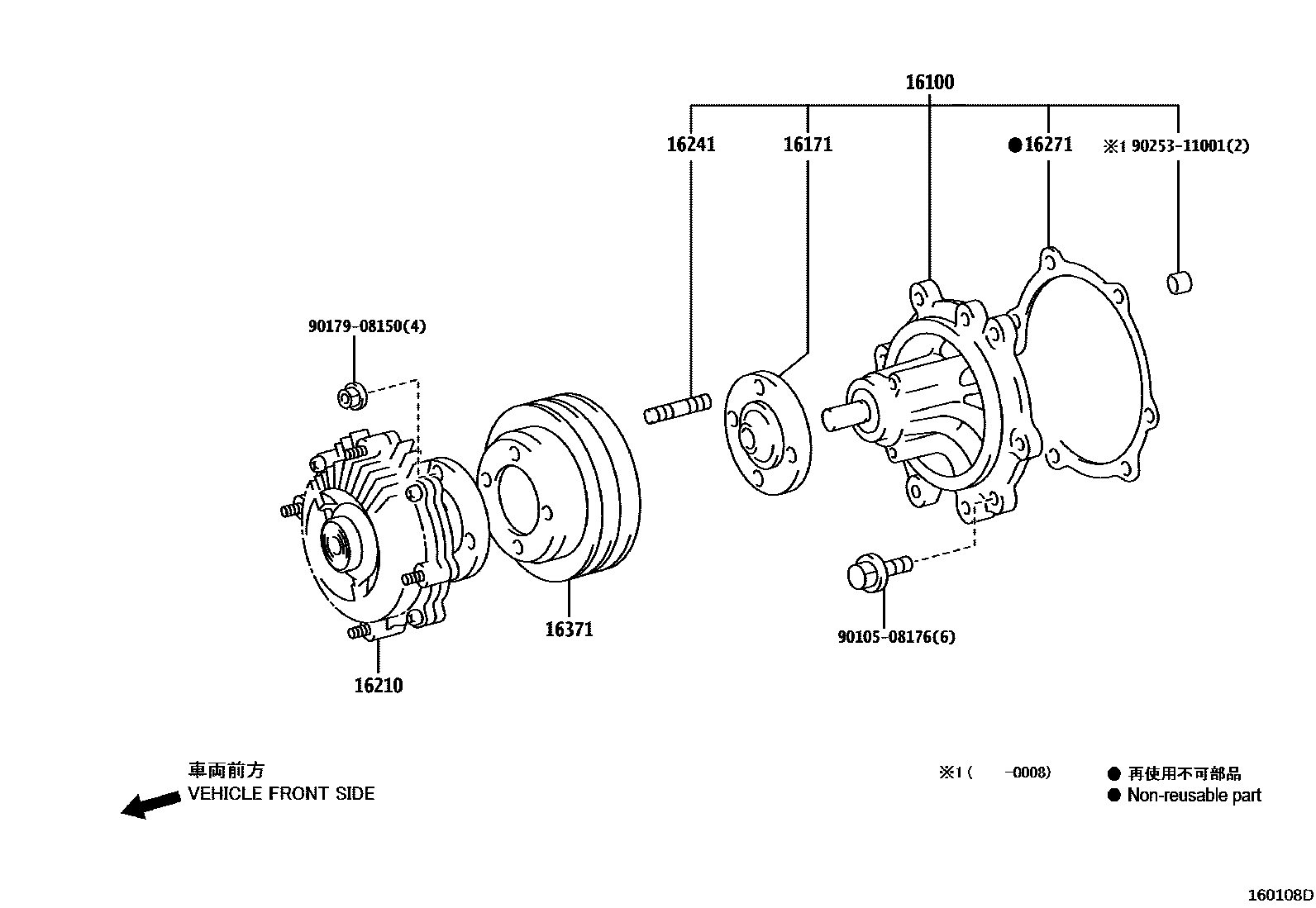

WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-59155i2L..LXS10199601-199701

main16100-59255i2L,5L..LXS1#199701-200008

sub16100-59256

main16100-59257i5L..LXS12200108-200607

main16100-79037i3YPE..YXS10..4H200108-200311

main16100-79445i1TRFPE..TSS10200808

16171SEAT, WATER PUMP PULLEY

main16171-41170i2L..LXS10199601-199701

main16171-75020i2L,5L..LXS1#199701-200108

16210COUPLING ASSY, FLUID

main16210-54130i2L,5L..LXS1#199601-200108

main16210-73040i3YPE..YXS10199908-200108

main16210-73041i3YPE..YXS10200108-200709

main16210-75111i1TRFPE..TSS10200808

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16193-71010×4i3YPE..YXS10200709-200808

main92122-40816×4i2L..LXS10199601-199605

main92122-60818×4i5L..LXS12200108-200502

main92122-80818×4i5L..LXS12200503-200607

16271GASKET, WATER PUMP

main16271-54020i2L,5L..LXS1#199601-200008

main16271-54030i5L..LXS12200108-200607

16371PULLEY, FAN

main16371-05010i5L..LXS12200304-200607

(L)

main16371-54030i5L..LXS12200304-200607

(J)

main16371-73011i3YPE..YXS10200108-200709

main16371-75040i1TRFPE..TSS10200808

9010508176

main90105-08176

9017908150

main90179-08150

9025311001

main90253-11001

9 parts on this diagram · 3 diagrams in section
