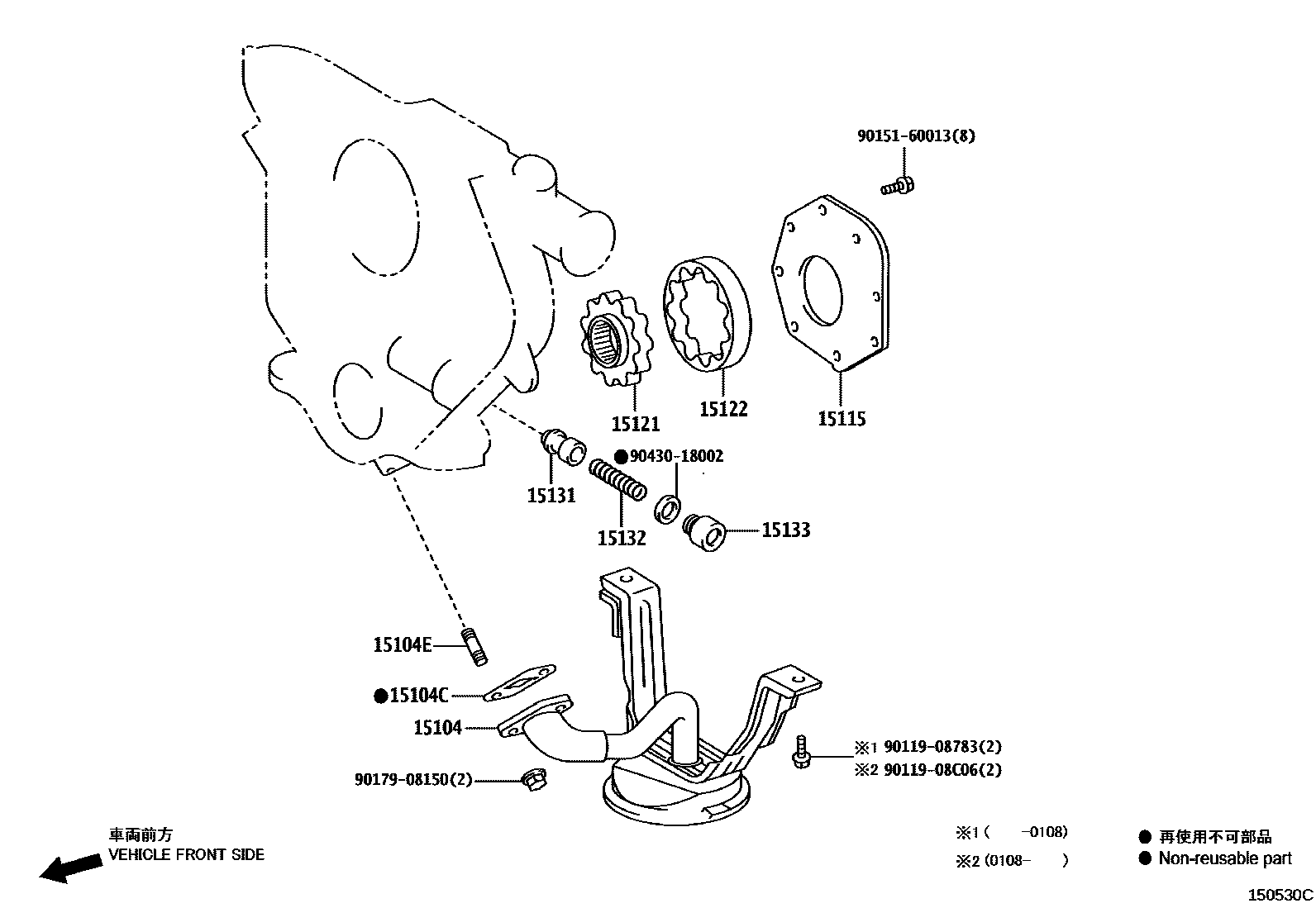

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1

15104STRAINER SUB-ASSY, OIL

main15104-54120i2L,5L..LXS1#199601-200607

main15104-75130i1TRFPE..TSS10200808

15104CGASKET(FOR OIL STRAINER)

main15149-54012i2L,5L..LXS1#199601-200008

sub15149-54030

main15149-54030i5L..LXS12200008-200607

15104EBOLT, STUD(FOR OIL STRAINER)

main90126-08037i1TRFPE..TSS10200808-201107

main90126-08052i1TRFPE..TSS10201107

main92122-40816i5L..LXS12199601-200208

main92122-80816i5L..LXS12200208-200607

15115COVER, OIL PUMP

main15115-54022i2L,5L..LXS1#199601-200607

15121GEAR, OIL PUMP DRIVE

main15121-54020i2L,5L..LXS1#199601-200607

15122GEAR, OIL PUMP DRIVEN

main15122-54020i2L,5L..LXS1#199601-200607

15131VALVE, OIL PUMP RELIEF

main15131-24010i3YPE..YXS10199908-200808

main15131-46040i1TRFPE..TSS10200808

main15131-54010i2L,5L..LXS1#199601-200607

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i3YPE..YXS10199908-200808

main15132-54010i5L..LXS12199601-200607

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i1TRFPE..TSS10200808-201406

main15133-24010i3YPE..YXS10199908-200808

main15133-33040i1TRFPE..TSS10201406

main15133-54010i5L..LXS12199601-200607

9011908783

main90119-08783

9011908C06

main90119-08C06

9015160013

main90151-60013

9017908150

main90179-08150

9043018002

main90430-18002

14 parts on this diagram · 4 diagrams in section
