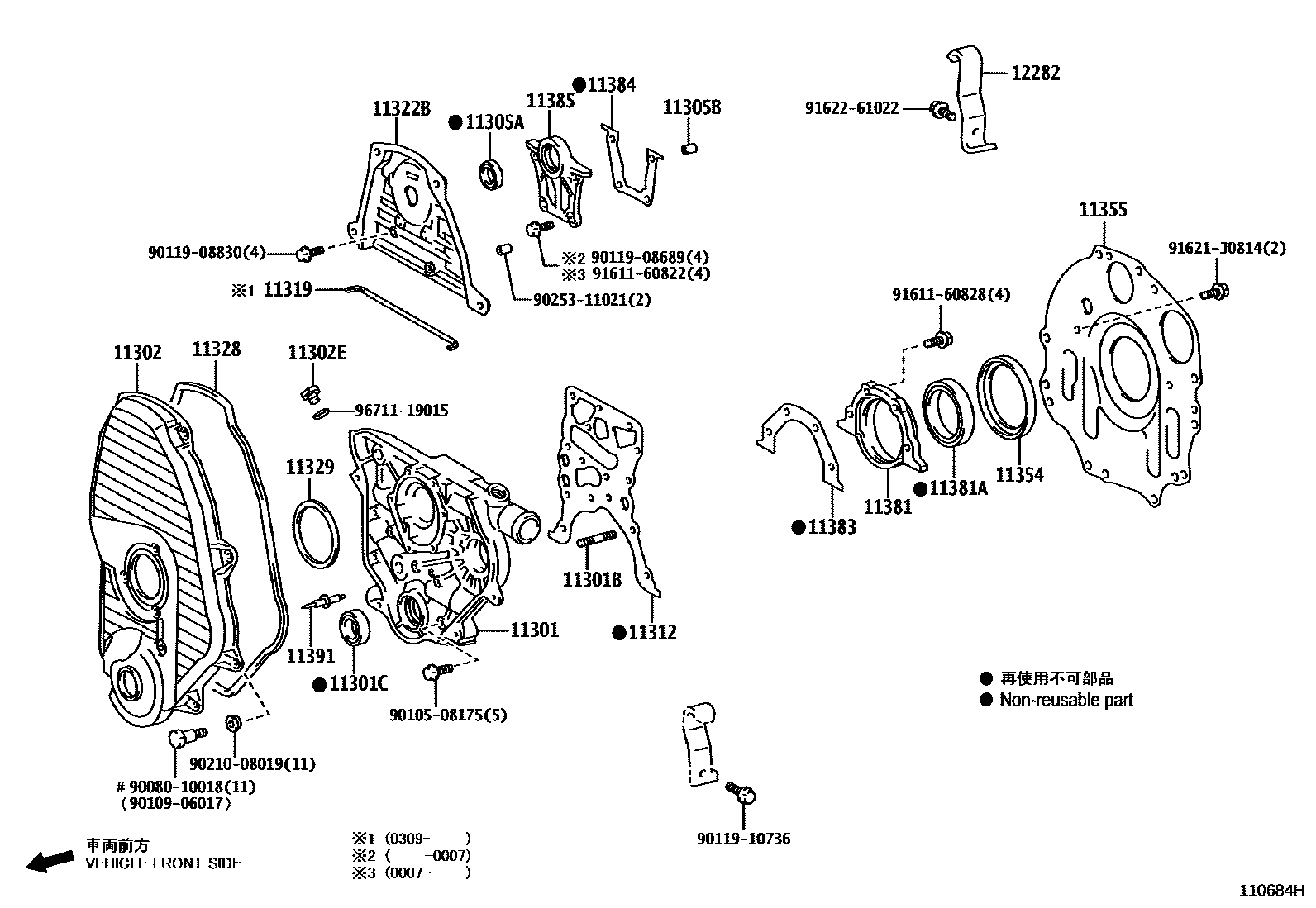

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1

11301CASE SUB-ASSY, TIMING GEAR

main11301-71010i3YPE..YXS10199908-200808

main11311-54052i2L,5L..LXS1#199601-200607

11301BBOLT,STUD(FOR TIMING GEAR CASE)

main92132-60828i2L,5L..LXS1#199601-200607

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42030i2L..LXS10199601-199605

sub90311-42031

main90311-42031i2L,5L..LXS1#199605-200607

main90311-48029i1TRFPE..TSS10200808-201410

sub90311-48031

main90311-48031i1TRFPE..TSS10201411

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-75062i1TRFPE..TSS10200808-200905

sub11310-75064

main11310-75064i1TRFPE..TSS10200905-201310

sub11310-75065

main11310-75065i1TRFPE..TSS10201310-201406

sub11310-75066

sub91671-80840

main11310-75066i1TRFPE..TSS10201406

main11321-54020i2L,5L..LXS1#199601-200607

sub11321-54021

main11321-71010i3YPE..YXS10199908-200808

11302EPLUG, STRAIGHT(FOR TIMING GEAR COVER)

main90341-18004i2L,5L..LXS1#199601-200607

11305ASEAL, OIL(FOR OIL SEAL RETAINER, NO.2)

main90311-32017i2L..LXS10199601-199703

sub90311-32020

main90311-32019i2L,5L..LXS1#199703-200607

11305BPIN, RING(FOR OIL SEAL RETAINER, NO.2)

main16159-71010i3YPE..YXS10199908-200808

main90253-11021i2L,5L..LXS1#199601-200607

11312GASKET, FRONT END PLATE

main11312-54021i2L,5L..LXS1#199601-200008

main11312-54040i5L..LXS12200008-200607

11319GASKET, TIMING BELT COVER, NO.3

main11319-54010i5L..LXS12200309-200607

11322BCOVER, TIMING BELT, NO.2

main11322-54020i2L..LXS10199601-199708

sub11322-54021

main11322-54021i2L,5L..LXS1#199708-200307

sub11322-54022

main11322-54022i5L..LXS12200308-200607

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-05010i5L..LXS12200301-200607

(L)

main11328-54021i5L..LXS12200301-200607

(J)

main11328-54021i2L,5L..LXS1#199601-200301

main11328-71012i3YPE..YXS10199908-200808

11329GASKET, TIMING GEAR REAR COVER

main11329-05010i5L..LXS12199912-200607

(L)

main11329-54021i5L..LXS12199912-200607

(J)

main11329-54021i2L,5L..LXS1#199601-199912

11354SEAL, FLYWHEEL HOUSING DUST

main11354-54010i2L,5L..LXS1#199601-200607

main11354-71010i3YPE..YXS10199908-200808

main11354-75030i1TRFPE..TSS10200808

11355PLATE, REAR END

main11355-54030i5L..LXS12199601-200607

main11355-71010i3YPE..YXS10..4H199908-200312

main11355-71021i3YPE..YXS10..4HC199908-200808

main11355-75021i1TRFPE..TSS10200808

11381RETAINER, ENGINE REAR OIL SEAL

main11381-54020i2L,5L..LXS1#199601-199909

sub11381-54030

sub90116-08404

main11381-54030i5L..LXS12199909-200607

main11381-71010i3YPE..YXS10199908-200808

main11381-75010i1TRFPE..TSS10200808-200812

sub11381-75011

main11381-75011i1TRFPE..TSS10200812-201405

sub11381-75012

main11381-75012i1TRFPE..TSS10201406

11381ASEAL, ENGINE REAR OIL

main90311-80009i3YPE..YXS10199908-200009

sub90311-80014

main90311-80014i3YPE..YXS10200009-200808

main90311-85007i2L..LXS10199601-199703

main90311-85008i5L..LXS12199703-200607

main90311-88005i1TRFPE..TSS10200808-201410

sub90311-88006

main90311-88006i1TRFPE..TSS10201411

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-54030i2L,5L..LXS1#199601-200607

main11383-73010i3YPE..YXS10199908-200808

11384GASKET, OIL SEAL RETAINER, NO.2

main11384-54030i2L,5L..LXS1#199601-200607

11385RETAINER, CAMSHAFT OIL SEAL

main11382-54020i2L,5L..LXS1#199601-200607

11391POINTER, TIMING

main11391-54020i2L,5L..LXS1#199601-200607

12282HANGER, ENGINE, NO.2

main12282-54060i2L,5L..LXS1#199601-200607

9008010018

main90080-10018

9010508175

main90105-08175

9010906017

main90109-06017

9011908689

main90119-08689

9011908830

main90119-08830

9011910736

main90119-10736

9021008019

main90210-08019

9025311021

main90253-11021

9161160822

main91611-60822

9161160828

main91611-60828

91621J0814

main91621-J0814

9162261022

main91622-61022

9671119015

main96711-19015

34 parts on this diagram · 4 diagrams in section
