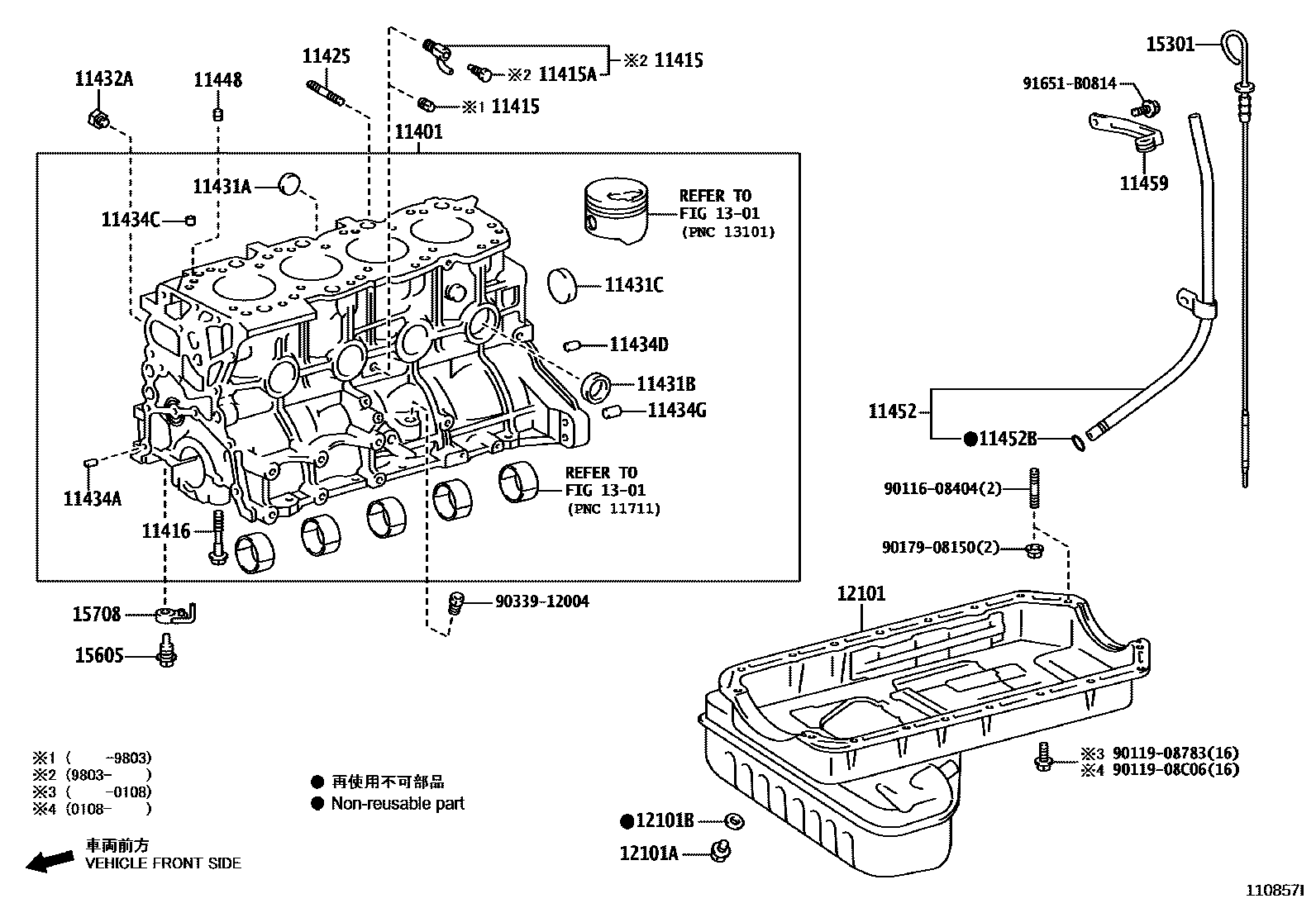

CYLINDER BLOCK

0001 1 0002 1 0003 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-59347i2L..LXS10199601-199901

main11401-59645i5L..LXS12199802-200607

sub11401-59817

main11401-79785i3YPE..YXS10199908-200407

sub11401-80740

main11401-80740i3YPE..YXS10200407-200508

sub11401-80756

main11401-80749i1TRFPE..TSS10200808-201406

sub11401-80811

main11401-80756i3YPE..YXS10200509-200808

main11401-80811i1TRFPE..TSS10201406-201501

sub11401-80827

main11401-80827i1TRFPE..TSS10201501-201712

sub11401-80867

main11401-80827i1TRFPE..TSS10201712-201801

LPG ENGINE

sub11401-80867

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90345-53030i2L,5L..LXS1#199601-199803

main90910-09075i1TRFPE..TSS10200808-200906

sub90910-09129

main90910-09095i3YPE..YXS10200205-200808

main90910-09110i2L,5L..LXS1#199803-200607

main90910-09129i1TRFPE..TSS10200906

main96431-53828i3YPE..YXS10199908-200205

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i2L,5L..LXS1#199803-200808

main96432-23814i3YPE..YXS10199908-200108

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02032i3YPE..YXS10199908-200808

main90910-02061i2L,5L..LXS1#199601-200607

main90910-02092i1TRFPE..TSS10200808-201005

sub90910-02179

main90910-02179i1TRFPE..TSS10201005

11425BOLT, STUD(FOR OIL FILTER)

main92112-60825i2L..LXS10199601-199705

main92112-80825i5L..LXS12199705-200607

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-01800i3YPE..YXS10199908-200808

main96411-42500i5L..LXS12199601-200607

main96411-63000i1TRFPE..TSS10200808

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43500i2L,5L..LXS1#199601-200808

main96411-63500i1TRFPE..TSS10200808

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-45000i3YPE..YXS10199601-200808

main96411-64000i1TRFPE..TSS10200808

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90345-51006i2L,5L..LXS1#199601-200607

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08120i3YPE..YXS10199908-200808

L=18,OD=8

main90253-11021i2L,5L..LXS1#199601-200607

L=8,OD=11

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-15005i2L,5L..LXS1#199601-200607

L=7,OD=14.5

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i1TRFPE..TSS10200808

L=14,OD=6

main90253-11021i2L,5L..LXS1#199601-200607

L=8,OD=11

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10113i2L,5L..LXS1#199601-200607

11448ORIFICE, CYLINDER BLOCK OIL

main11448-54020i2L,5L..LXS1#199601-200607

11452GUIDE, OIL LEVEL GAGE

main11409-75110i1TRFPE..TSS10200808

main11452-35010i3YPE..YXS10199912-200808

main11452-40010i3YPE..YXS10199908-199912

main11452-54070i5L..LXS12199601-200607

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-09018i5L..LXS12200108-200607

main96711-24010i2L,5L..LXS1#199601-200108

11459SUPPORT, OIL LEVEL GAGE GUIDE

main90929-01204i2L,5L..LXS1#199601-200607

12101PAN SUB-ASSY, OIL

main12101-54102i2L,5L..LXS1#199601-199808

sub12101-54104

main12101-54104i2L,5L..LXS1#199808-199904

sub12101-54105

main12101-54105i5L..LXS12199904-200607

main12101-73030i3YPE..YXS10199908-200808

main12101-75170i1TRFPE..TSS10200808

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2L,5L..LXS1#199601-200808

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i3YPE..YXS10199601-200808

1301

15301GAGE SUB-ASSY, OIL LEVEL

main15301-54060i2L,5L..LXS1#199601-200607

main15301-73020i3YPE..YXS10199908-199912

main15301-73021i3YPE..YXS10199912-200808

main15301-75120i1TRFPE..TSS10200808-201207

sub15301-75140

main15301-75140i1TRFPE..TSS10201207

15605VALVE SUB-ASSY, OIL CHECK

main15605-54010i2L,5L..LXS1#199601-200607

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-54060i2L,5L..LXS1#199601-200607

main15708-75010i1TRFPE..TSS10200808-201301

sub15708-75020

main15708-75020i1TRFPE..TSS10201301

9011608404

main90116-08404

9011908783

main90119-08783

9011908C06

main90119-08C06

9017908150

main90179-08150

9033912004

main90339-12004

91651B0814

main91651-B0814

30 parts on this diagram · 3 diagrams in section
