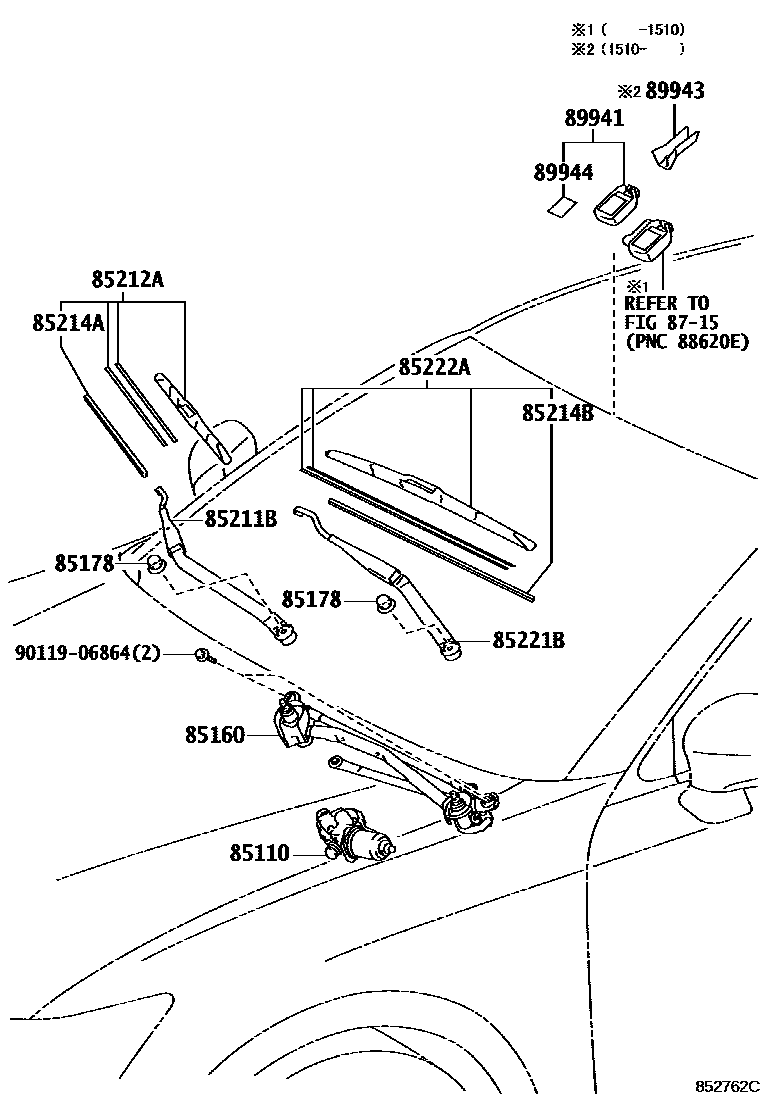

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-30630iAWL10,GRL1#,GWL10..LHD201201-201409

sub85110-30700

main85110-30640iAWL10,GRL10,11,GWL10..RHD201201-201409

sub85110-30710¥25,400

main85110-30700iAWL10,GRL1#,GWL10..LHD201409-202007

main85110-30710iAWL10,GRL10,11,GWL10..RHD¥25,400201409-202007

85160LINK ASSY, WINDSHIELD WIPER

main85150-30740iGRL10..LHD201201-202007

main85150-30750iGRL10..RHD..8FC;AWL10,GRL11,GWL10..RHD¥8,400201201-202007

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005iGRL10¥110201201-202007

85211BARM, FRONT WIPER, RH

main85211-30790iGRL10..LHD..8FC;AWL10,GRL11,15,GWL10..LHD201201-202007

main85211-30810iARL10,AWL10,GRL12,GWL10..RHD¥4,200201201-202007

85212ABLADE, FR WIPER, RH

main85212-30470iAWL10,GRL10,11,GWL10..RHD¥4,290201201-202007

main85212-30480iAWL10,GRL1#,GWL10..LHD201201-202007

85214ARUBBER, WIPER, RH

main85214-33180iGRL10..LHD¥800201201-202007

main85214-52110iGRL10..RHD..8FC;AWL10,GRL11,GWL10..RHD¥900201211-202007

main85214-68020iGRL10,11,GWL10..RHD¥900201201-201210

sub85214-52110¥900

85214BRUBBER, WIPER, LH

main85214-33180iGRL10..RHD..8FC;AWL10,GRL11,GWL10..RHD¥800201201-202007

main85214-52110iARL10,AWL10,GRL12,GWL10..LHD¥900201211-202007

main85214-68020iGRL1#,GWL10..LHD¥900201201-201210

sub85214-52110¥900

85221BARM, FRONT WIPER, LH

main85221-30690iGRL10..LHD201201-202007

main85221-30700iGRL10..RHD¥4,580201201-202007

85222ABLADE, FR WIPER, LH

main85222-30650iAWL10,GRL1#,GWL10..LHD201201-202007

main85222-30660iAWL10,GRL10,11,GWL10..RHD¥2,180201201-202007

8715

89941SENSOR, RAIN

main89941-30030iGRL15¥19,900201201-201510

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

89943COVER, RAIN SENSOR

main89943-33050¥1,400

89944TAPE, RAIN SENSOR

main89944-42010iGRL15¥1,490201201-201510

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

9011906864

main90119-06864¥80

14 parts on this diagram · 2 diagrams in section
