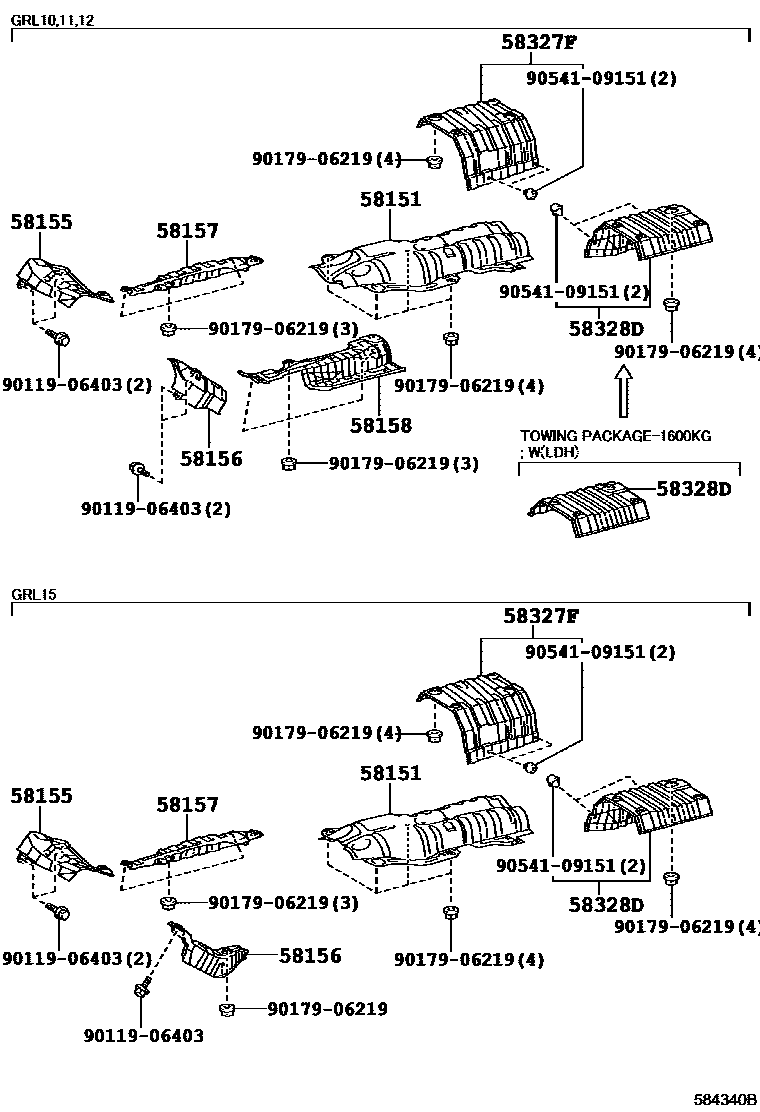

FLOOR INSULATOR

0001 1 0002 1 0003 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-30200iGRL10,11,GWL10201201-201304

sub58151-30201

main58151-30201iGRL10..8FC;AWL10,GRL11,GWL10201305-202007

main58151-30210iGRL15201201-201510

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-30060iGRL12201510-202007

main58155-30070iGRL10201201-202007

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-30090iGRL15201201-201510

main58156-30100iGRL10..8FC;GRL11,GWL10201201-202007

main58156-30140iAWL10201309-202007

main58156-30150iGRL12201510-202007

main58156-30160iARL10201510-202007

58157INSULATOR, FRONT FLOOR HEAT, NO.5

main58157-30073iGRL10..8FC;GRL11,15,GWL10201201-202007

58158INSULATOR, FRONT FLOOR HEAT, NO.6

main58158-30070iGRL10201201-202007

main58158-30080iAWL10201309-202007

58327FINSULATOR, MAIN MUFFLER HEAT, RH

main58327-30060iGRL10201201-202007

58328DINSULATOR, MAIN MUFFLER HEAT, LH

main58328-30040iGRL11,15;GRL10..8FC201201-202007

main58328-30050iAWL10,GWL10201203-202007

main58328-30060iGRL12..RHD201510-202007

TOWING PACKAGE-1600KG&LDH-WITH

main58328-30060iGRL12..RHD201510-202007

LDH-WITH

main58328-30060iGRL12201510-202007

TOWING PACKAGE-1600KG

9011906403

main90119-06403

9017906219

main90179-06219

9054109151

main90541-09151

10 parts on this diagram · 3 diagrams in section
