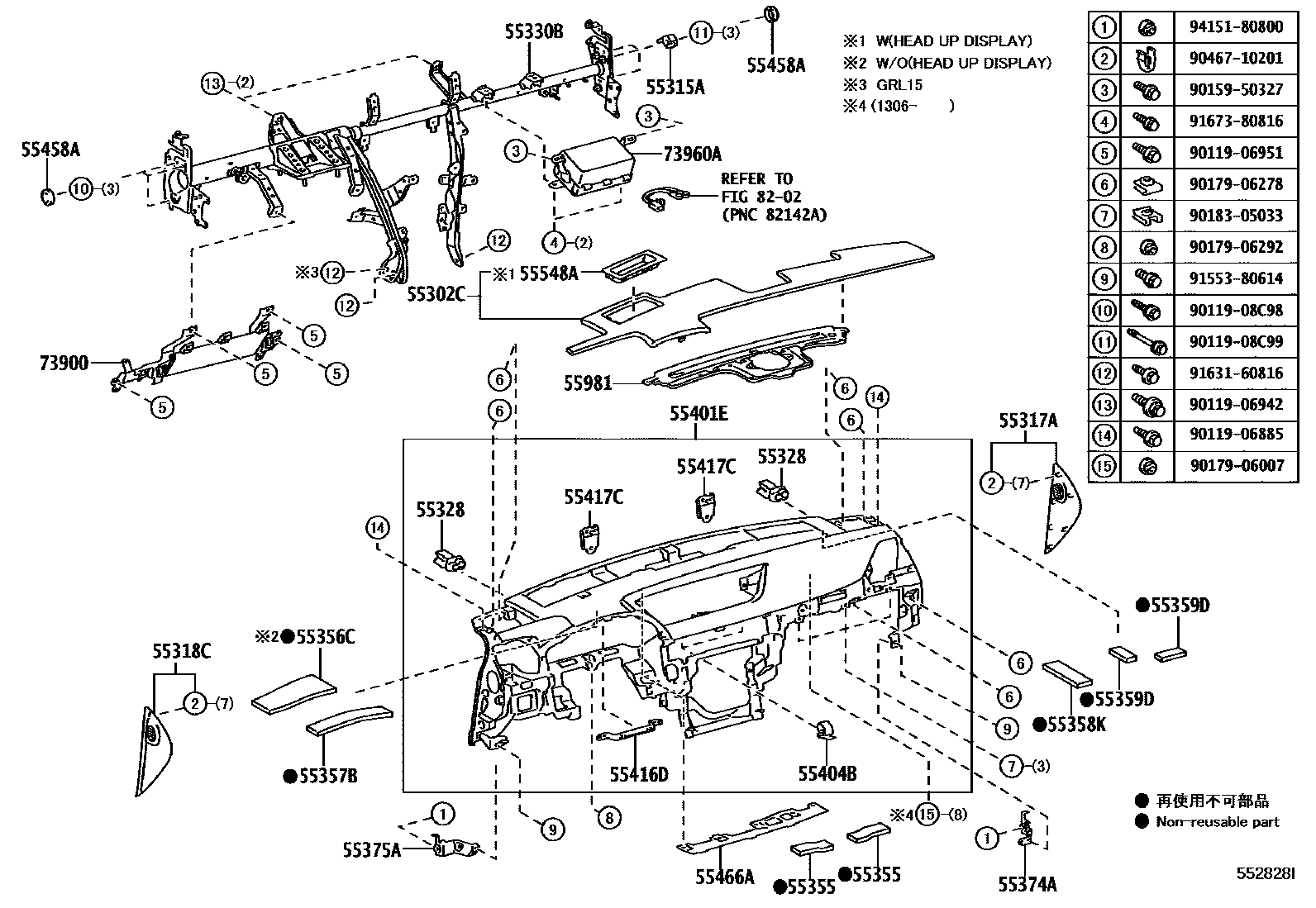

INSTRUMENT PANEL & GLOVE COMPARTMENT
55302CPANEL SUB-ASSY, INSTRUMENT
BLACK/ECRU,TRIM0#,40,41,42,43,50,51,52,53
BLACK/ECRU,TRIM00,01,02,03,50,51,52,53
BLACK/ECRU,TRIM0#,5#
BLACK/ECRU,TRIM00,01,02,03,50,51,52
BLACK/ECRU,TRIM00,01,02,03,4#,50,51,52
BLACK/ECRU,TRIM0#,40,41,43,50,51,52,53,56
BLACK/LT.GRAY,TRIM0#,1#,2#,30,31,32,54,55,56
BLACK/LT.GRAY,TRIM04,05,1#,2#,3#,4#,54,55
BLACK/LT.GRAY,TRIM04,05,1#,2#,3#,40,41,43,54,55
BLACK/LT.GRAY,TRIM0#,1#,2#,3#,40,41,43,54,55,56
BLACK/LT.GRAY,TRIM04,05,06,1#,2#,3#,4#,54,55,56
BLACK/LT.GRAY,TRIM04,05,06,1#,2#,3#,54,55,56
BLACK/LT.GRAY,TRIM1#,2#,4#
BLACK/LT.GRAY,TRIM0#,1#,2#,30,31,32,4#,54,55,56
BLACK/RED,TRIM33
BLACK/IVORY,TRIM00,01,03,50,51
BLACK/IVORY,TRIM00,01,02,03,50,51,52
BLACK/LT.GRAY NO.094,TRIM04,05,06,1#,2#,3#,4#,54,55,56
BLACK/LT.GRAY NO.094,TRIM04,05,1#,2#,3#,4#,54,55
BLACK/IVORY,TRIM4#
BLACK/LT.GRAY,TRIM0#,1#,2#,3#,5#
BLACK/LT.GRAY,TRIM0#,1#,2#,3#,5#,6#
BLACK/LT.GRAY,TRIM0#,1#,2#,3#,5#,6#
55315ASPACER, INSTRUMENT PANEL, NO.1
55317APANEL, INSTRUMENT SIDE, RH
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,1#,2#,3#,5#,6#
55318CPANEL, INSTRUMENT SIDE, LH
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,1#,2#,3#,5#,6#
55328PIN, INSTRUMENT PANEL, NO.1
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55355CUSHION, INSTRUMENT PANEL, NO.1
55356CCUSHION, INSTRUMENT PANEL, NO.2
55357BCUSHION, INSTRUMENT PANEL, NO.3
55358KCUSHION, INSTRUMENT PANEL, NO.4
55359DCUSHION, INSTRUMENT PANEL, NO.5
55374ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH
55375ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,1#,2#,3#,5#,6#
BLACK,TRIM0#,1#,2#,3#,5#,6#
BLACK,TRIM0#,1#,2#,3#,4#,5#
55404BCLIP, SAFETY PAD SET
55416DBRACKET, INSTRUMENT PAD, NO.2
55417CBRACKET, INSTRUMENT PAD, NO.3
55458ACAP, INSTRUMENT PANEL SAFETY PAD
55466ARETAINER, INSTRUMENT PANEL SAFETY PAD
55548ACOVER, INSTRUMENT PANEL HOLE
55981GARNISH, DEFROSTER NOZZLE, NO.1
BLACK,TRIM0#,1#,2#,3#,5#,6#
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,1#,2#,3#,5#,6#
BLACK,TRIM0#,1#,2#,3#,4#,5#
73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,1#,2#,3#,5#,6#
BLACK,TRIM0#,1#,2#,3#,4#,5#
BLACK,TRIM0#,1#,2#,3#,5#,6#
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
8202
9011906885
9011906942
9011906951
9011908C98
9011908C99
9015950327
9017906007
9017906278
9017906292
9018305033
9046710201
9155380614
9163160816
9167380816
9415180800
39 parts on this diagram · 14 diagrams in section
