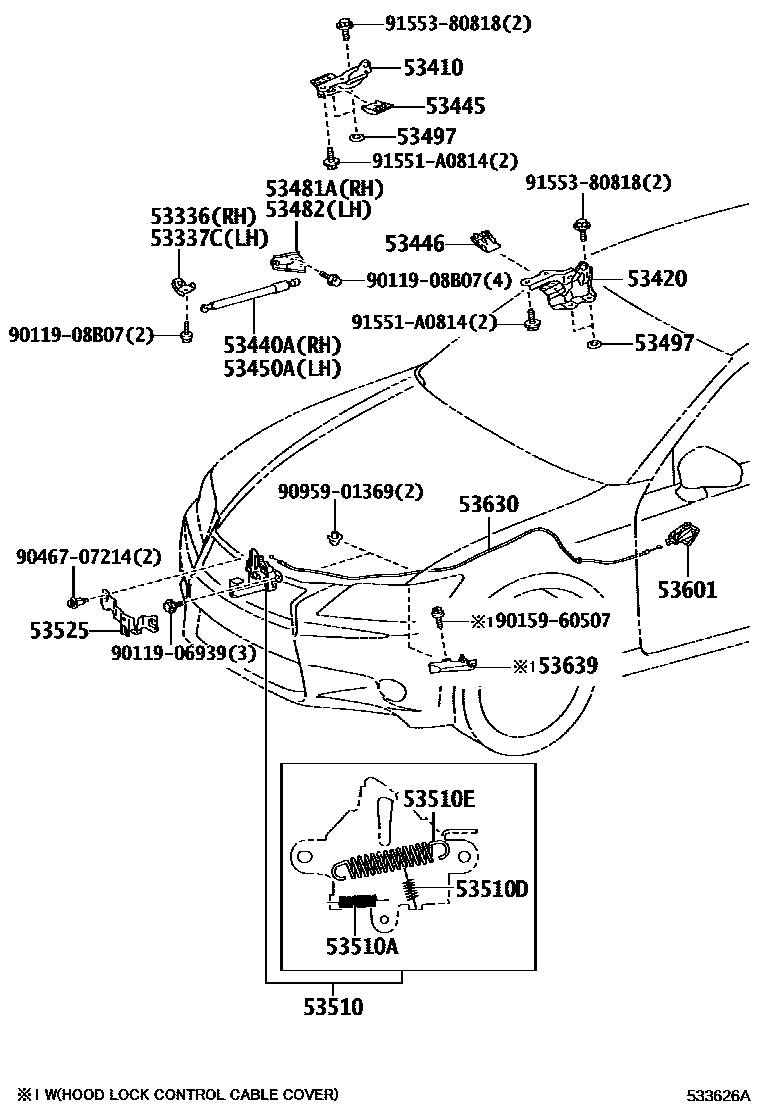

HOOD LOCK & HINGE

0001 1 0002 1

53336BRACKET, HOOD STAY, RH

main53336-30060iGRL10201201-201309

53337CBRACKET, HOOD STAY, LH

main53337-30040iARL10,AWL10,GRL12,GWL10201510-202007

53410HINGE ASSY, HOOD, RH

main53410-30450iGRL10201201-201309

53420HINGE ASSY, HOOD, LH

main53420-30460iGRL10201201-201309

53440ASUPPORT ASSY, HOOD, RH

main53440-0W250iGRL1#201201-201202

main53440-0W251iGRL10..8FC;AWL10,GRL11,15,GWL10201202-201510

53445COVER, HOOD HINGE, RH

main53445-30010iAWL10,GRL1#,GWL10201201-201510

53446COVER, HOOD HINGE, LH

main53446-30010iAWL10,GRL1#,GWL10201201-201510

53450ASUPPORT ASSY, HOOD, LH

main53450-0W220iGRL1#201201-201202

main53450-0W221iGRL10201202-201309

53481ABRACKET, HOOD SUPPORT, RH

main53481-30020iARL10,AWL10,GRL12,GWL10201510-202007

53482BRACKET, HOOD SUPPORT, LH

main53482-30020iGRL10201201-201309

53497PAD, HOOD HINGE, NO.1

main53497-20070×4iGRL10201201-201309

T=2.0

main53497-42010×4iGRL10..8FC;AWL10,GRL11,15,GWL10201201-201409

T=0.5

main53497-50020×2iARL10,AWL10,GRL12,GWL10201510-202007

T=1.0

53510LOCK ASSY, HOOD

main53510-30350iARL10,AWL10,GRL12,GWL10..RHD201510-201904

main53510-30351iARL10,AWL10,GRL12,GWL10..RHD201905-202007

main53510-30360iGRL10..LHD201201-201309

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iGRL10201201-201309

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iGRL10201201-201309

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-14086iARL10,AWL10,GRL12,GWL10201510-202007

WD=1.4,CW=15

53525PROTECTOR, HOOD LOCK RELEASE LEVER

main53525-30080iGRL10201201-201309

main53525-30130iARL10,AWL10,GRL12,GWL10201510-202007

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30090-C0iGRL15201201-201510

BLACK,TRIM0#,1#,2#,3#,4#,5#

main53601-30090-C1iARL10,GRL12,GWL10..GCC201701-202007

BLACK,TRIM0#,1#,2#,3#,4#,5#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-30340iARL10,AWL10,GRL12,GWL10..RHD201510-202007

main53630-30350iGRL10..LHD..8FC;AWL10,GRL11,15,GWL10..LHD201201-201510

53639COVER, HOOD LOCK CONTROL CABLE, NO.2

main53639-30010iARL10,AWL10,GRL12,GWL10..ARL201809-202007

SOUTH AFRICA SPEC

main53639-30020iARL10,GRL12,GWL10..LHD..GEN201809-202007

TAIWAN SPEC

9011906939

main90119-06939

9011908B07

main90119-08B07

9015960507

main90159-60507

9046707214

main90467-07214

9095901369

main90959-01369

91551A0814

main91551-A0814

9155380818

main91553-80818

26 parts on this diagram · 2 diagrams in section
