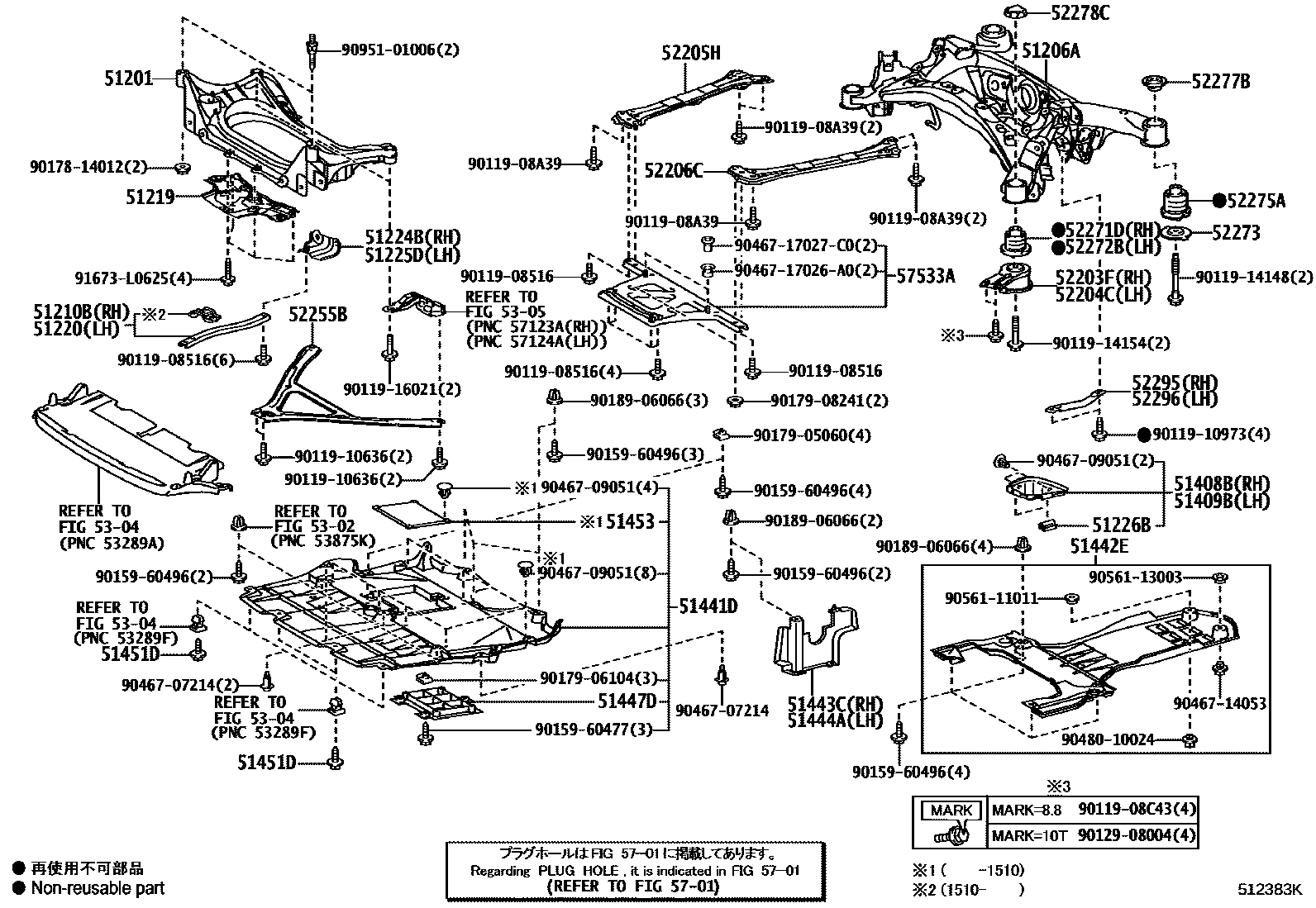

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0003 1 0004 1 0005 1 0006 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-30140iAWL10,GRL10,11,GWL10¥41,700201201-202007

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-30130iGRL11¥112,000201201-201309

sub51206-30131¥111,000

main51206-30131iGRL11¥111,000201310-201510

main51206-30140iGRL10¥113,000201201-201310

sub51206-30141¥113,000

main51206-30141iAWL10,GRL10,15,GWL10¥113,000201310-201505

sub51206-30142¥56,600

main51206-30142iAWL10,GRL10,15,GWL10¥56,600201506-202007

51210BCROSSMEMBER ASSY, FRAME, NO.1

main51210-30010iGRL15¥930201201-201510

main51210-30020iARL10,AWL10,GRL12,GWL10¥3,230201510-202007

main51217-30060iAWL10,GRL10,11,GWL10¥4,000201201-201510

51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR

main51219-30050iGRL10¥4,520201201-202007

sub51219-30051¥4,110

51220CROSSMEMBER ASSY, FRAME, NO.2

main51210-30020iARL10,AWL10,GRL12,GWL10¥3,230201510-202007

main51217-30060iAWL10,GRL10,11,GWL10¥4,000201201-201510

main51220-30010iGRL15¥930201201-201510

51224BPLATE, FRONT SUSPENSION MENBER BRACE, RH

main51224-30040iGRL10¥1,610201201-202007

51225DPLATE, FRONT SUSPENSION MENBER BRACE, LH

main51225-30030iGRL10..8FC;AWL10,GRL11,GWL10¥1,610201201-202007

51226BPLATE, FRONT SUSPENSION MEMBER, NO.2

main51226-30020iGRL10¥140201201-202007

51408BCOVER SUB-ASSY, ENGINE UNDER, RH

main51408-30060iGRL10¥1,150201201-202007

51409BCOVER SUB-ASSY, ENGINE UNDER, LH

main51409-30060iGRL10¥1,450201201-202007

51441DCOVER, ENGINE UNDER

main51410-30090iGRL10¥35,000201201-201510

main51410-30170iGRL15¥25,500201201-201510

main51410-30230iARL10,AWL10,GRL12,GWL10¥30,100201510-201706

sub51410-30231¥30,200

main51410-30231iARL10,AWL10,GRL12,GWL10¥30,200201707-202007

51442ECOVER, ENGINE UNDER, NO.2

main51442-30152iGWL10¥12,500201201-202007

main51442-30210iGRL12¥3,160201309-202007

main51442-30220iARL10¥4,210201510-202007

main51442-53050iAWL10¥11,900201309-202007

51443CCOVER, ENGINE UNDER, REAR RH

main51443-30141iGRL10¥1,570201201-202007

51444ACOVER, ENGINE UNDER, REAR LH

main51444-30171iARL10,AWL10,GRL12,GWL10¥1,570201201-202007

51447DCOVER, ENGINE UNDER, NO.4 CENTER

main51447-30120iGRL10¥3,430201201-201510

main51447-30130iGRL15¥2,160201201-201510

main51447-30160iARL10,AWL10,GRL12,GWL10¥3,850201510-201706

sub51447-30161¥3,610

main51447-30161iARL10,AWL10,GRL12,GWL10¥3,610201707-202007

51451DSCREW, NO.1

main90159-60477iAWL10,GRL1#,GWL10¥70201201-202007

51453SILENCER, ENGINE UNDER COVER, FRONT

main51453-30030iGRL10¥590201201-201510

main51453-30040iGRL15¥360201201-201510

52203FSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER RH

main52203-30080iGRL10¥3,380201201-202007

52204CSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER LH

main52204-30060iGRL10..8FC;AWL10,GRL11,15,GWL10¥3,380201201-202007

52205HCUSHION SUB-ASSY, BODY MOUNTING, REAR RH

main52205-30250iGRL10¥4,550201201-202007

52206CCUSHION SUB-ASSY, BODY MOUNTING, REAR LH

main52206-30070iGRL10¥4,550201201-202007

52255BBRACE, FRONT SUSPENSION MEMBER

main52255-30040iGRL15¥1,320201201-201510

main52255-30050iGRL10¥8,900201201-202007

sub52255-30051¥6,600

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-30150iGRL10¥4,640201201-201403

sub52271-30151¥2,920

main52271-30151iARL10,AWL10,GRL12,GWL10¥2,920201403-202007

52272BCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LOWER

main52272-30010iGRL10¥4,370201201-201403

sub52272-30011¥2,750

main52272-30011iAWL10,GRL1#,GWL10¥2,750201403-202007

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52274-30010iAWL10,GRL1#,GWL10¥1,290201201-202007

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-30160iGRL10¥5,400201201-201403

sub52275-30161¥3,380

main52275-30161iAWL10,GRL1#,GWL10¥3,380201403-202007

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-30090iGRL10¥1,170201201-202007

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-30090iGRL10¥1,010201201-201403

sub52278-30091¥630

main52278-30091iAWL10,GRL1#,GWL10¥630201403-202007

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-30040iGRL10¥1,800201201-201709

sub52295-30041¥1,350

main52295-30041iARL10,AWL10,GRL12,GWL10¥1,350201710-202007

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-30040iGRL10¥1,800201201-201709

sub52295-30041¥1,350

main52295-30041iARL10,AWL10,GRL12,GWL10¥1,350201710-202007

5302

5304

5305

5701

57533ABRACE, FRONT FLOOR, CENTER

main57533-30070iGRL10¥7,000201201-202007

9011908516

main90119-08516¥120

9011908A39

main90119-08A39¥80

9011908C43

main90119-08C43¥100

9011910636

main90119-10636¥130

9011910973

main90119-10973¥100

9011914148

main90119-14148¥490

9011914154

main90119-14154¥360

9011916021

main90119-16021¥540

9012908004

main90129-08004¥200

9015960477

main90159-60477¥70

9015960496

main90159-60496¥60

9017814012

main90178-14012¥210

9017905060

main90179-05060¥70

9017906104

main90179-06104¥70

9017908241

main90179-08241¥80

9018906066

main90189-06066¥80

9046707214

main90467-07214¥70

9046709051

main90467-09051¥120

9046714053

main90467-14053¥100

9046717026A0

main90467-17026A0

9046717027C0

main90467-17027C0

9048010024

main90480-10024¥100

9056111011

main90561-11011¥70

9056113003

main90561-13003¥70

9095101006

main90951-01006¥310

91673L0625

main91673-L0625¥80

61 parts on this diagram · 5 diagrams in section
