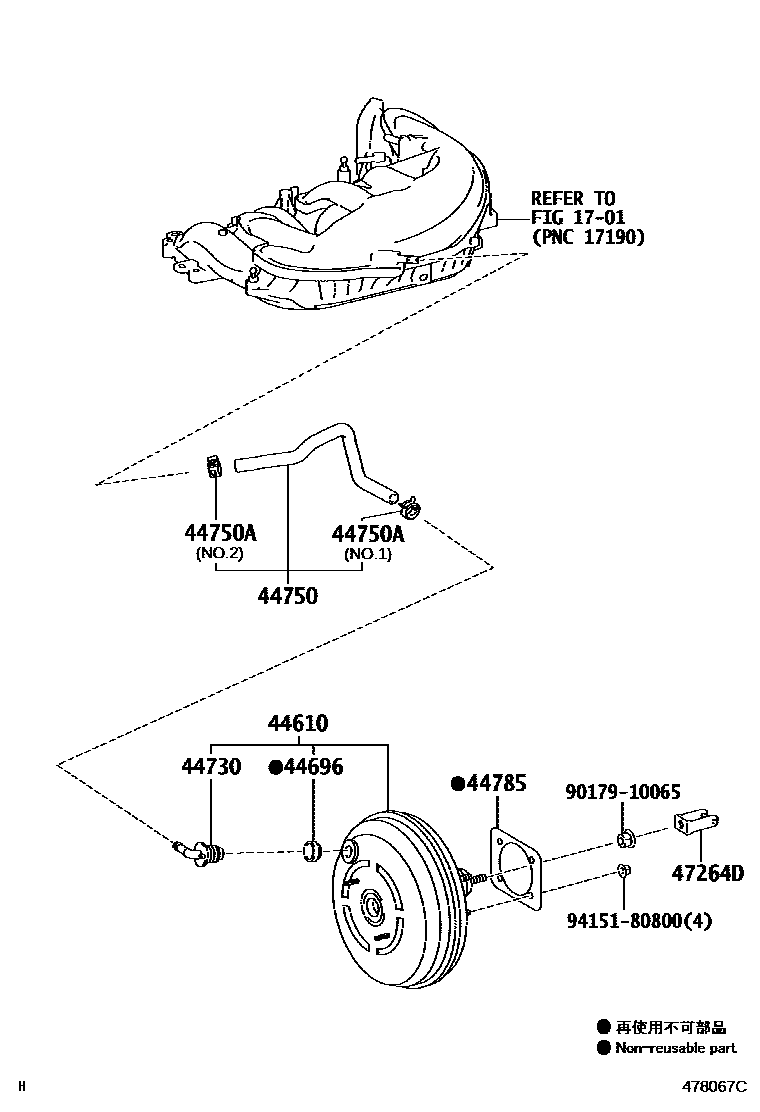

BRAKE BOOSTER & VACUUM TUBE
1701
44610BOOSTER ASSY, BRAKE
F SPORT
EGYPT SPEC
EGYPT SPEC&F SPORT
F SPORT
CHINA SPEC&WITH(STOP & START SYSTEM)
CHINA SPEC&F SPORT&WITH(STOP & START SYSTEM)
F SPORT
FRONT WHEEL BRAKE-18INCHES DISC
FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED)
FRONT WHEEL BRAKE-18INCHES DISC
F SPORT
FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED)
44696GROMMET, CHECK VALVE
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44750HOSE ASSY, VACUUM
44750ACLIP(FOR VACUUM HOSE ASSY)
NO.2
NO.1
44785GASKET, BRAKE BOOSTER
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
9017910065
main90179-10065
9415180800
main94151-80800
10 parts on this diagram · 7 diagrams in section
