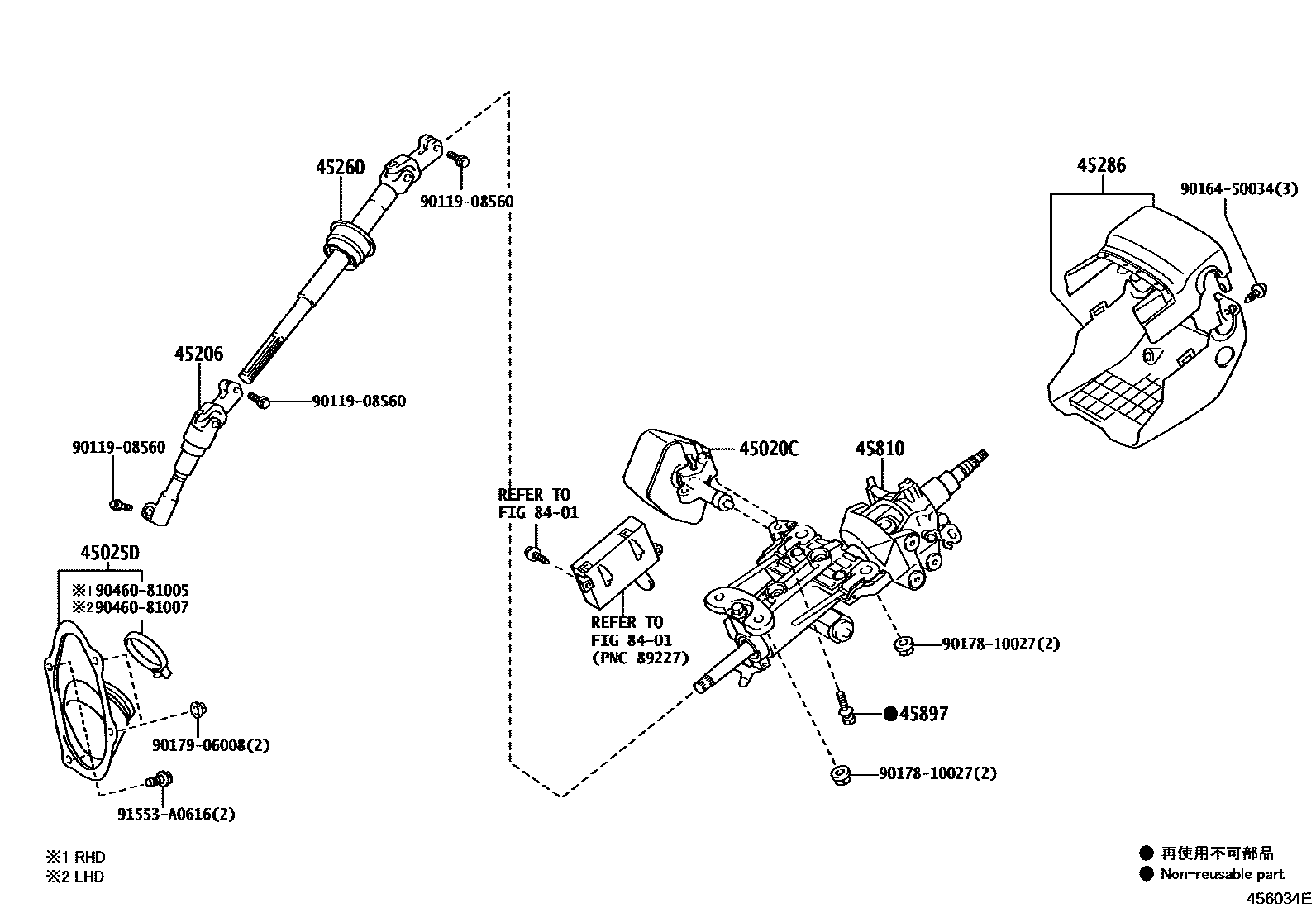

STEERING COLUMN & SHAFT

0001 1 0002 1F-SPORT OR THE CRAFTED LINE 0003 1

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-30A90iARL10,AWL10,GRL12,GWL10..GEN201201-202007

main45020-30B00iARL10,AWL10,GRL12,GWL10..ARL,GCC201809-202007

ARGENTINA SPEC

main45020-30B00iARL10,AWL10,GRL12,GWL10..ARL,GCC201809-202007

CHILE SPEC

main45020-30B00iARL10,AWL10,GRL12,GWL10..ARL,GCC201809-202007

SOUTH AFRICA SPEC

main45020-30B00iARL10,AWL10,GRL12,GWL10..ARL,GCC201809-202007

LATIN AMERICA SPEC(W/O(CHILE&ARGENTINA))

main45020-30B00iARL10,AWL10,GRL12,GWL10..LHD..GEN201809-202007

TAIWAN SPEC

main45020-30B00iARL10,AWL10,GRL12,GWL10..LHD..GEN201809-202007

BRAZIL SPEC

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-30350iARL10,GRL12..RHD201201-202007

main45025-30390iGRL10,GWL10..LHD201201-202007

main45025-30400iGRL15201201-201206

sub45025-30401

main45025-30401iGRL15201207-201510

main45025-30440iAWL10,GWL10..RHD201309-202007

main45025-30450iAWL10,GWL10..LHD201309-202007

45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT

main45206-30170iGRL10..RHD..8FC;AWL10,GRL11,GWL10..RHD201201-201510

main45206-30180iGRL10..LHD..8FC;AWL10,GRL11,GWL10..LHD201201-201510

main45206-30190iARL10,AWL10,GRL12,GWL10..RHD201510-202007

main45206-30200iARL10,AWL10,GRL12,GWL10..LHD201510-202007

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-30220iARL10,AWL10,GRL12,GWL10201201-202007

main45260-30230iGRL15201201-201510

45286COVER, STEERING COLUMN

main45286-3A915-C0iGRL10..8FC;AWL10,GRL11,GWL10201201-201510

BLACK,TRIM0#,1#,2#,3#,4#,5#

sub45286-3A919

main45286-3A915-C0iGRL15201201-201510

BLACK,TRIM0#,1#,2#,4#,5#

sub45286-3A919

main45286-3A919-C0iARL10,GRL12,GWL10..GCC201510-202007

BLACK,TRIM0#,1#,2#,3#,4#,5#

main45286-3A919-C0iARL10,GRL12,GWL10..GCC201510-202007

BLACK,TRIM0#,1#,2#,3#,5#,6#

45810GEAR ASSY, TILT STEERING, W/MOTOR

main45810-30230iGRL10201201-202007

45897BOLT, STEERING LOCK SET

main45897-12020iGRL10201201-202007

8401

9011908560

main90119-08560

9016450034

main90164-50034

9017810027

main90178-10027

9017906008

main90179-06008

9046081005

main90460-81005

9046081007

main90460-81007

91553A0616

main91553-A0616

15 parts on this diagram · 3 diagrams in section
